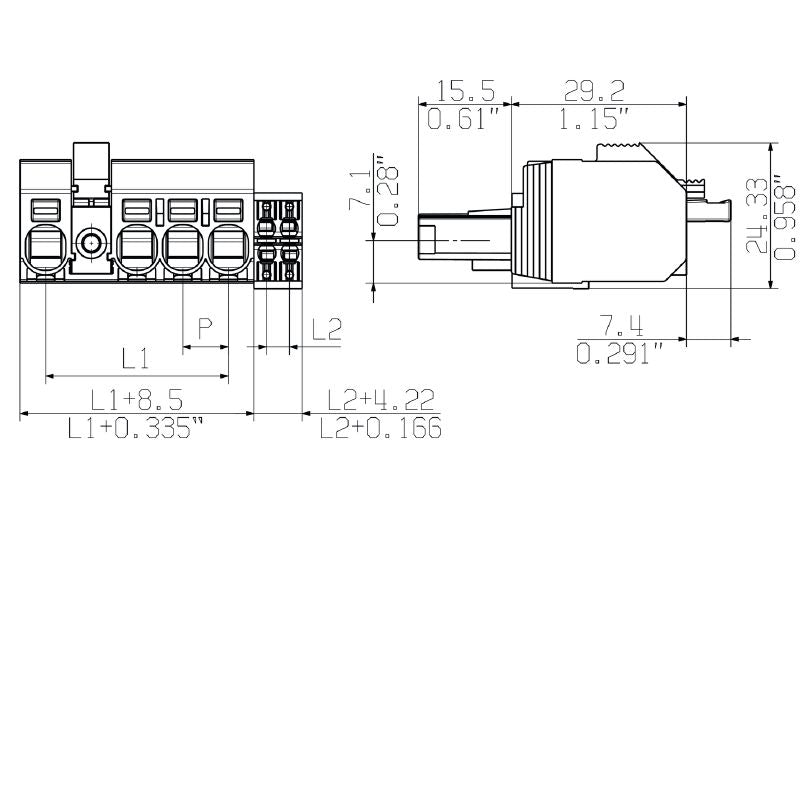

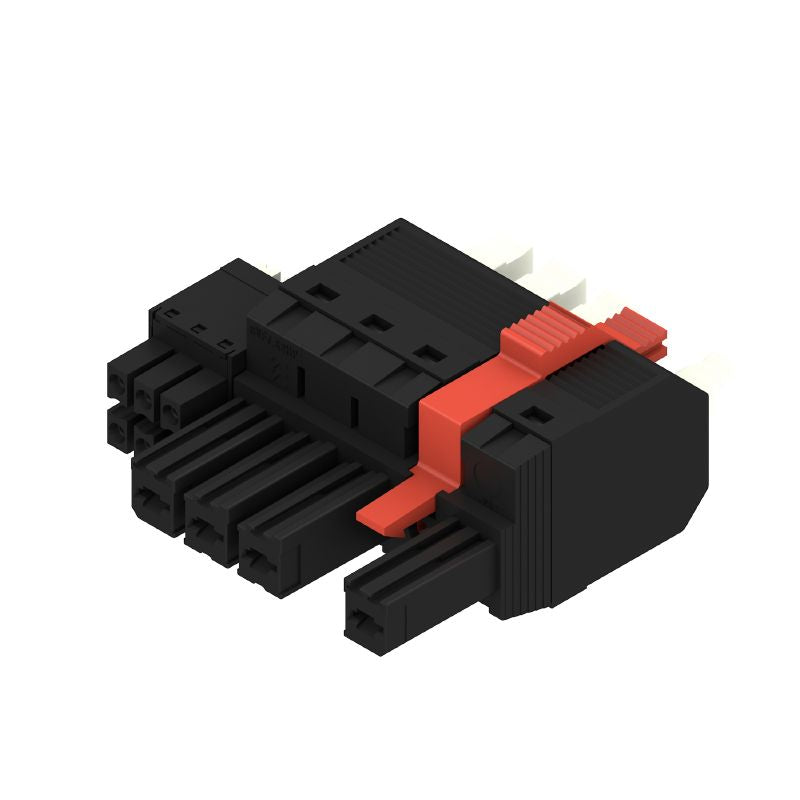

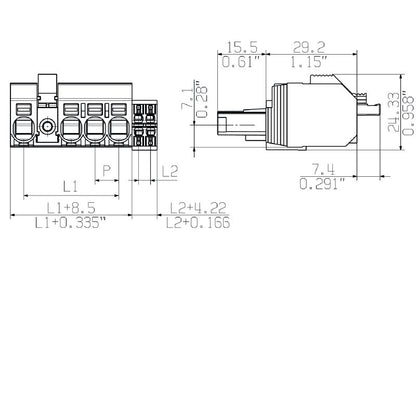

2628790000 - 7.62mm 4-Pole PCB Connector, 180° Orientation, Push In Design (Pack of 36)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile PCB plug-in connector specifically designed for female applications, boasting a 762 mm pitch and featuring 4 poles The connector is oriented at 180° and employs a PUSH IN mechanism with an actuator, allowing for effortless wire connections with a maximum clamping range of 6 mm² This product is suited for integration into boxes and is conveniently packaged with 36 units per order.

Complying with IEC standards, it supports a voltage of 1000 V and a current rating of 38 A Under UL standards, it's rated for 600 V with a current capacity of 35 A for compatible wire gauges.

Features and Benefits:

•Four pole connector with 180° conductor outlet direction.

•Compact design suitable for PCB plug-in applications.

•PUSH IN connection method facilitates easier and faster installations.

•Touch-safe protection compliant with DIN VDE standards.

•RoHS compliance ensures environmental safety.

•Compatible with fine-wired conductors ranging from 0.5 mm² to 6 mm².

•Capable of withstanding operating temperatures up to 125 °C.

Specifications:
