2628980000 - 5-Pole 7.62mm PCB Connector with Push-In Mechanism (Pack of 30)

2628980000 - 5-Pole 7.62mm PCB Connector with Push-In Mechanism (Pack of 30)

SKU: SKU: 2628980000   Download PDF

Select a Variant:
  • 2628980000 - 5-Pole 7.62mm PCB Connector with Push-In Mechanism (Pack of 30)
Qty:
Regular price Now $432.24   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $432.24 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

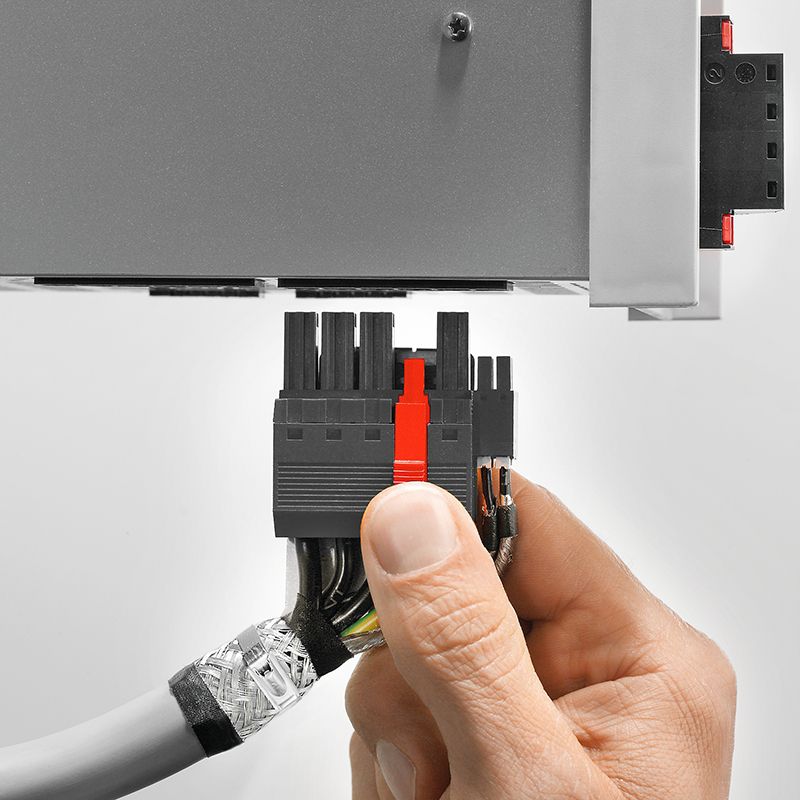

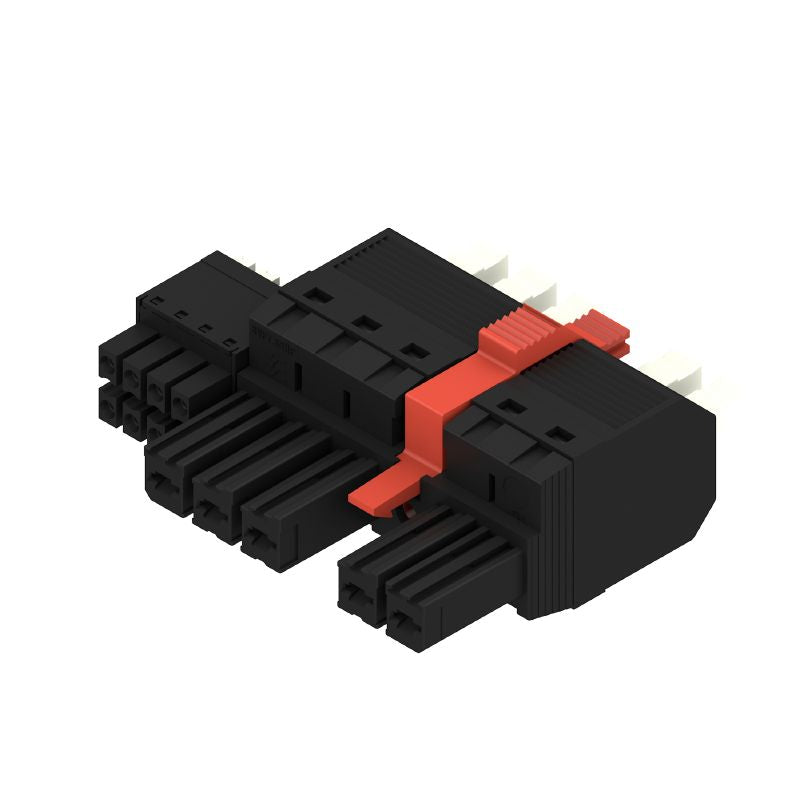

Introducing a versatile PCB plug-in connector tailored for female plugs, featuring a 762 mm pitch and 5 poles arranged in a 180° layout This connector is equipped with a user-friendly push-in mechanism along with an actuator, allowing for efficient connectivity and a maximum clamping capacity of 6 mm² Each unit is conveniently packaged in a sturdy box, making it an excellent choice for your electronic assembly needs.

Features and Benefits:

    •RoHS compliant.

    •Touch-safe protection according to DIN VDE 57 106.

    •Can be coded.

    •Net weight is 37.257 g.

    •Insulating material is PA GF.

    •Color is black according to RAL 9011.

Specifications:

 IEC Rating 1000 V / 38 A / 0.5 - 6 mm²
 UL Rating 600 V / 35 A / AWG 24 - AWG 8
 Pitch in mm 7.62
 Number of Poles 5
 Conductor Outlet Direction 180°
 Rated Cross-Section 6 mm²
 Volume Resistance 4.50 mΩ
 Plugging Cycles 25
 Storage Temperature Min -40 °C
 Storage Temperature Max 70 °C

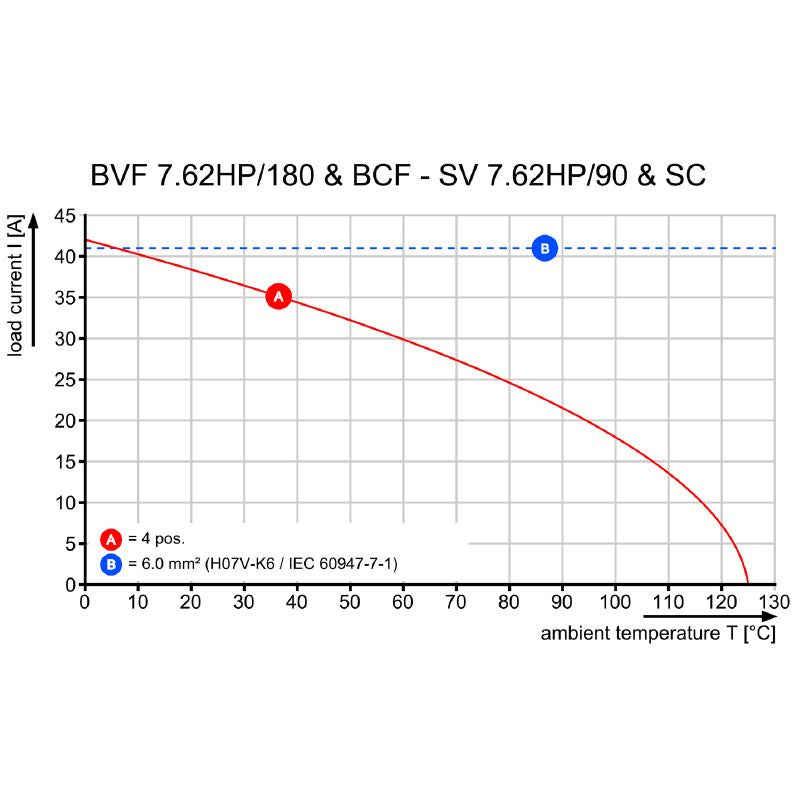

 Operating Temperature Max 125 °C
 Clamping Range Min 0.5 mm²
 Clamping Range Max 6 mm²
