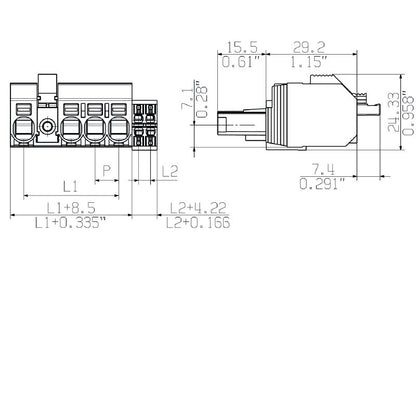

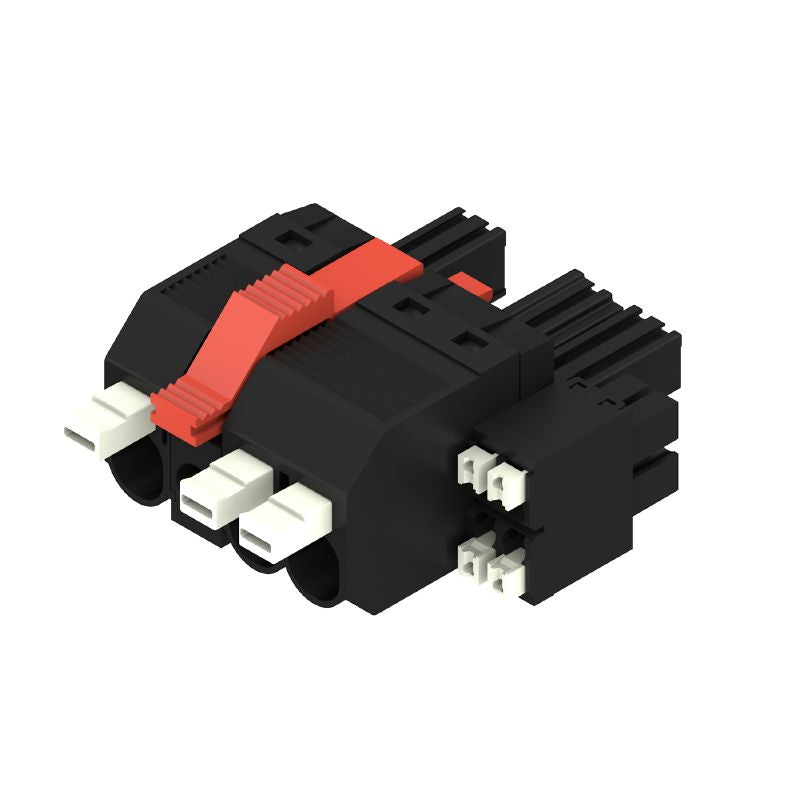

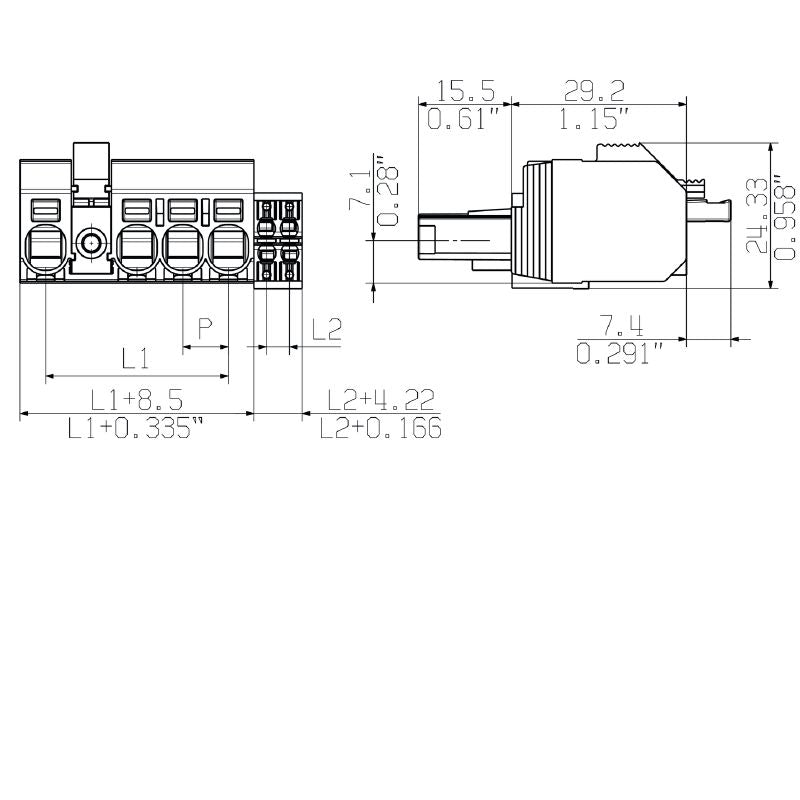

2628720000 - 7.62mm 3-Pole Female PCB Connector, 180° Orientation (Pack of 48)

2628720000 - 7.62mm 3-Pole Female PCB Connector, 180° Orientation (Pack of 48)

SKU: SKU: 2628720000   Download PDF

Select a Variant:
  • 2628720000 - 7.62mm 3-Pole Female PCB Connector, 180° Orientation (Pack of 48)
Qty:
Regular price Now $391.27   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $391.27 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile PCB plug-in connector that operates as a female connector, featuring a 762 mm pitch and a 180° alignment with three poles This connector utilizes a PUSH IN mechanism with an actuator, designed to accommodate a maximum clamping range of 6 mm² wires Packaged securely in a box, it complies with both UL and RoHS standards, ensuring safety and reliability It is compatible with a variety of wire connection methods and includes touch protection to prevent accidental finger contact.

Designed to support voltages up to 1000 V and currents of up to 38 A, this connector is an excellent choice for your wiring needs.

Features and Benefits:

    •PUSH IN connection method with actuator.

    •Touch protection to prevent finger contact.

    •Compatible with various conductor sizes.

    •Suitable for both flexible and solid conductors.

    •Rated voltage is compliant with IEC standards.

    •UL compliant for safety assurance.

Specifications:

 Number of poles 3
 Pitch 7.62 mm
 Rated voltage (IEC) 1000 V
 Rated current (IEC) 38 A
 Clamping range 0.5 to 6 mm²
 Insulating material PA GF
 Operating temperature, max 125 °C
 Storage temperature, min -40 °C
 Storage temperature, max 70 °C
 Volume resistance 4.50 mΩ
