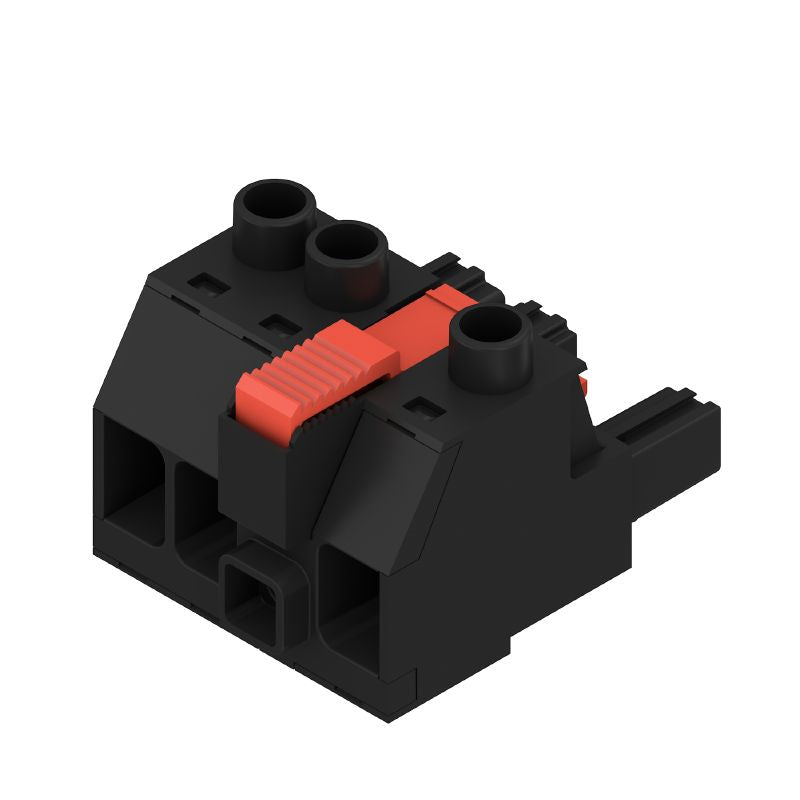

2627300000 - 10.16mm Female PCB Connector, 3-Pole, 180° Angle (Pack of 21)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile PCB plug-in connector with a female plug configuration and a 1016 mm pitch This connector is designed with three poles set at a 180° angle, offering a robust clamping yoke connection that accommodates a maximum clamping range of 16 mm² It meets RoHS standards and is rated for an IEC voltage of 1000 V at 783 A, covering wire sizes from 02 to 16 mm² Additionally, it boasts a UL rating of 600 V at 60 A for AWG sizes ranging from 22 to 4.

This connector is part of the OMNIMATE Power series BU/SU 1016IT, ensuring reliable performance for your electrical needs.

Features and Benefits:

•Touch-safe protection according to DIN VDE 57 106.

•Touch-safe protection according to DIN VDE 0470 with an IP 20 rating.

•Can be coded for connection safety.

•Utilizes a clamping yoke connection for secure wire connections.

•Designed for multiple wire connection types, including flexible and solid wires.

•Recommended for usage in environments with operating temperatures up to 130 °C.

Specifications:
