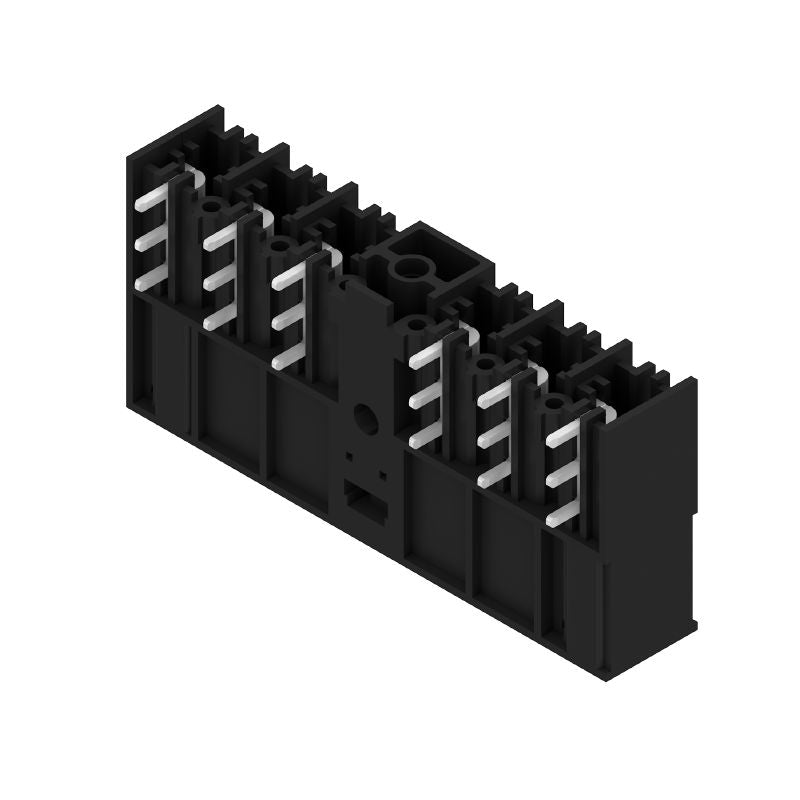

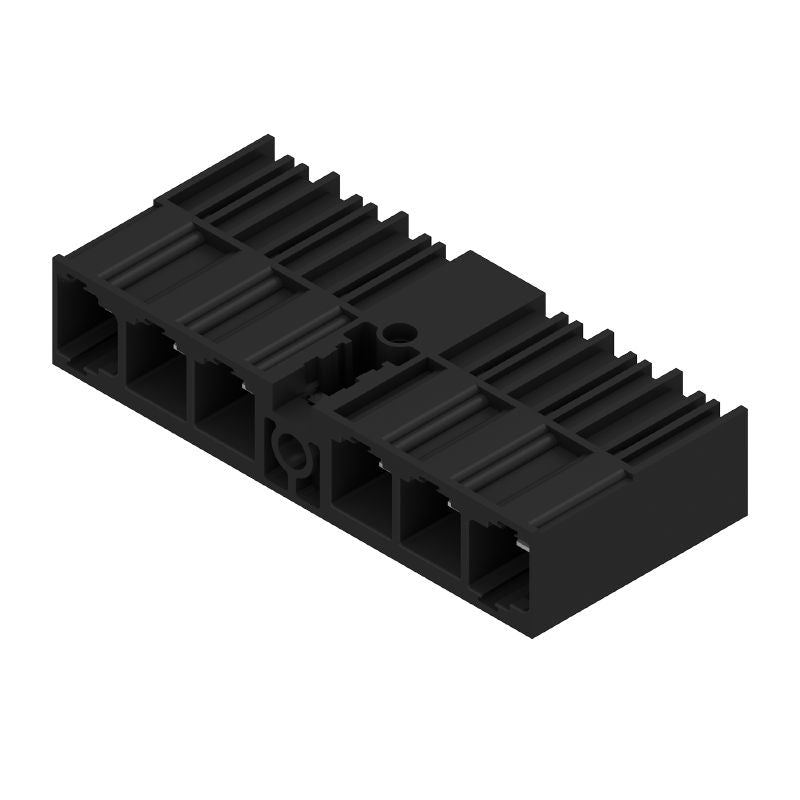

2597250000 - 10.16mm 6-Pole Male Header Connector, Black, 90° Elbow (Pack of 24)

2597250000 - 10.16mm 6-Pole Male Header Connector, Black, 90° Elbow (Pack of 24)

SKU: SKU: 2597250000   Download PDF

Select a Variant:
  • 2597250000 - 10.16mm 6-Pole Male Header Connector, Black, 90° Elbow (Pack of 24)
Qty:
Regular price Now $231.54   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $231.54 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

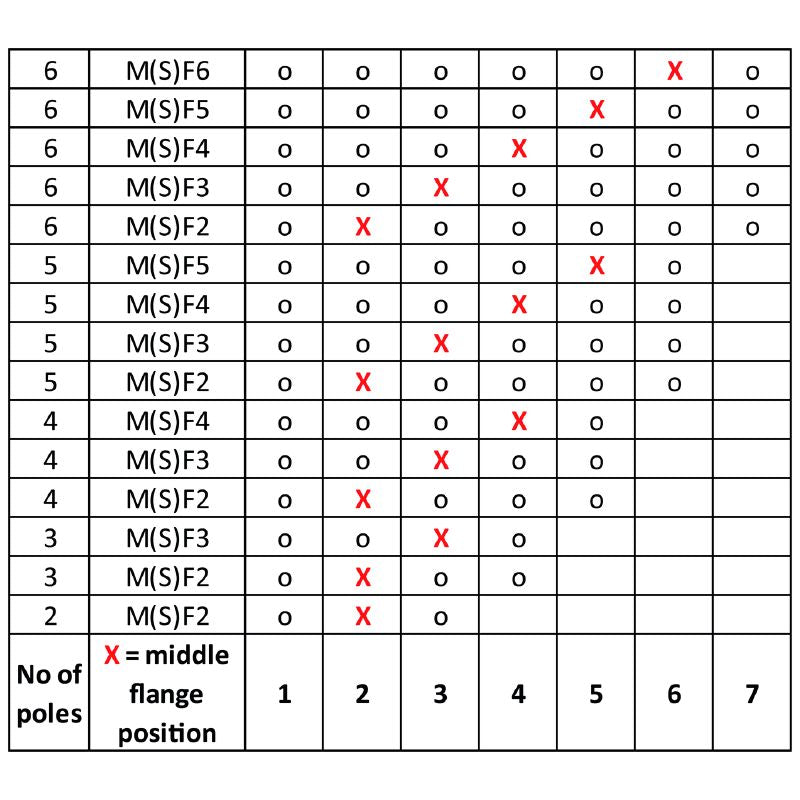

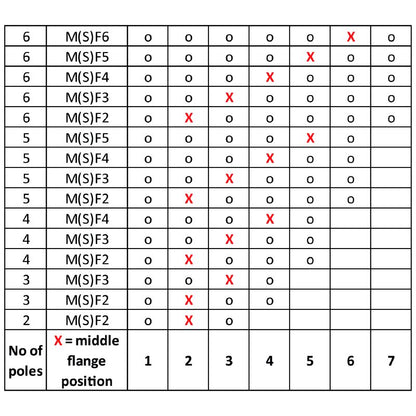

Introducing a male header PCB plug-in connector specifically engineered for closed side applications This connector features a central flange and offers a THT (thru-hole technology) solder connection With a pitch measurement of 1016 mm, it encompasses six poles and boasts a 90° outgoing elbow for optimal fitting The solder pin has a length of 35 mm and is silver-plated, finished in an elegant black color to enhance its durability and performance.

This component is essential for reliable connectivity in various electronic projects.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Safe from finger touch when plugged.

    •IP20 protection when plugged.

    •Can be coded.

Specifications:

 IEC Rating 1000 V / 78.3 A
 UL Rating 300 V / 60 A
 Pitch in mm 10.16 mm
 Number of poles 6
 Number of solder pins per pole 3
 Solder pin length 3.5 mm
 Material PBT GF
 Color black
 Operating temperature max 120 °C
 Storage temperature min -40 °C
 Rated voltage for pollution degree II/2 1000 V
 Rated current min (Tu=20°C) 78.3 A
 Rated current max (Tu=20°C) 67.9 A
 Volume resistance 2.00 mΩ
