2529790000 - 7.62mm Tinned Male Header Connector with 3 Poles (Pack of 36)

2529790000 - 7.62mm Tinned Male Header Connector with 3 Poles (Pack of 36)

SKU: SKU: 2529790000   Download PDF

Select a Variant:
  • 2529790000 - 7.62mm Tinned Male Header Connector with 3 Poles (Pack of 36)
Qty:
Regular price Now $236.46   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $236.46 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a reliable PCB plug-in connector, tailored for male header uses This connector is crafted with a closed side and a middle flange, providing versatility with both Through-Hole Technology (THT) and Through-Hole Reflow (THR) solder connections It features a compact width of 762 mm, accommodating 3 poles arranged at a precise 90° angle With solder pins measuring 26 mm in length and finished with durable tinned contacts in an elegant black color, this connector is both functional and stylish.

It comes neatly packaged in a box, ensuring protection during storage.

Features and Benefits:

    •RoHS compliant without exemptions.

    •Touch-safe protection according to DIN VDE 57 106.

    •Can be coded for secure connections.

    •Board connection applications.

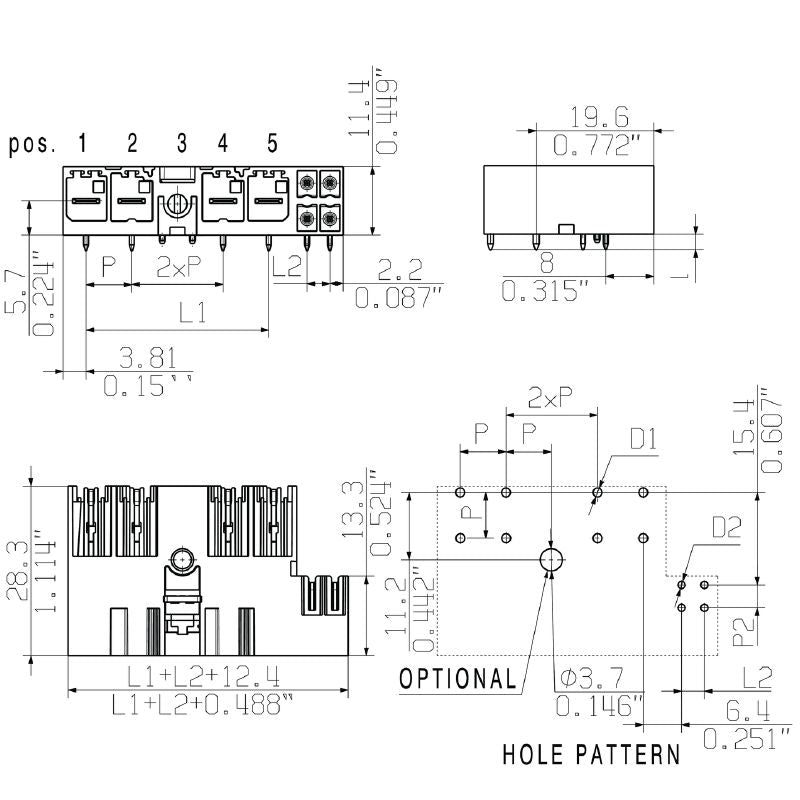

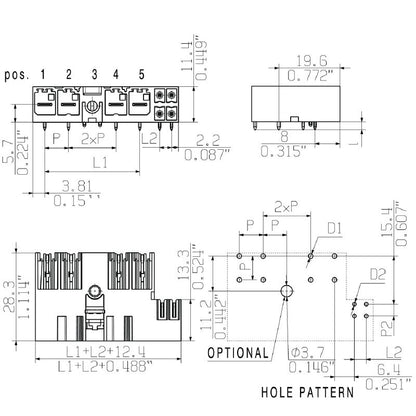

Specifications:

 IEC Rated Voltage 1000 V
 IEC Rated Current 41 A
 UL Rated Voltage 300 V
 UL Rated Current 33 A
 Pitch 7.62 mm
 Number of Poles 3
 Solder Pin Length 2.6 mm
 Depth 28.3 mm
 Height 14 mm
 Width 46.69 mm
 Storage Temperature -40 to 70 °C
 Operating Temperature -50 to 130 °C
 Creepage Distance 9.6 mm
 Clearance Distance 6.9 mm
 Volume Resistance 2.00 mΩ
