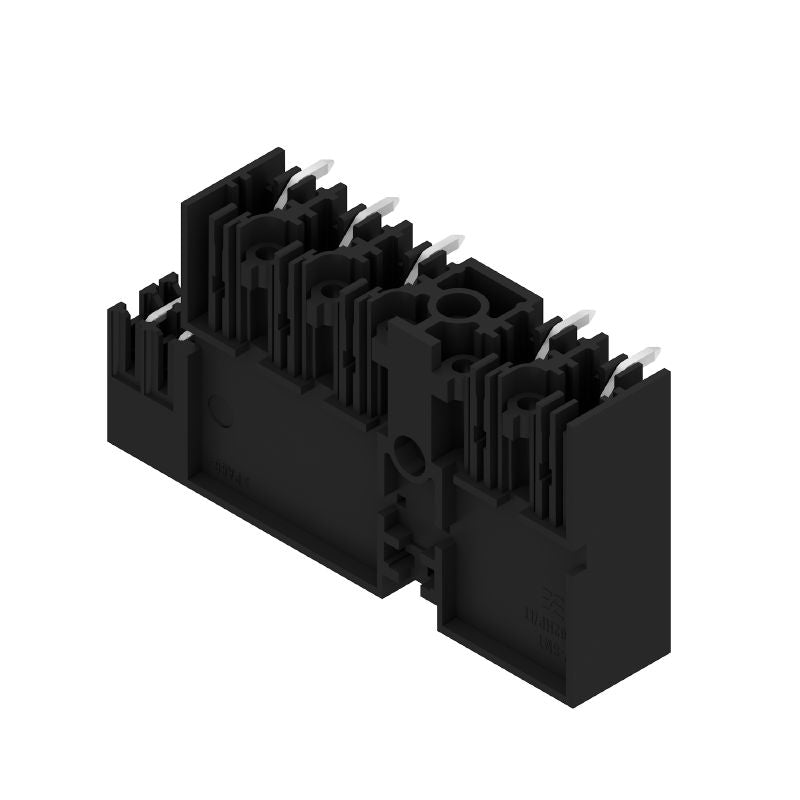

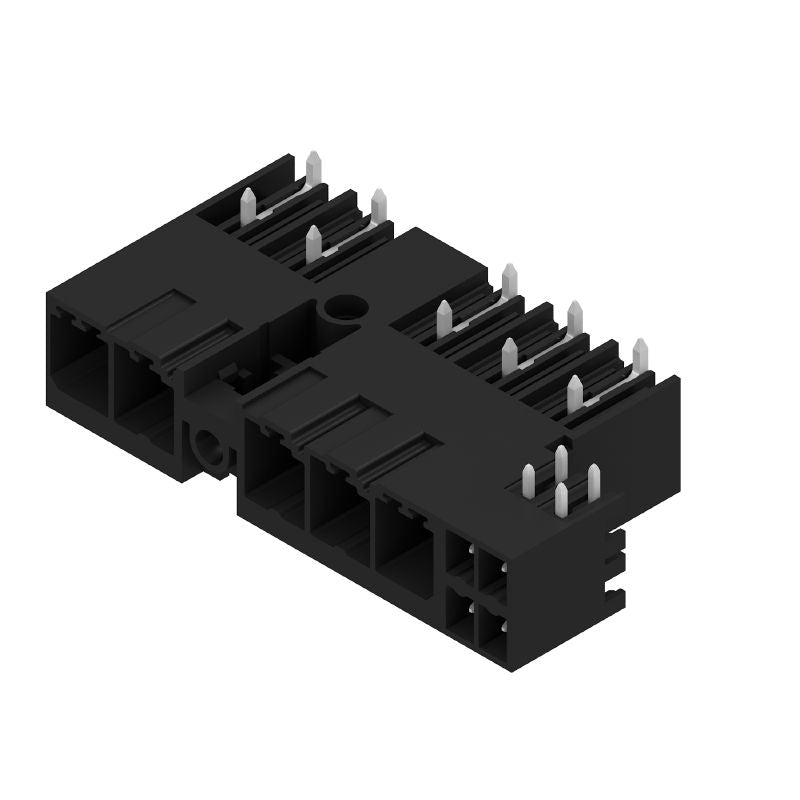

2529480000 - 7.62mm Tinned Male Header Connector with 5 Poles (Pack of 30)

2529480000 - 7.62mm Tinned Male Header Connector with 5 Poles (Pack of 30)

SKU: SKU: 2529480000   Download PDF

Select a Variant:
  • 2529480000 - 7.62mm Tinned Male Header Connector with 5 Poles (Pack of 30)
Qty:
Regular price Now $210.02   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $210.02 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile PCB plug-in connector, equipped with a male header that features a closed side and middle flange This connector is suitable for both through-hole technology (THT) and through-hole reflow (THR) soldering methods It boasts a pitch of 762 mm and includes five pins arranged at a 270° angle Each solder pin extends to a length of 26 mm The entire assembly is tinned and conveniently packaged in a black box, ensuring safe storage and easy access.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Touch-safe protection according to DIN VDE regulations.

    •Suitable for board connections with a pitch of 7.62 mm.

    •Connector can be coded for secure engagement.

Specifications:

 IEC Voltage Rating 1000 V / 41 A
 UL Voltage Rating 300 V / 33 A

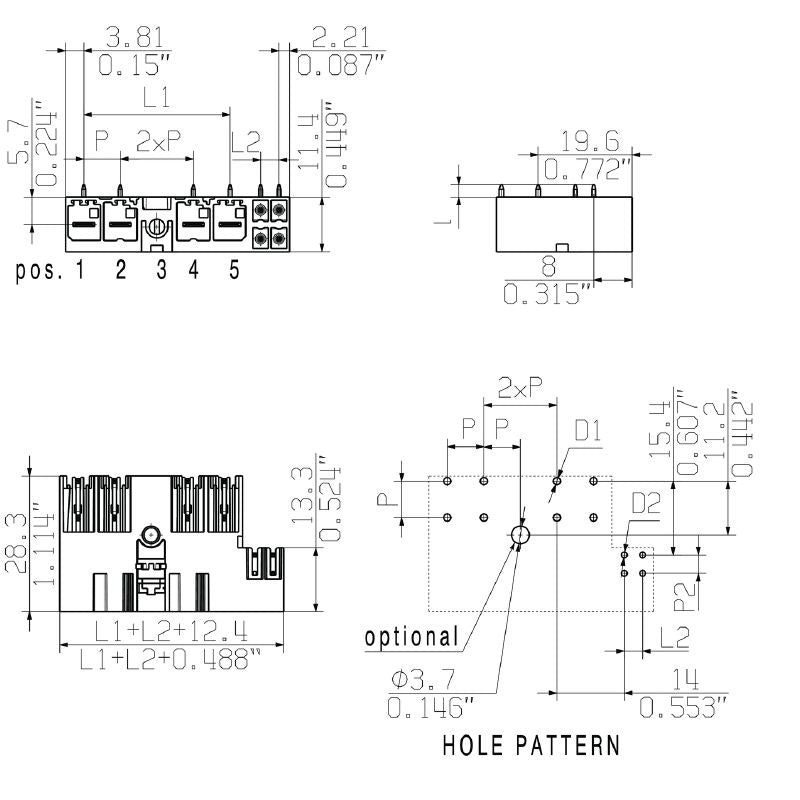

 Depth 28.3 mm
 Height 14 mm
 Width 54.31 mm
 Number of poles 5
 Pitch 7.62 mm
 Rated voltage for surge voltage class II/2 1000 V
 Operating temperature range -50 °C to 130 °C
 Storage temperature range -40 °C to 70 °C
 Material PA 9T
 Insulating material group I
 Creepage distance, min. 9.6 mm
 Clearance distance, min. 6.9 mm
