2499350000 - 7.62mm PCB Male Header Connector, 4-Pole, 270° Angle (Pack of 60)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

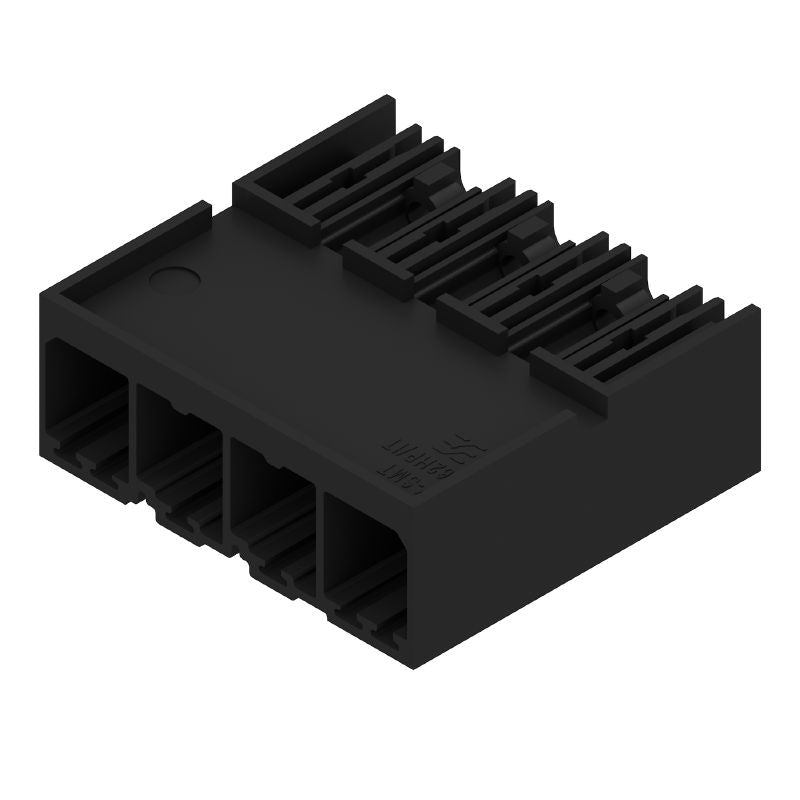

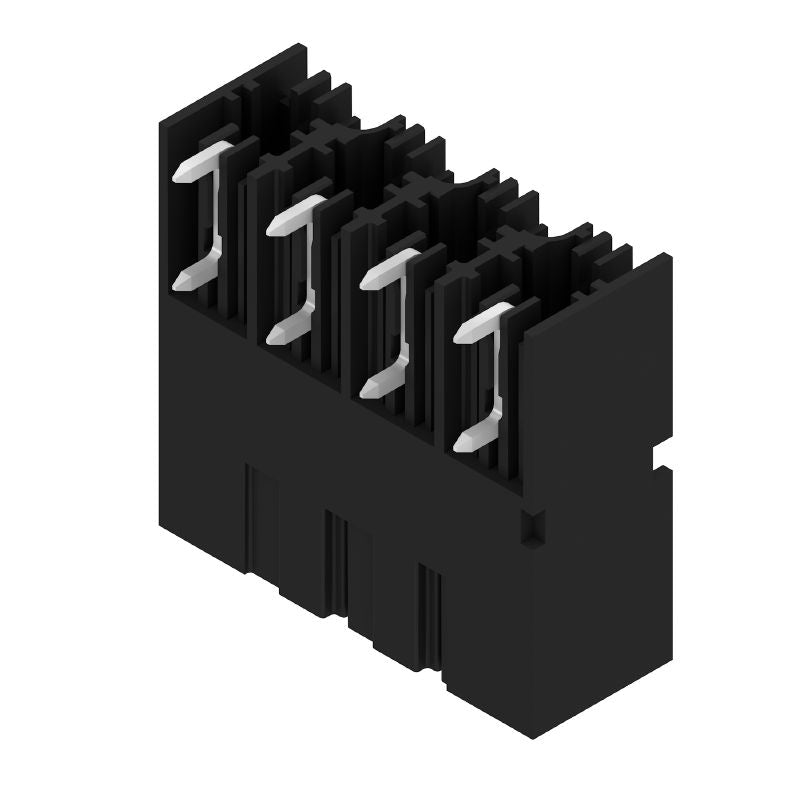

Introducing the SV-SMT 762HP/04/270G 26SN BK BX connector, an expertly engineered PCB male header designed for both through-hole and surface-mount soldering With a 762 mm pitch, this connector features four poles arranged at a 270° angle The solder pins measure 26 mm in length and come with a sleek tinned black finish Ideal for various electronic applications, this component is also RoHS compliant, ensuring it adheres to environmental standards.

Equip your projects with reliable connectivity and robust performance.

Features and Benefits:

•RoHS compliant without exemption.

•Touch-safe protection follows DIN VDE standards.

•Rated current of 41 A at 20°C.

•Maximum rated voltage of 1,000 V.

•Low volume resistance of 2.00 mΩ.

•Designed for a pitch of 7.62 mm.

•Solder pin dimensions of 0.8 x 1.0 mm.

•Flammability rating of UL 94 V-0.

•Material includes PA 9T insulating material and Cu-alloy for contacts.

Specifications:
