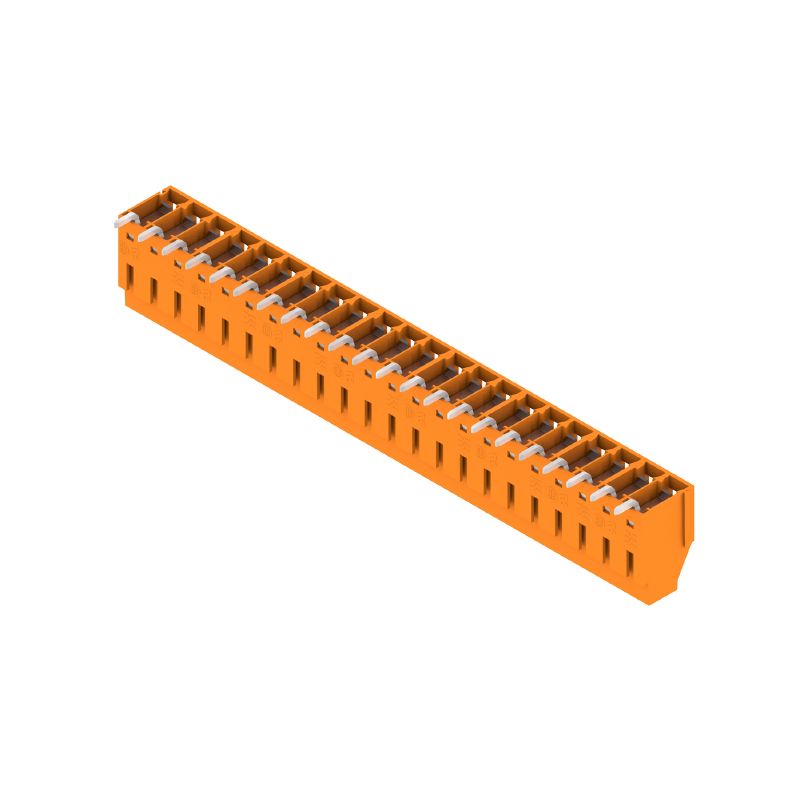

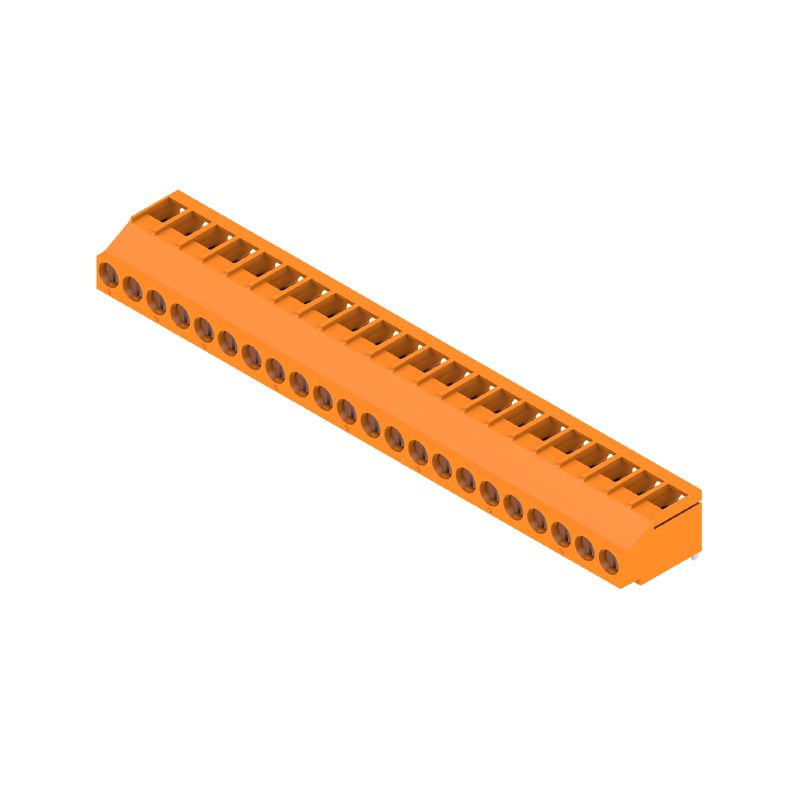

2429700000 - 5.00mm PCB Terminal, 22 Poles, 180° Orientation (Pack of 12)

2429700000 - 5.00mm PCB Terminal, 22 Poles, 180° Orientation (Pack of 12)

SKU: SKU: 2429700000   Download PDF

Select a Variant:
  • 2429700000 - 5.00mm PCB Terminal, 22 Poles, 180° Orientation (Pack of 12)
Qty:
Regular price Now $123.86   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $123.86 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing our precision-engineered printed circuit board terminals featuring a 500 mm pitch and accommodating 22 poles in a convenient 180° orientation Each terminal is designed with a solder pin length of 32 mm, finished in a vibrant orange for added visibility This model utilizes a clamping yoke connection, capable of accommodating a maximum clamping range of 6 mm², ensuring secure and reliable connections for your electronic projects.

Features and Benefits:

    •Clamping yoke connection.

    •WireReady property.

    •THT solder connection.

    •Touch-safe protection according to DIN VDE 0470.

    •Compliant with RoHS.

    •Safe from finger touch.

Specifications:

 Number of poles 22
 Solder pin length 3.2 mm
 Clamping range max 6 mm²
 Rated voltage 500 V / 300 V
 Rated current 32.5 A / 20 A
 Wire connection method Clamping yoke connection
 Pitch 5 mm

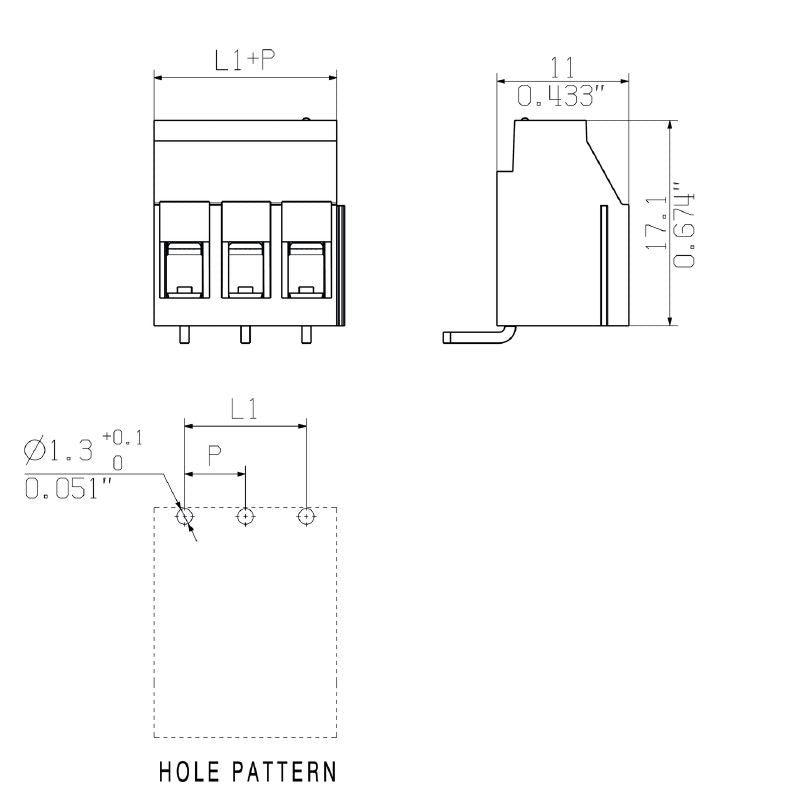

 Dimensions 17.1 mm x 14.2 mm x 110 mm
 Net weight 31.79 g
 Temperature range (operating) -50 °C to 120 °C
 Material Wemid (PA)
 Protection degree IP20
 Storage temperature min/max -40 °C to 70 °C
