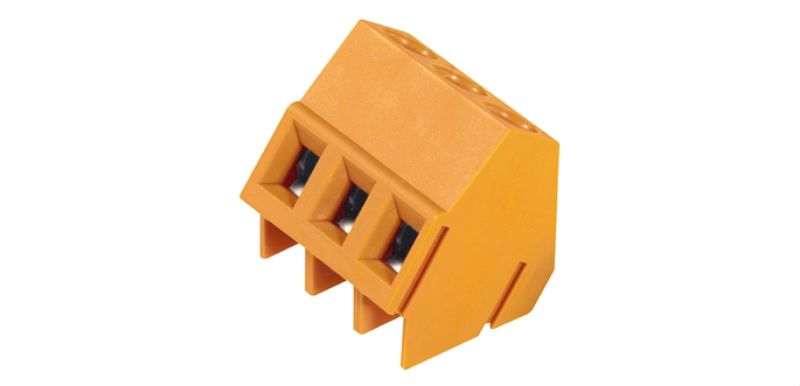

2010010000 - 3-Pole 5.08mm PCB Terminal with 135° Angle and Tinned Pins (Pack of 500)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Elevate your circuit board projects with these reliable printed circuit board terminals Each terminal features a 508 mm pitch and includes 3 poles arranged at a convenient 135° angle The solder pins, measuring 35 mm in length and finished with a tinned coating, come in a vibrant orange hue Designed for versatility, these terminals use a clamping yoke connection, capable of accommodating a maximum clamping range of 2.

5 mm² Perfect for various electronic applications, they combine functionality with a durable design.

Features and Benefits:

•RoHS compliant without exemption.

•General ordering data: Order No. 2010010000, GTIN (EAN) 4050118397031, qty 500.

•Environmental Product Compliance: No SVHC above 0.1 wt%.

•Product family: OMNIMATE Signal - series LM.

•Wire connection method: Clamping yoke connection.

•Mounting onto the PCB: THT solder connection.

•Size parameters: depth 13.9 mm, height 19 mm, width 15.79 mm.

•Touch-safe protection according to DIN VDE 0470: IP 20.

•Insulating material: Wemid (PA), Color: orange, RAL 2000.

•UL 94 flammability rating: V-0.

Specifications:
