1980500000 - 7.62mm 4-Pole PCB Plug-In Connector, 180° Orientation (Pack of 100)

1980500000 - 7.62mm 4-Pole PCB Plug-In Connector, 180° Orientation (Pack of 100)

SKU: SKU: 1980500000   Download PDF

Select a Variant:
  • 1980500000 - 7.62mm 4-Pole PCB Plug-In Connector, 180° Orientation (Pack of 100)
Qty:
Regular price Now $455.46   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $455.46 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the BLZ 762HP/04/180 SN OR BX, a high-quality female plug-in connector perfect for PCB applications With a pitch of 762 mm and designed with 4 poles, this connector is engineered for a 180-degree orientation It includes a reliable clamping yoke connection that supports a maximum clamping range of 4 mm² Packaged conveniently in a box, this product meets RoHS compliance standards, ensuring it aligns with safety and environmental regulations.

Features and Benefits:

    •Clamping range max: 4 mm².

    •Safe from finger touch.

    •IP20 protection degree.

    •Can be coded for identification.

    •Multiple wire connection cross-sections supported.

    •Durable with passed evaluations for various tests.

    •Lightweight construction at 8.075 g.

Specifications:

 IEC Voltage Rating 630 V / 29 A / 0.2 - 4 mm²
 UL Voltage Rating 600 V / 20 A / AWG 20 - AWG 12
 Dimensions {'Depth': '23.3 mm', 'Height': '18.3 mm', 'Width': '29.76 mm'}
 Operating Temperature {'Min': '-50 °C', 'Max': '100 °C'}
 Storage Temperature {'Min': '-40 °C', 'Max': '70 °C'}
 Clamping Range {'Min': '0.08 mm²', 'Max': '4 mm²'}
 Pitch 7.62 mm

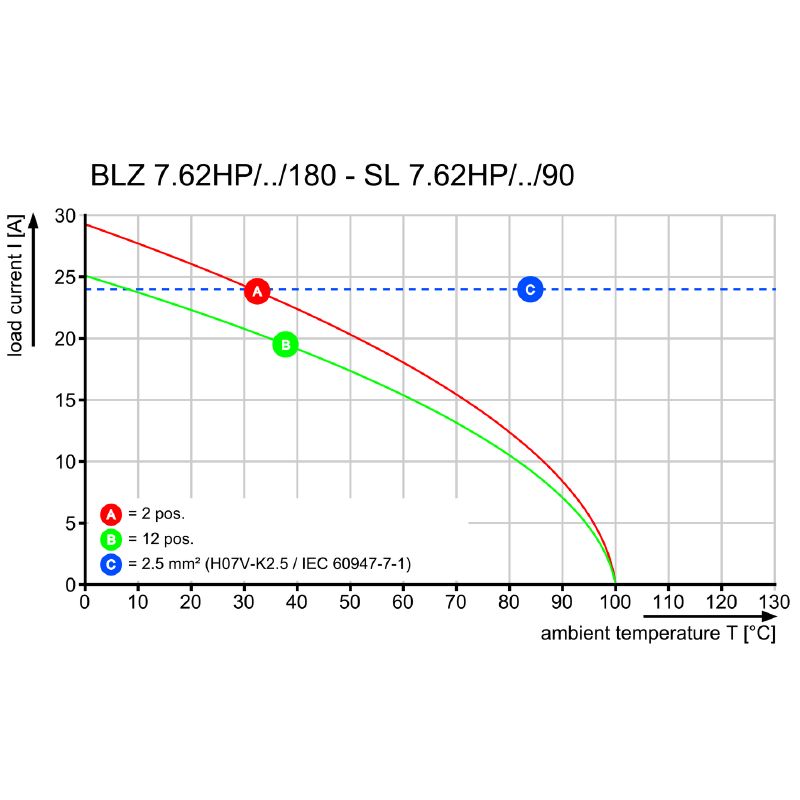

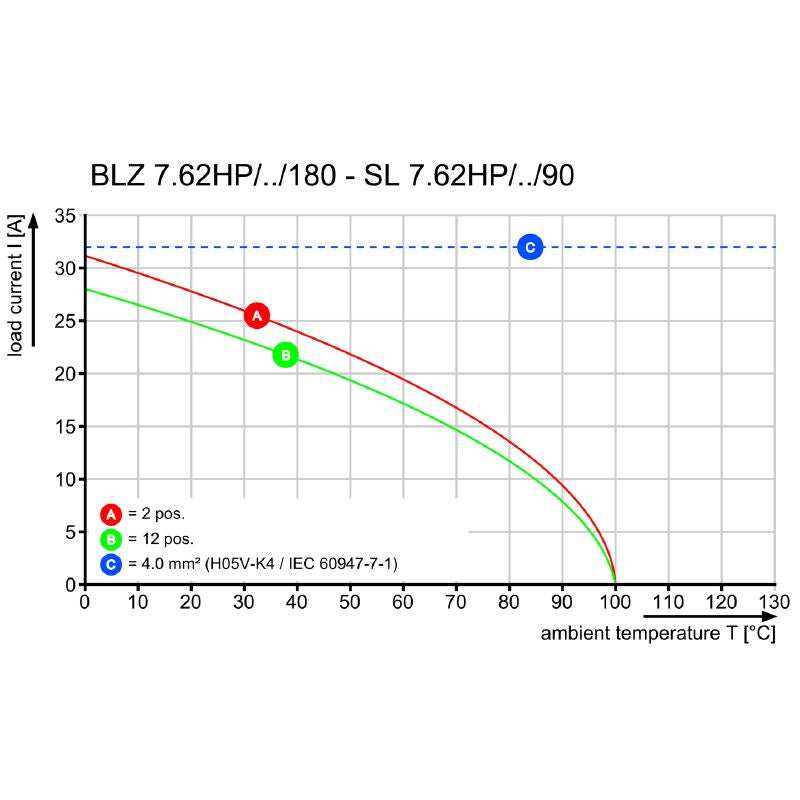

 Rated Current 29 A (min, at 20°C) / 26.5 A (max, at 20°C)
 Insulating Material PBT
 Contact Material Cu-alloy
 UL 94 Flammability Rating V-0
