Product Information

Description:

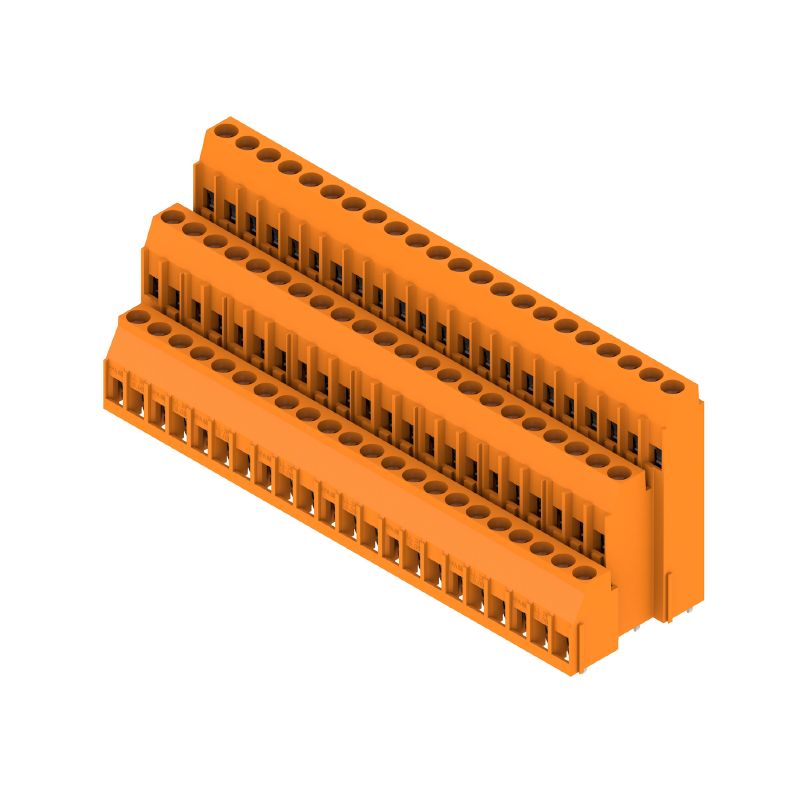

Introducing the LL3R 508 mm terminals, expertly crafted for printed circuit boards This component features 66 poles positioned at a 90° angle, with solder pins extending 32 mm The terminals boast a durable tinned surface and a vibrant orange color Designed to handle a maximum clamping range of 6 mm² with its clamping yoke connection, these terminals are also RoHS compliant, ensuring safety and environmental responsibility.

Features and Benefits:

•THT solder connection method.

•Wire connection via clamping yoke.

•Touch-safe according to DIN VDE 0470.

•Suitable for fine-wired conductors.

Specifications:

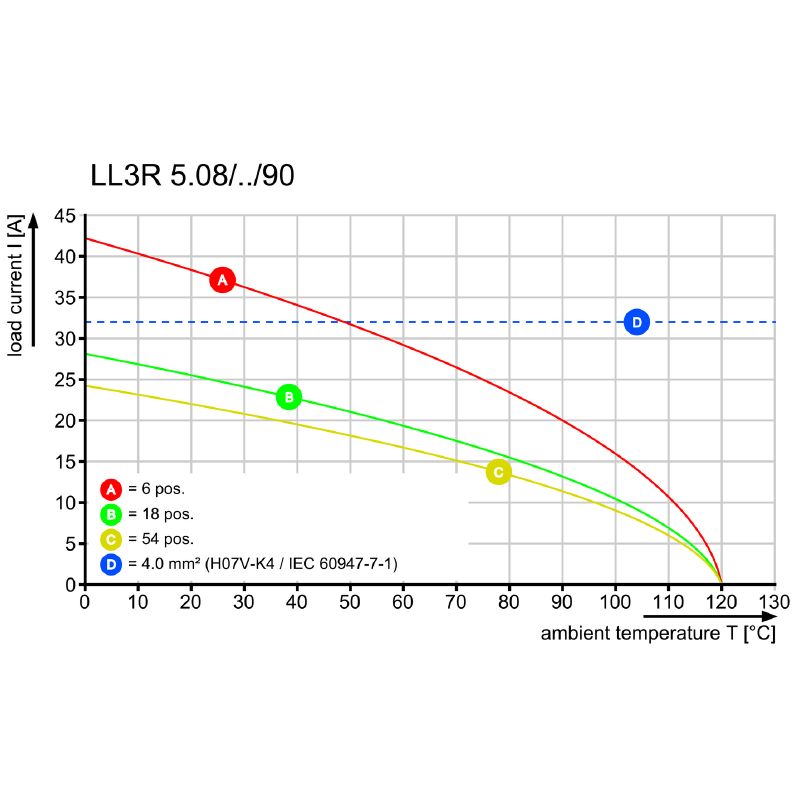

Electrical Specifications	{'Rated Voltage (IEC)': '500 V', 'Rated Current (IEC)': '32.5 A', 'Clamping Range': '0.5 - 6 mm²'}

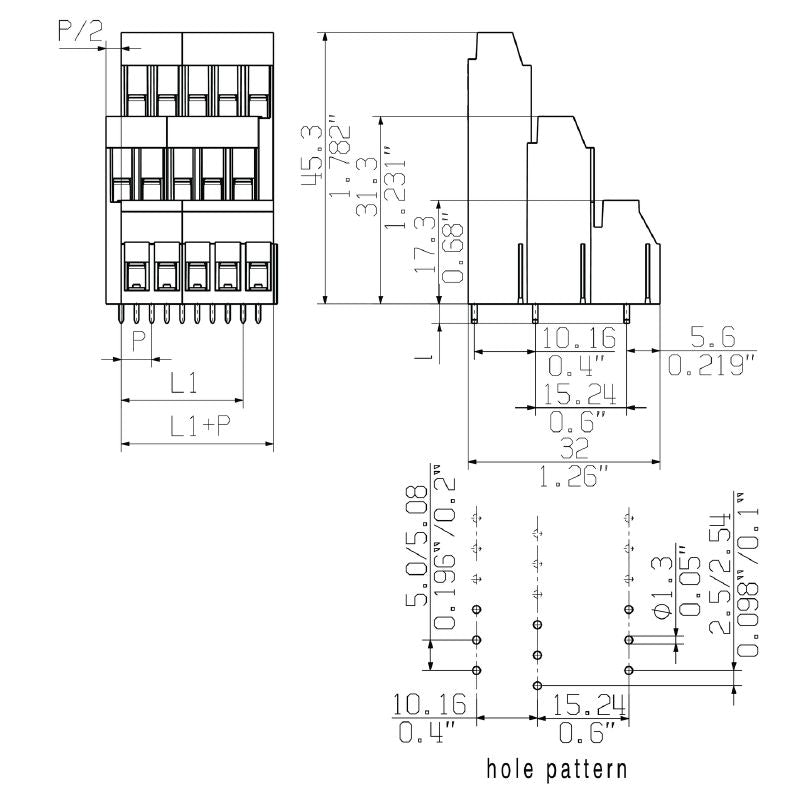

Mechanical Dimensions	{'Width': '114.95 mm', 'Height': '48.47 mm', 'Depth': '32 mm'}
Material Data	{'Insulating Material': 'Wemid (PA)', 'Contact Surface': 'tinned copper alloy'}
Temperature Ranges	{'Operating Temperature Min': '-50 °C', 'Operating Temperature Max': '120 °C', 'Storage Temperature Min': '-40 °C', 'Storage Temperature Max': '70 °C'}
Insulation Resistance	≥ 10^8 Ω
Protection Degree	IP20
Clamping Screw	M 3
Tightening Torque Min	0.5 Nm
Tightening Torque Max	0.6 Nm
