1979080000 - 5.08mm PCB Terminal, 18 Poles, 90° Angle, Tinned Finish (Pack of 25)

1979080000 - 5.08mm PCB Terminal, 18 Poles, 90° Angle, Tinned Finish (Pack of 25)

SKU: SKU: 1979080000   Download PDF

Select a Variant:
  • 1979080000 - 5.08mm PCB Terminal, 18 Poles, 90° Angle, Tinned Finish (Pack of 25)
Qty:
Regular price Now $305.40   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $305.40 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

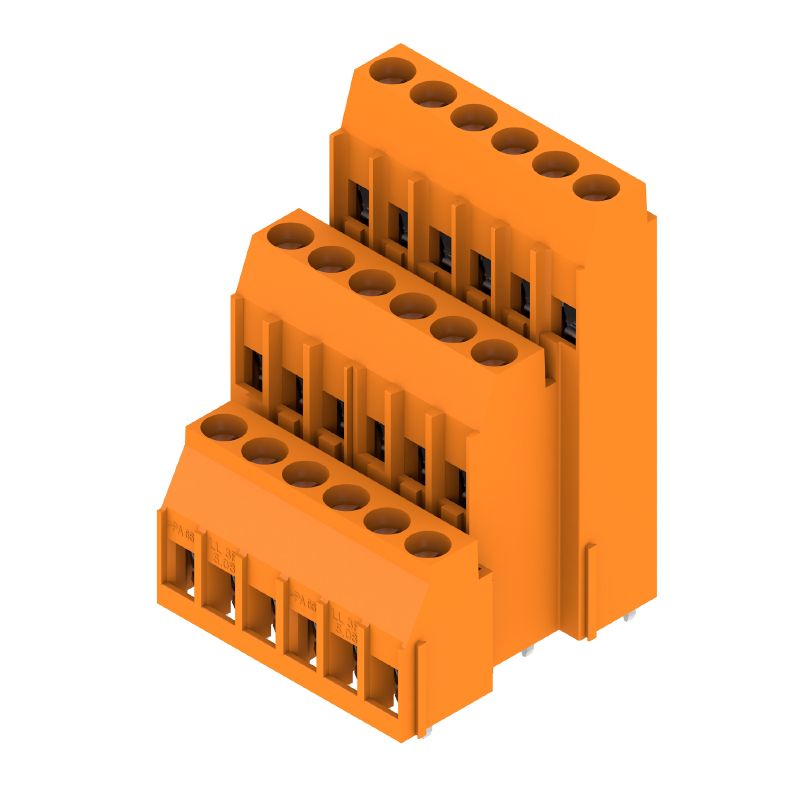

Discover the versatility of our printed circuit board terminals, featuring an efficient 508 mm pitch and 18 poles at a 90-degree connection angle Each solder pin is 32 mm long and finished with a tinned coating for reliable performance The striking orange color adds a pop of vibrancy, while the clamping yoke connection supports a maximum clamping range of 6 mm² Conveniently packaged in boxes, these terminals are perfect for your wiring needs.

Features and Benefits:

    •RoHS compliant.

    •THT solder connection.

    •WireReady property.

    •Finger-safe unplugged protection.

    •Back-of-hand-safe plugged protection.

Specifications:

 UL File Number E60693

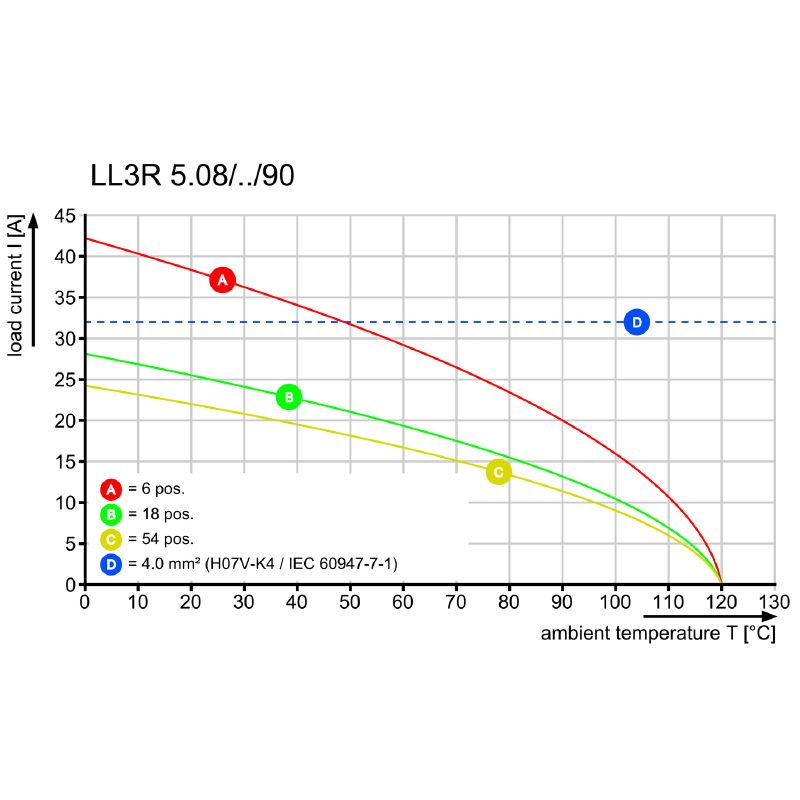

 IEC Rated Voltage 500 V / 32.5 A / 0.5 - 6 mm²
 UL Rated Voltage 300 V / 20 A / AWG 26 - AWG 12

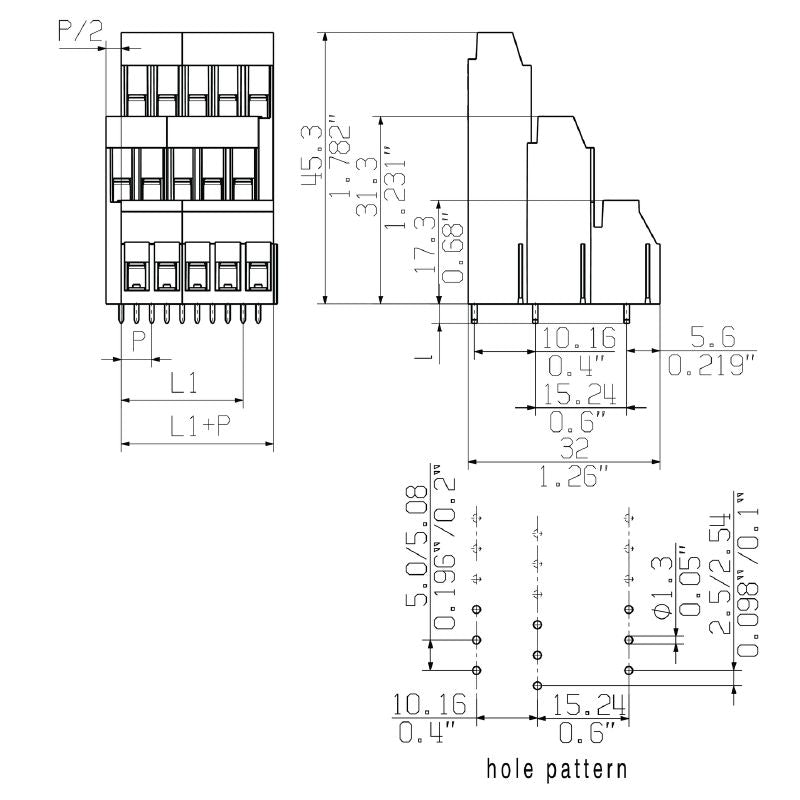

 Depth 32 mm
 Height 48.47 mm
 Width 33.67 mm
 Pitch 5.08 mm
 Number of poles 18
 Solder pin length 3.2 mm
 Stripping length 6 mm
 Protection degree IP20
 Material Wemid (PA)
 Tightening torque 0.5 - 0.6 Nm
 Operating temperature -50 °C to 120 °C
 Storage temperature -40 °C to 70 °C
