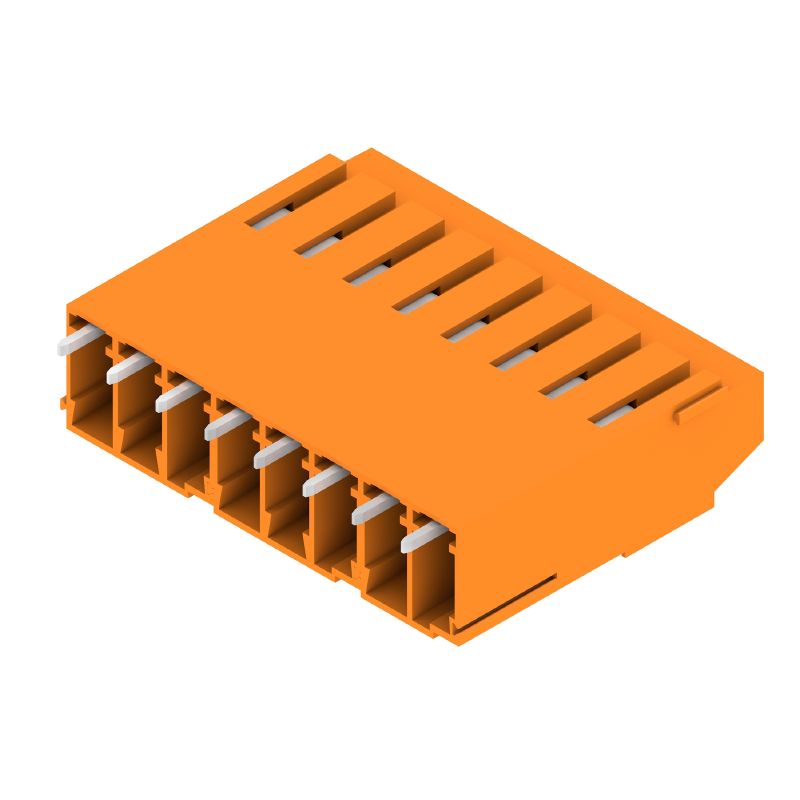

1975310000 - 8-Pole PCB Terminal, 90° Angle, 3.2mm Pin Length (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the LL1N 500/08/90 32SN OR BX terminal, designed specifically for printed circuit boards This terminal boasts an 8-pole layout and allows for a 90-degree connection angle, making it ideal for various applications With a solder pin length of 32 mm and a clamping range of up to 6 mm², it ensures secure and efficient wire management thanks to its clamping yoke connection Additionally, this terminal meets environmental regulations such as RoHS and holds multiple approvals, including a UL certification, guaranteeing its quality and reliability.

Features and Benefits:

•Solder pin length of 3.2 mm.

•Clamping range maximum of 6 mm².

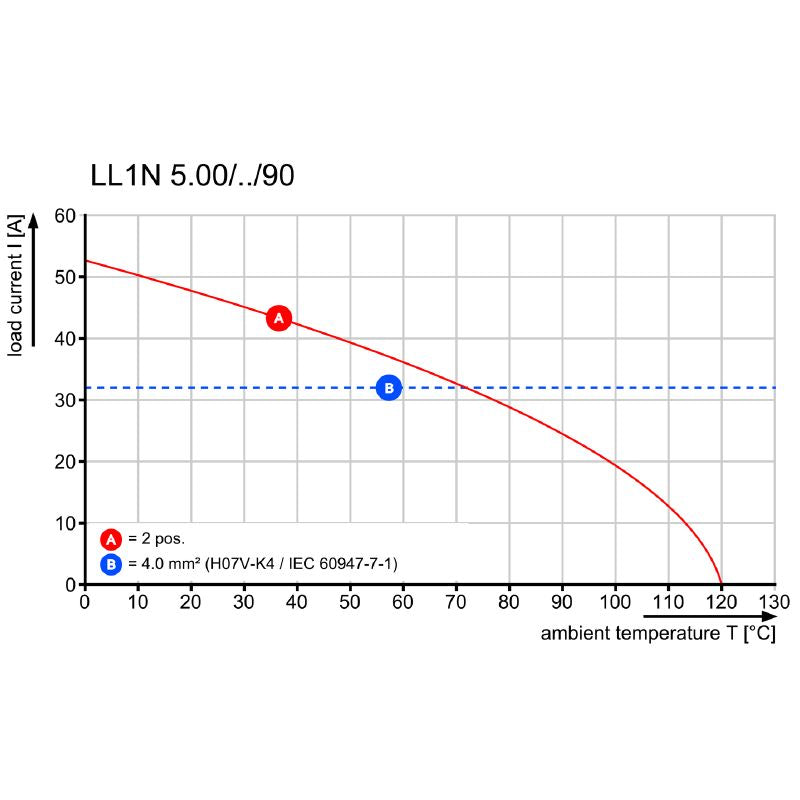

•IEC rated for 500 V / 32.5 A.

•UL rated for 300 V / 20 A.

•THT solder connection for mounting on PCBs.

•Fire rating of UL 94 V-0.

•Suitable for fine-stranded conductors.

•Touch-safe protection according to DIN standards.

Specifications:
