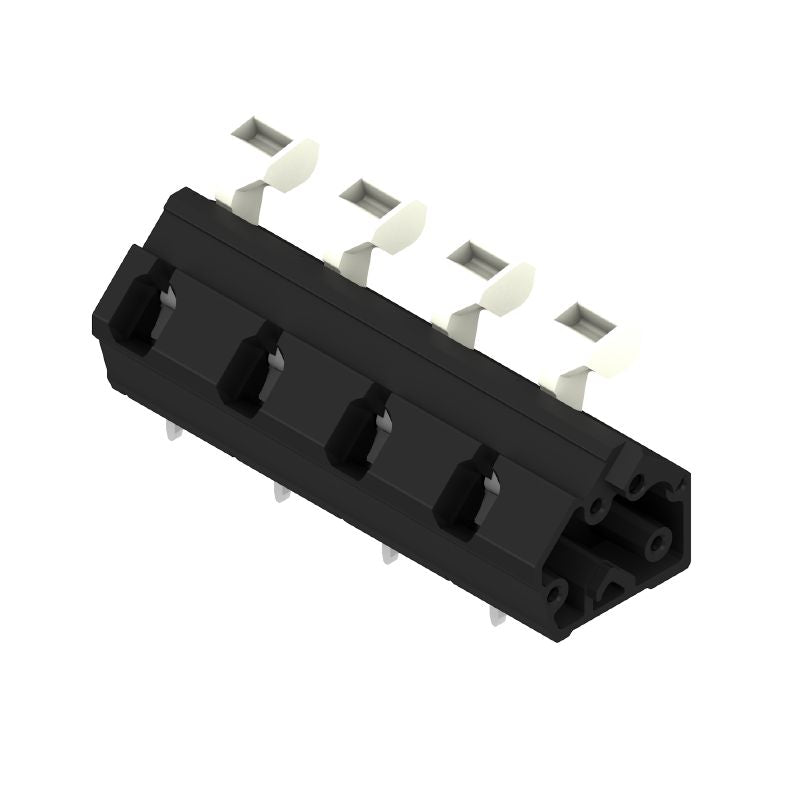

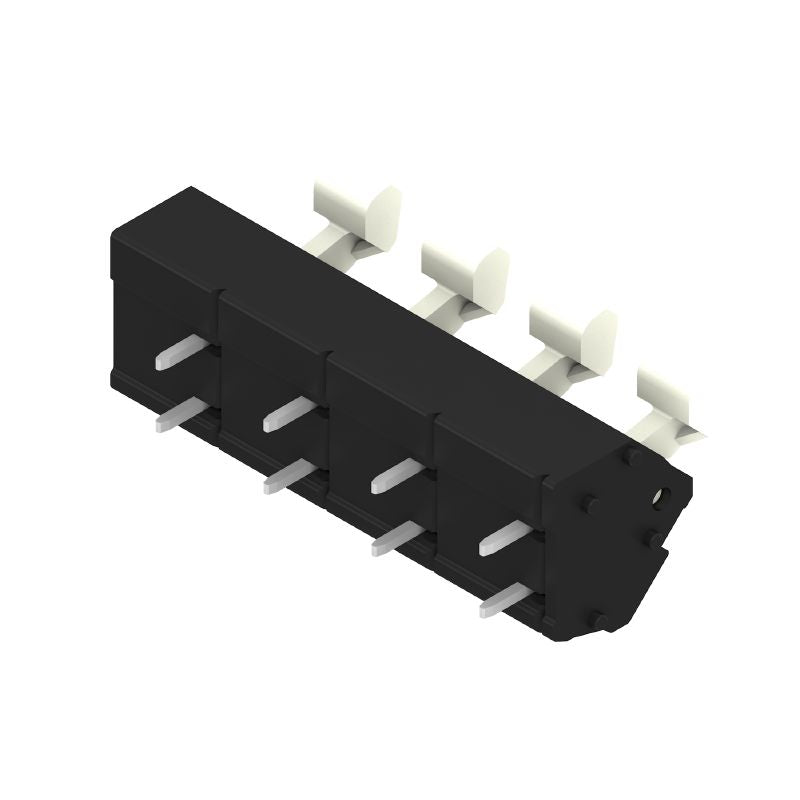

1953600000 - 10mm PCB Terminal with 4 Poles and Tension Clamp (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

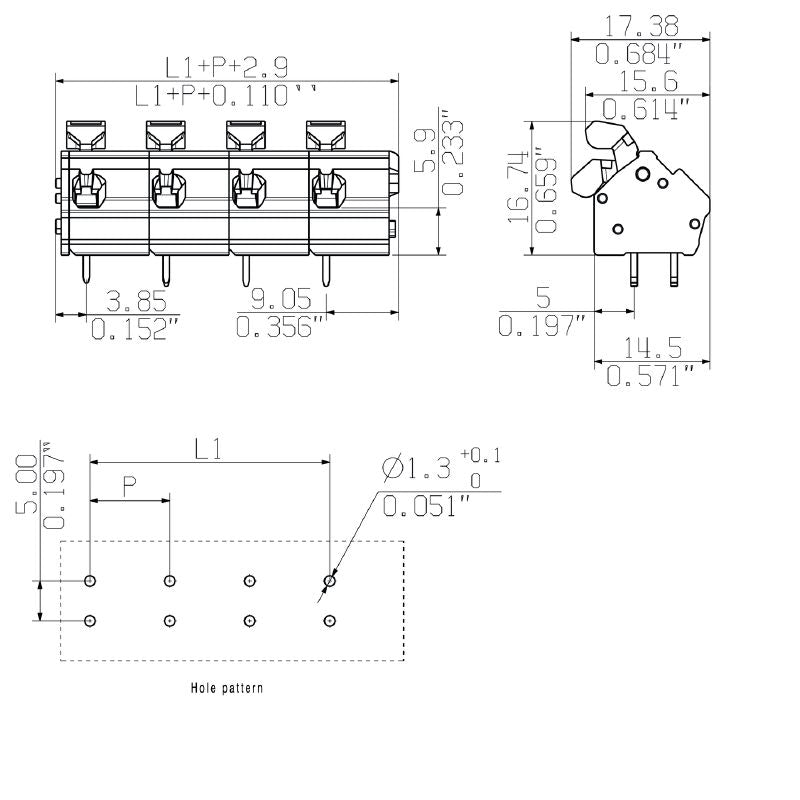

Introducing our 4-pole printed circuit board terminal, engineered with a 1000 mm pitch and set at a convenient 135° angle It features a robust tin-coated solder pin, measuring 35 mm in length, ensuring secure connections The terminal is encased in a durable black housing and incorporates a reliable tension clamp connection, complete with an actuator for ease of use Capable of accommodating wires with a maximum clamping range of 2.

5 mm², this product is thoughtfully packaged in individual boxes for straightforward storage and organization.

Features and Benefits:

•RoHS compliant without exemptions.

•Can accommodate conductor connections from 0.13 mm² to 2.5 mm².

•Solder pin dimensions are 0.8 x 0.8 mm.

•Touch-safe protection according to DIN VDE standards.

•Operating temperature range between -50 °C and 120 °C.

•Insulating material is Wemid (PA), black in color.

Specifications:
