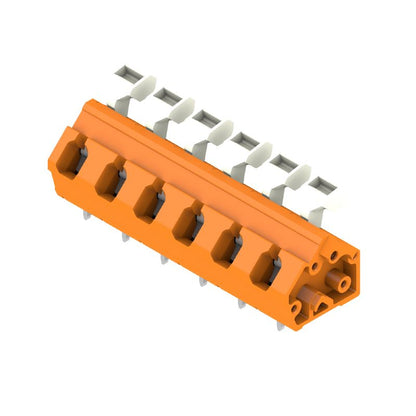

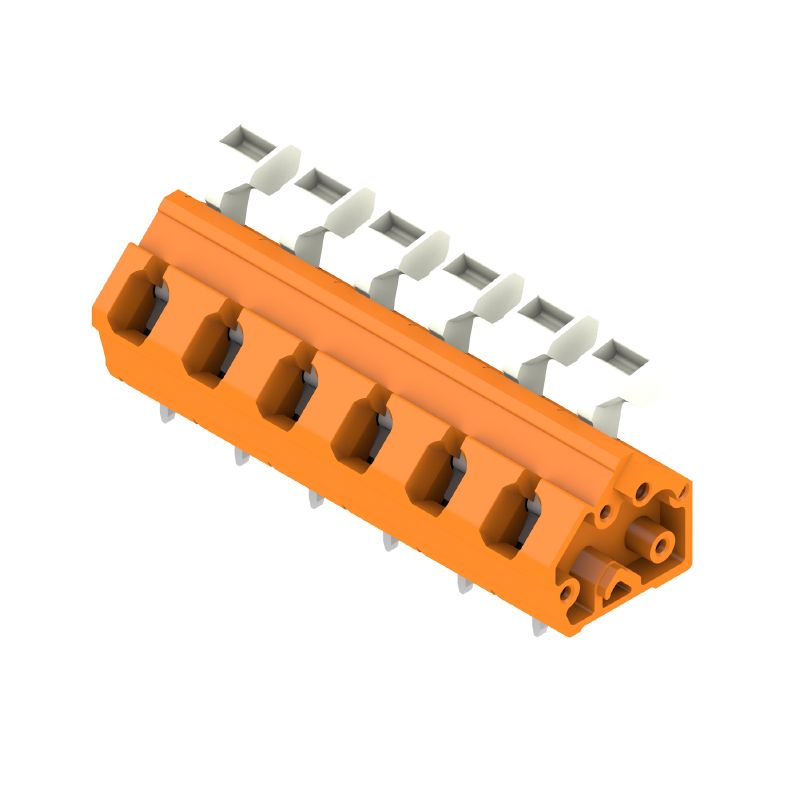

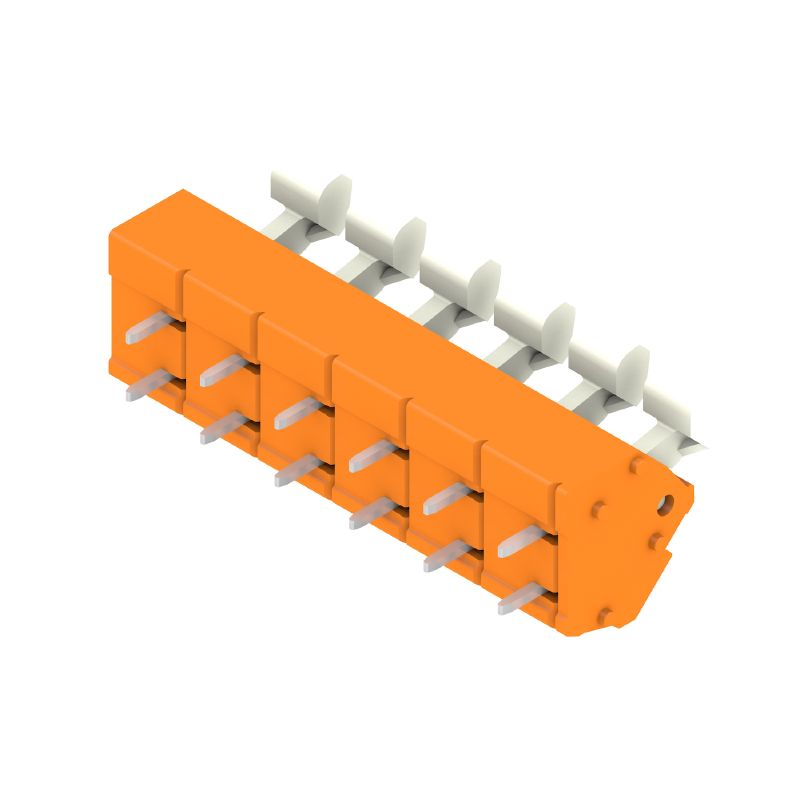

1953050000 - 7.5mm Pitch 6-Pole PCB Terminal with 3.5mm Solder Pins (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile printed circuit board terminal equipped with 6 poles, designed with a 750 mm pitch and a unique 135° orientation for optimal connectivity Each terminal features a 35 mm long solder pin, finished with a durable orange tin coating The connection is secured through a tension clamp mechanism with an actuator, accommodating a maximum wire size of 25 mm² This terminal comes conveniently packaged in a box and complies with RoHS standards for safety and environmental responsibility.

Perfect for your electronic projects, this component ensures reliable performance and ease of use.

Features and Benefits:

•Tension clamp connection with actuator for secure wire connection.

•Suitable for conductor cross-sections from 0.13 mm² to 2.5 mm².

•Designed for THT solder connection onto the PCB.

•Constructed from Wemid (PA) insulating material.

Specifications:
