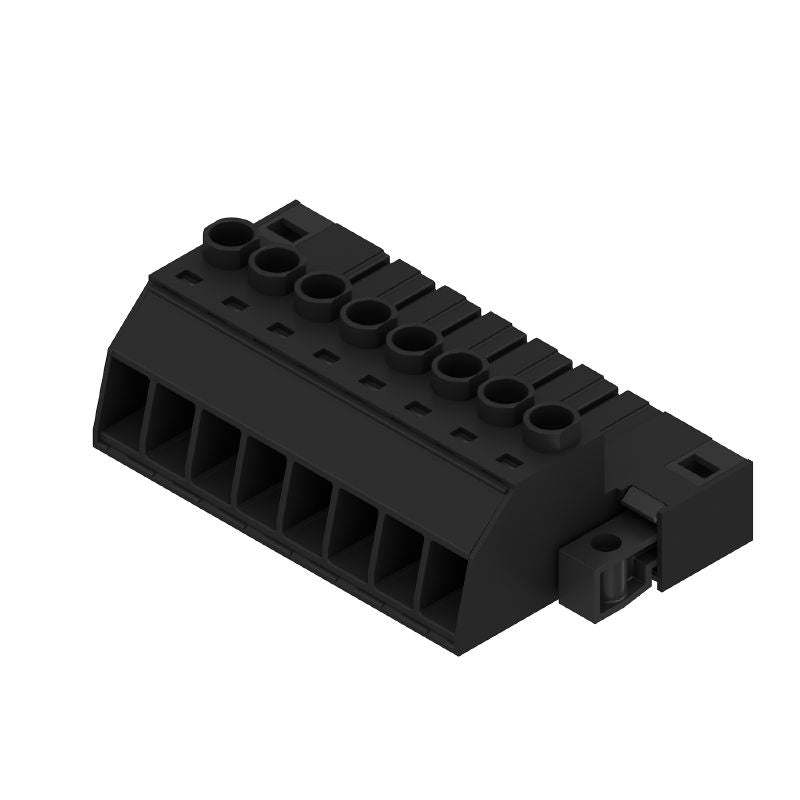

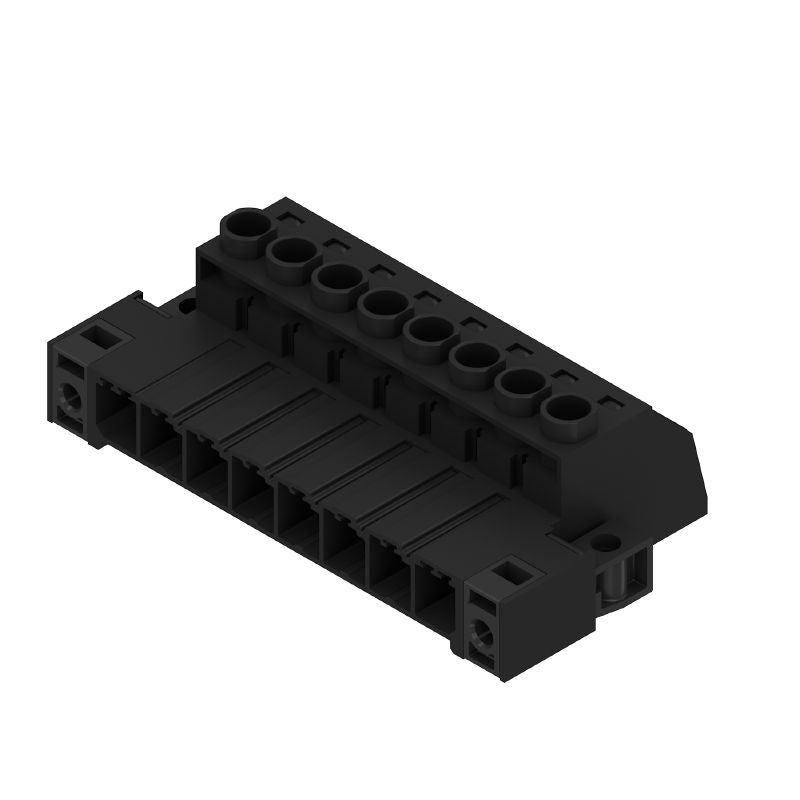

1932020000 - 7.62mm PCB Plug-In Connector, 8 Pole, 180° Angle (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a durable PCB plug-in male connector with a versatile 762 mm pitch This connector features 8 poles positioned at a 180° angle and is equipped with a reliable clamping yoke connection that supports a maximum clamping range of 6 mm² It meets RoHS standards and carries the UL file number E60693, ensuring safety and compliance in your projects Capable of withstanding IEC rated conditions of 1000 V and a current capacity of 57 A, as well as UL rated specifications of 600 V and 42 A, this connector accommodates wire sizes from AWG 24 to AWG 8.

Ideal for various electrical applications, it's built for secure and efficient connections.

Features and Benefits:

•Complies with RoHS directives.

•Touch-safe protection according to DIN VDE standards.

•Can be coded for customizable applications.

•Suitable for fine-wired and stranded conductors.

•Tested for durability and non-interchangeability.

Specifications:
