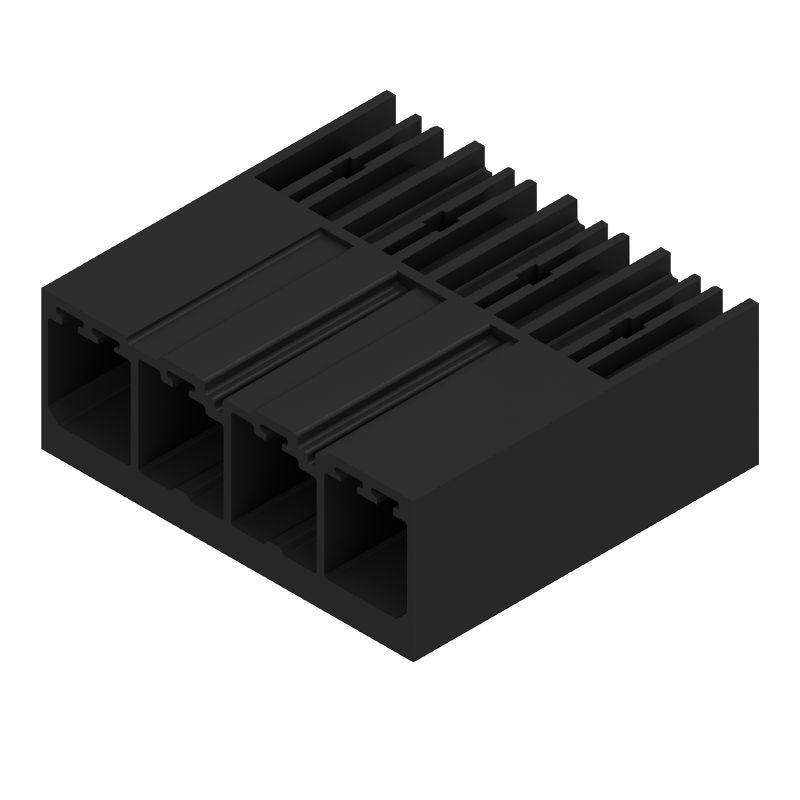

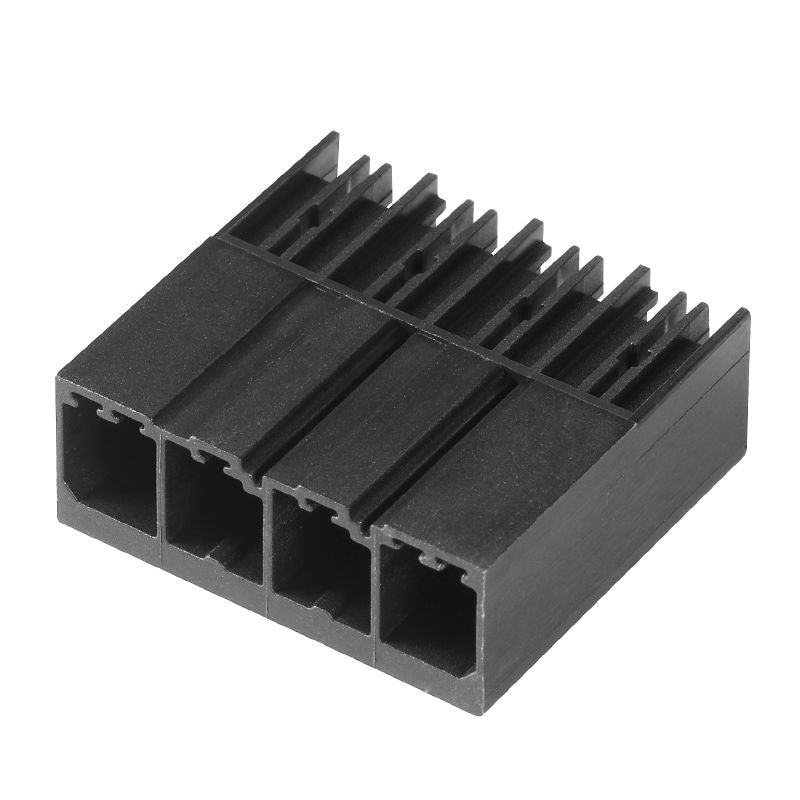

1930290000 - 4-Pole 7.62mm Male PCB Connector, 90° Angle, Black Tinned (Pack of 60)

1930290000 - 4-Pole 7.62mm Male PCB Connector, 90° Angle, Black Tinned (Pack of 60)

SKU: SKU: 1930290000   Download PDF

Select a Variant:
  • 1930290000 - 4-Pole 7.62mm Male PCB Connector, 90° Angle, Black Tinned (Pack of 60)
Qty:
Regular price Now $208.08   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $208.08 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing our male header PCB plug-in connector, designed with a closed side for secure connections This component features a through-hole technology (THT) solder connection with a 762 mm pitch and accommodates four poles at a convenient 90° angle The solder pin extends 35 mm in length, and its stylish black tinned finish adds a modern touch Each connector is packaged in a box and adheres to RoHS compliance standards, ensuring it meets environmental safety regulations.

Features and Benefits:

    •Compliant with international standards and norms.

    •Touch-safe protection above the printed circuit board.

    •Can be coded.

    •Good resistance with a volume resistance of 2.00 mΩ.

    •Designed for easy installation on a PCB.

Specifications:

 Approval Status: Compliant without exemption
 Rated current, min. number of poles (Tu=20°C): 57 A
 Rated voltage (Use group B / CSA): 300 V
 Insulating material: PA GF
 Operating temperature, min.: -50 °C
 Rated voltage for surge voltage class / pollution degree II/2: 1,000 V

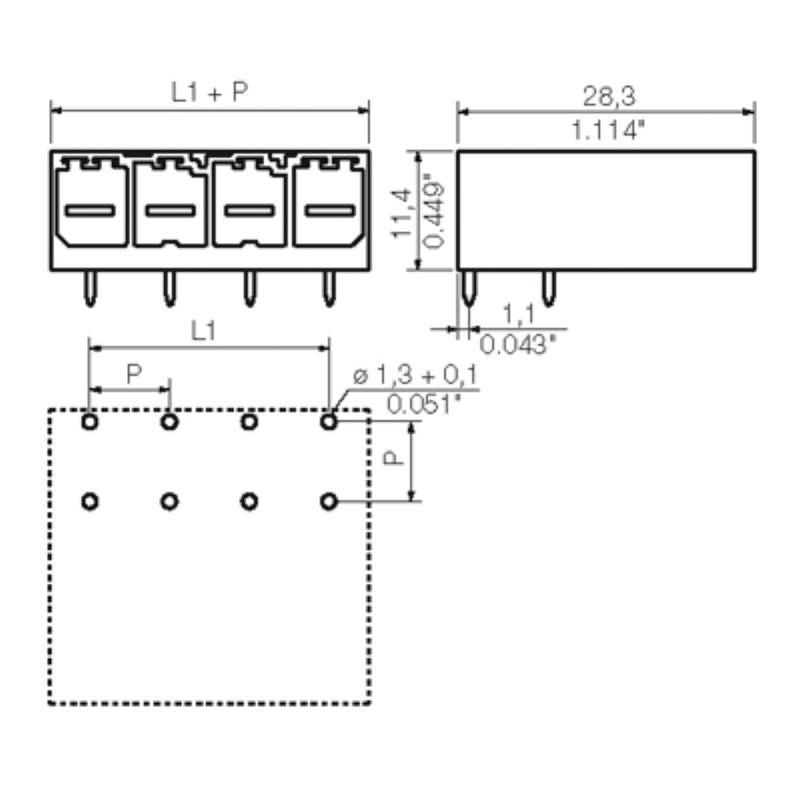

 Pitch in mm (P): 7.62 mm
 Solder pin dimensions: 0.8 x 1.0 mm
 Number of solder pins per pole: 2
 Volume resistance: 2.00 mΩ
 Short-time withstand current resistance: 3 x 1s with 420 A
 Creepage distance, min.: 9.6 mm
 Clearance distance, min.: 6.9 mm
 UL File Number: E60693
