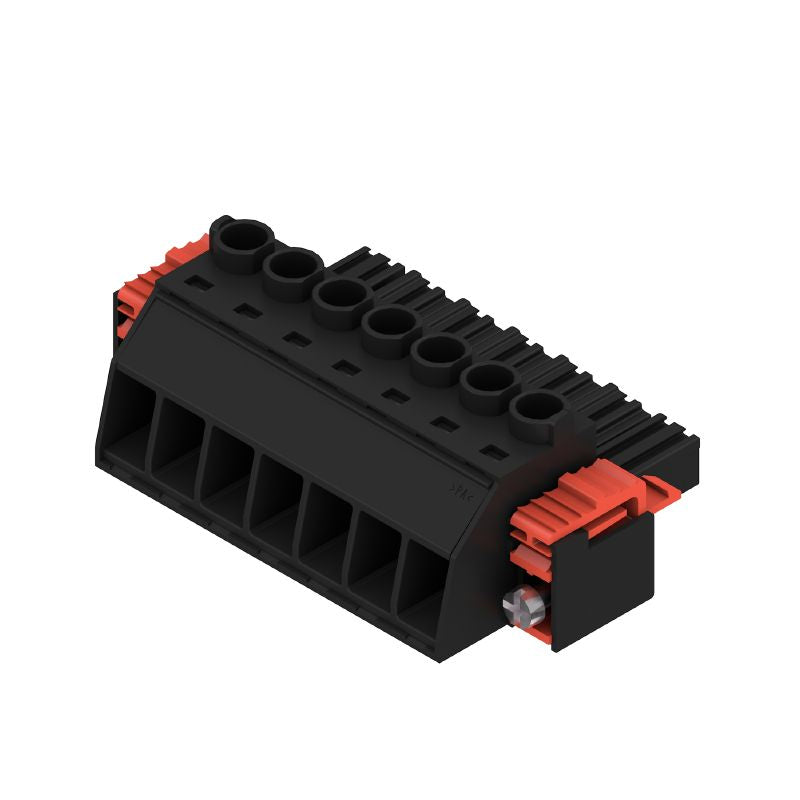

1930210000 - 7-Pole Female PCB Connector, 7.62mm, 180° Orientation (Pack of 50)

1930210000 - 7-Pole Female PCB Connector, 7.62mm, 180° Orientation (Pack of 50)

SKU: SKU: 1930210000   Download PDF

Select a Variant:
  • 1930210000 - 7-Pole Female PCB Connector, 7.62mm, 180° Orientation (Pack of 50)
Qty:
Regular price Now $508.40   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $508.40 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Connect with ease using this specialized PCB plug-in connector, tailored for female connections Measuring 762 mm, it accommodates up to 7 poles in a 180° orientation The connector features a reliable clamping yoke for secure wire attachment, supporting a maximum clamping range of 10 mm² It is conveniently packaged in a sturdy box for your needs.

Features and Benefits:

    •Compatible with 10 mm² maximum clamping range.

    •Field connection type design.

    •Touch-safe protection as per DIN VDE 57 106 and 0470 standards.

    •Can be coded for secure connections.

    •Maximum plugging cycles rated at 25.

    •Available in black color.

Specifications:

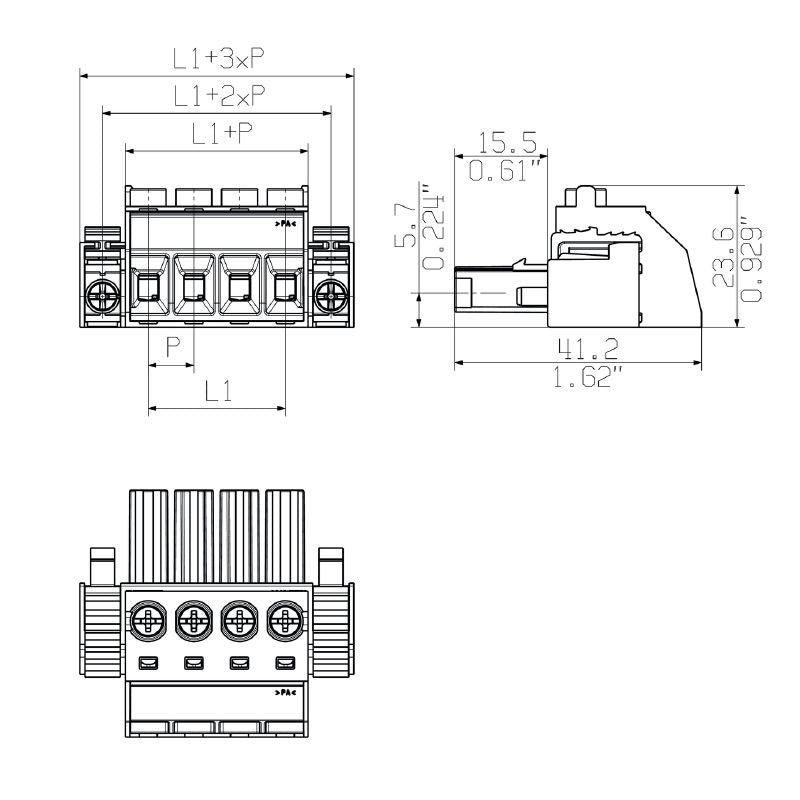

 Dimensions (mm) Depth: 42.1, Height: 23.1, Width: 68.58
 Rated Voltage (IEC) 1000 V
 Rated Current (IEC) 57 A
 Clamping Range 0.2 - 10 mm²
 Pitch 7.62 mm
 Protection Degree IP20
 Temperature range (Operating) -50 to 125 °C
 Material Insulating PA GF
 Material Contact Copper alloy
 Rated Current (CSA) 40.5 A
 Rated Voltage (UL 1059) 600 V
