1929870000 - 5-Pole PCB Connector, 7.62mm Pitch, 180° Clamping Connection (Pack of 25)

1929870000 - 5-Pole PCB Connector, 7.62mm Pitch, 180° Clamping Connection (Pack of 25)

SKU: SKU: 1929870000   Download PDF

Select a Variant:
  • 1929870000 - 5-Pole PCB Connector, 7.62mm Pitch, 180° Clamping Connection (Pack of 25)
Qty:
Regular price Now $263.40   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $263.40 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

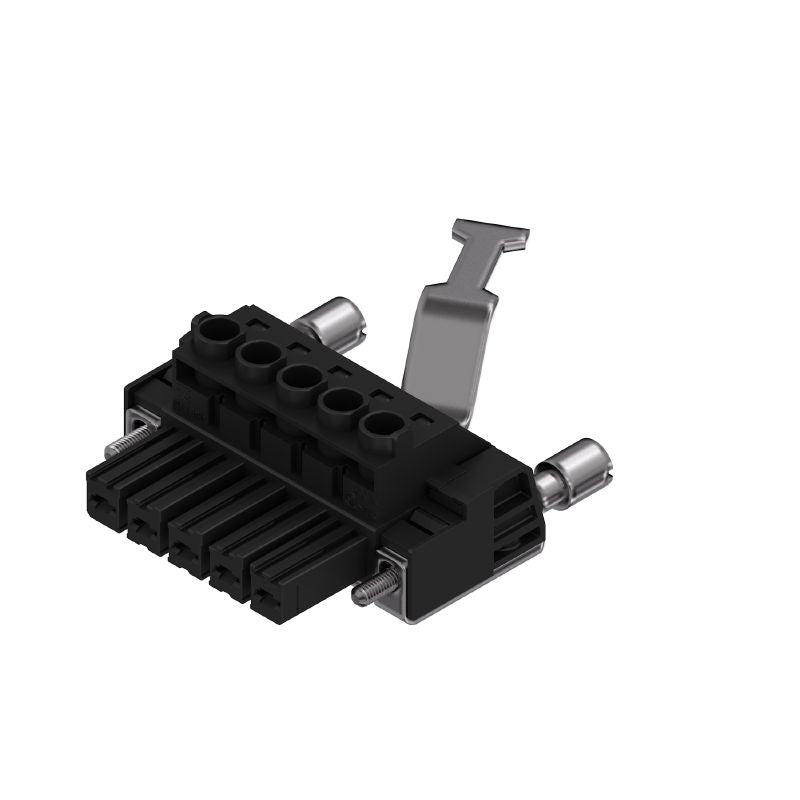

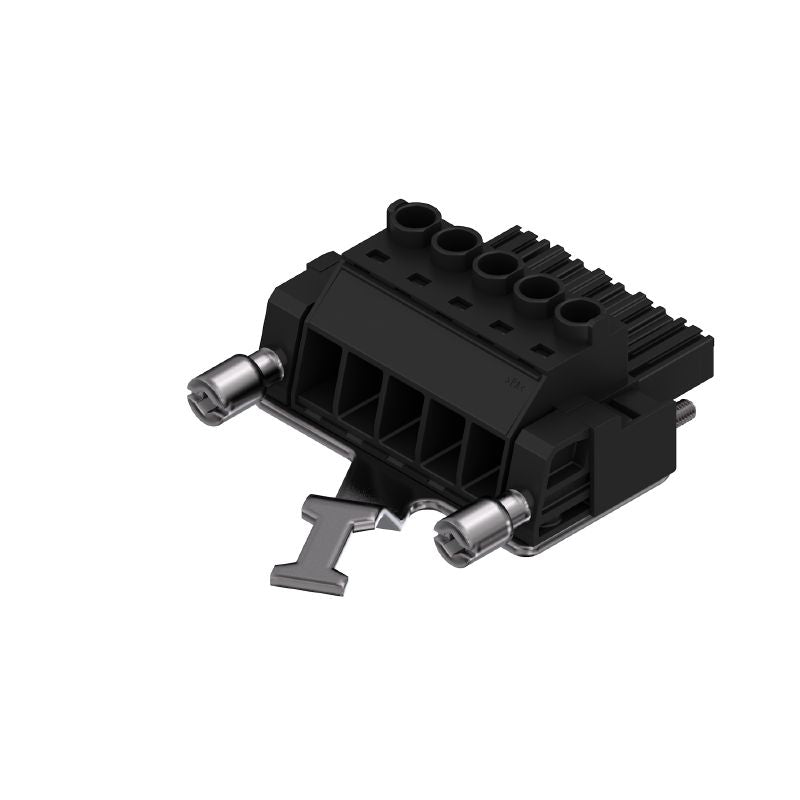

Introducing the BVZ 762HP/05/180RSH150 SN BK BX, a robust female plug PCB connector engineered for field connections with a 762 mm pitch This connector features a 180° configuration with 5 poles, ensuring reliable performance Utilizing advanced clamping yoke connections, it accommodates a maximum clamping range of 10 mm² Fully compliant with RoHS standards, this connector meets IEC specifications with an impressive voltage rating of 1,000 V and supports current loads up to 57 A.

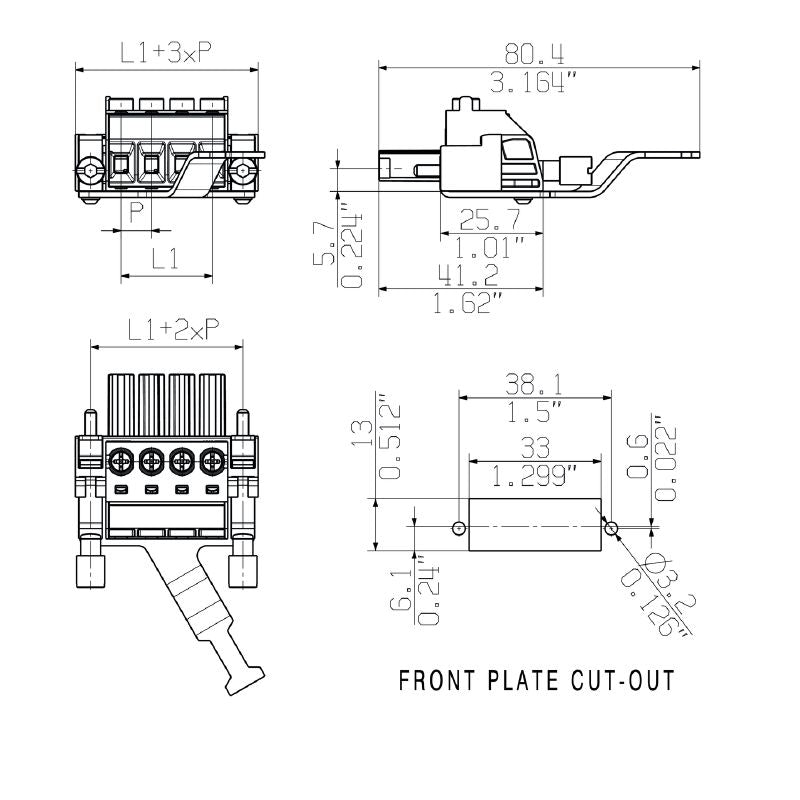

It measures 803 mm in depth, 25 mm in height, and 5334 mm in width, weighing in at 5184 grams Each unit is conveniently packaged in a secure box, making it ideal for your electrical connection needs.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Clamping yoke connection for secure wire attachment.

    •Touch-safe protection according to DIN VDE standards.

    •Can be coded for precise installation.

    •Field connection in various electrical setups.

Specifications:

 Rated Voltage (IEC) 1000 V

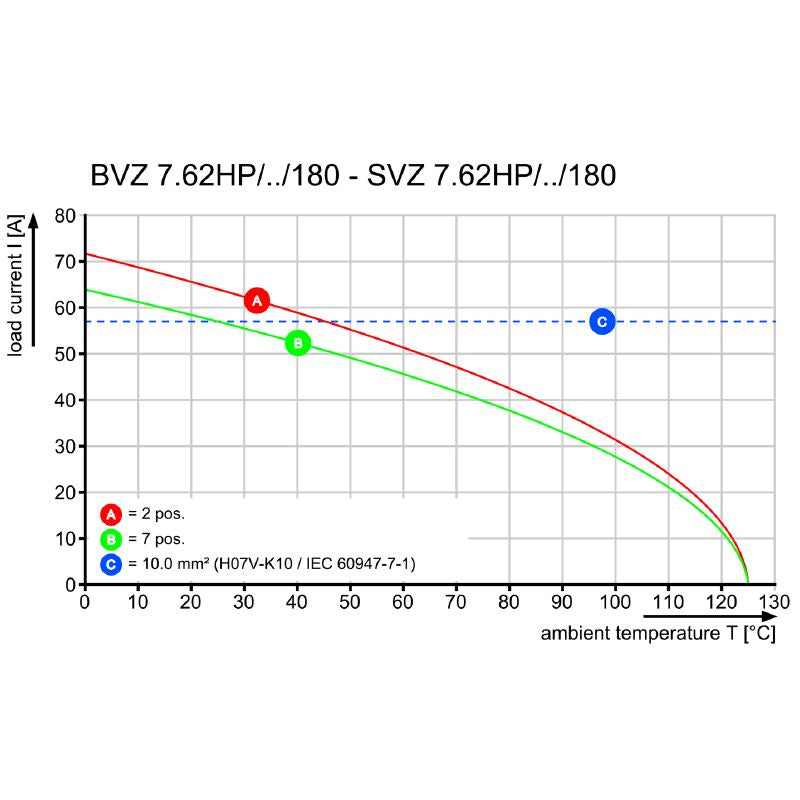

 Rated Current (IEC) 57 A
 Clamping Range 0.2 - 10 mm²
 Number of Poles 5
 Protection Degree IP20
 Pitch 7.62 mm
 Tightening Torque (min) 0.5 Nm
 Tightening Torque (max) 0.6 Nm
 Storage Temperature (min) -40 °C
 Storage Temperature (max) 70 °C
 Operating Temperature (min) -50 °C
 Operating Temperature (max) 125 °C
 Material PA GF
 Color black
