1924780000 - Female 9-Pole PCB Connector with 10.16mm Pitch (Pack of 8)

1924780000 - Female 9-Pole PCB Connector with 10.16mm Pitch (Pack of 8)

SKU: SKU: 1924780000   Download PDF

Select a Variant:
  • 1924780000 - Female 9-Pole PCB Connector with 10.16mm Pitch (Pack of 8)
Qty:
Regular price Now $183.08   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $183.08 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

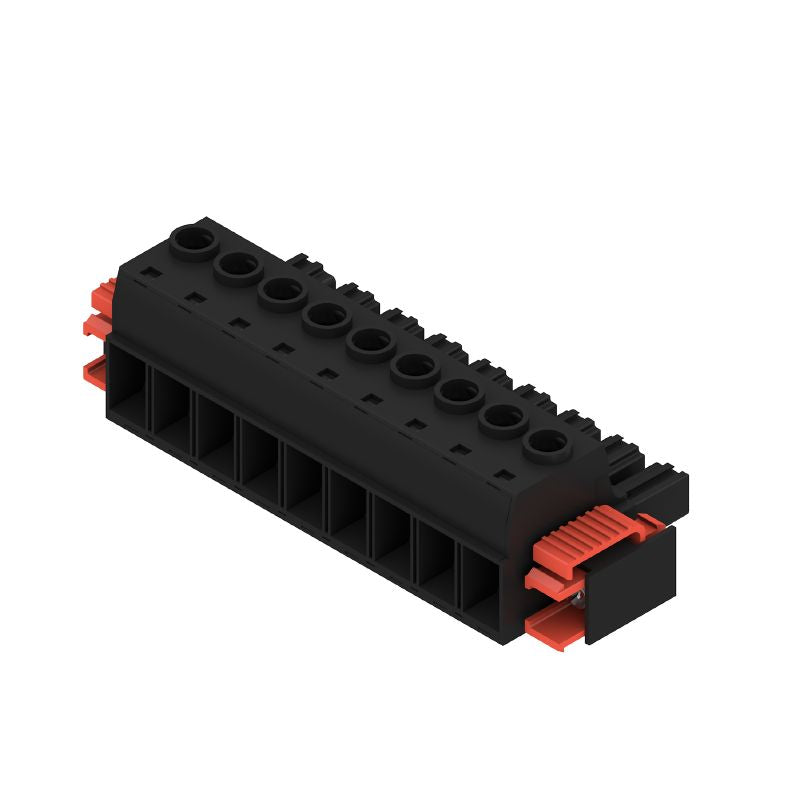

Introducing the BUZ 1016HP/09/180SF AG BK BX, a robust female plug-in connector tailored for PCB applications With a pitch of 1016 mm and featuring 9 poles, this connector incorporates a 180° clamping yoke for secure connections It supports a maximum clamping range of 16 mm², making it versatile for various uses Each unit is neatly packaged in a box, ensuring easy storage and effective distribution.

Features and Benefits:

    •RoHS compliant.

    •Field connection type allowing versatile connections.

    •Can be coded for connection security.

    •Touch-safe protection according to DIN standards.

    •Compatible with various conductor types and cross-sections.

    •Used in electrical installations where space and connection security are critical.

Specifications:

 Rated Voltage (IEC) 1000 V / 600 V

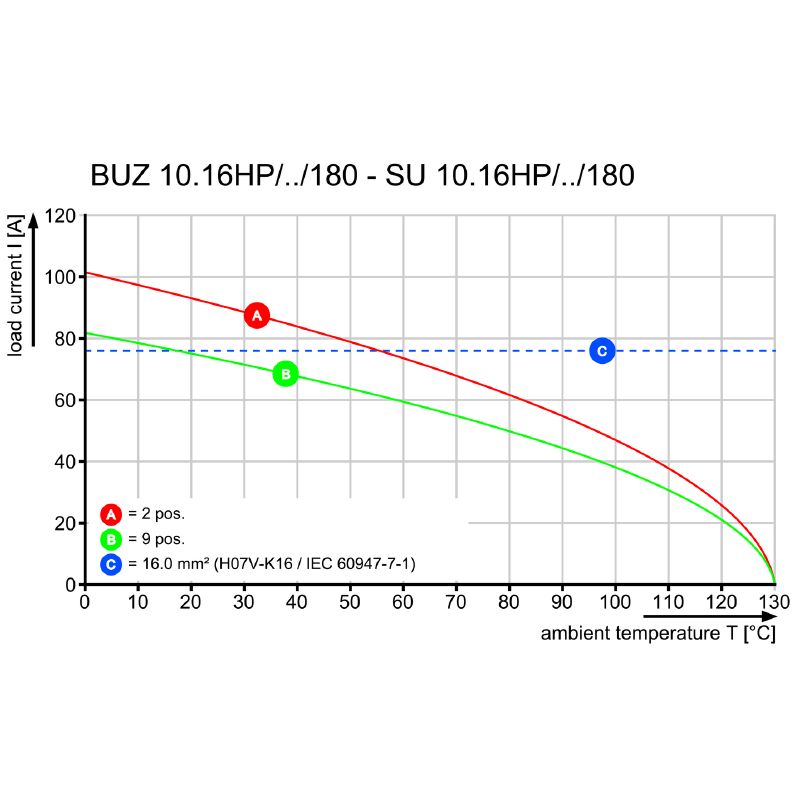

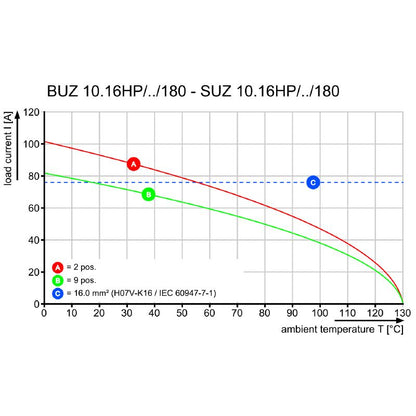

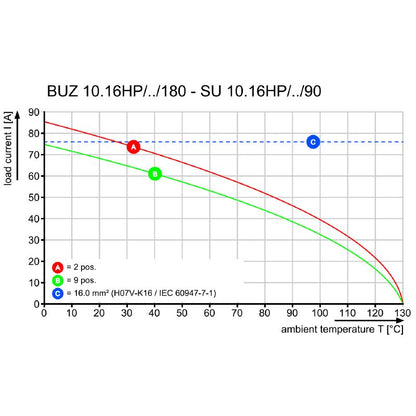

 Rated Current 78.3 A / 60 A
 Conductor Outlet Direction 180°
 Clamping Range 0.2 - 16 mm²

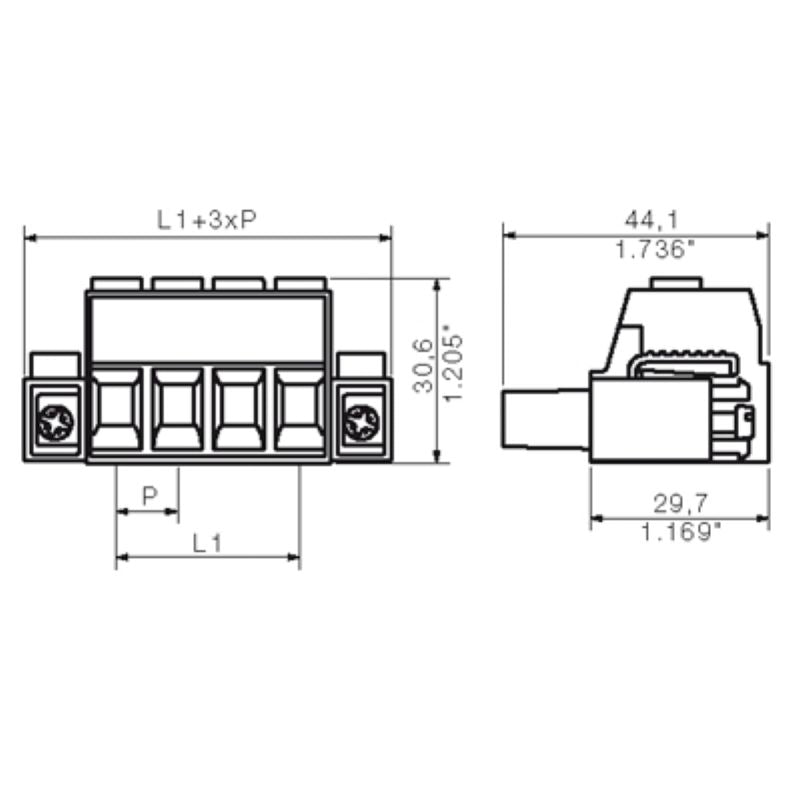

 Pitch 10.16 mm
 Touch-Safe Protection IP 20
 Operating Temperature Range -50 °C to 130 °C
 Insulating Material PA GF
 Contact Material Cu-alloy
 Insulation Flammability Rating UL 94 V-0
 Plugging Cycles 25
 Volume Resistance 4.50 mΩ
 Screw Flange Tightening Torque 0.3 - 2 Nm
