1912530000 - 3-Pole 5.08mm PCB Terminal with 3.5mm Solder Pins (Pack of 100)

1912530000 - 3-Pole 5.08mm PCB Terminal with 3.5mm Solder Pins (Pack of 100)

SKU: SKU: 1912530000   Download PDF

Select a Variant:
  • 1912530000 - 3-Pole 5.08mm PCB Terminal with 3.5mm Solder Pins (Pack of 100)
Qty:
Regular price Now $61.62   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $61.62 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

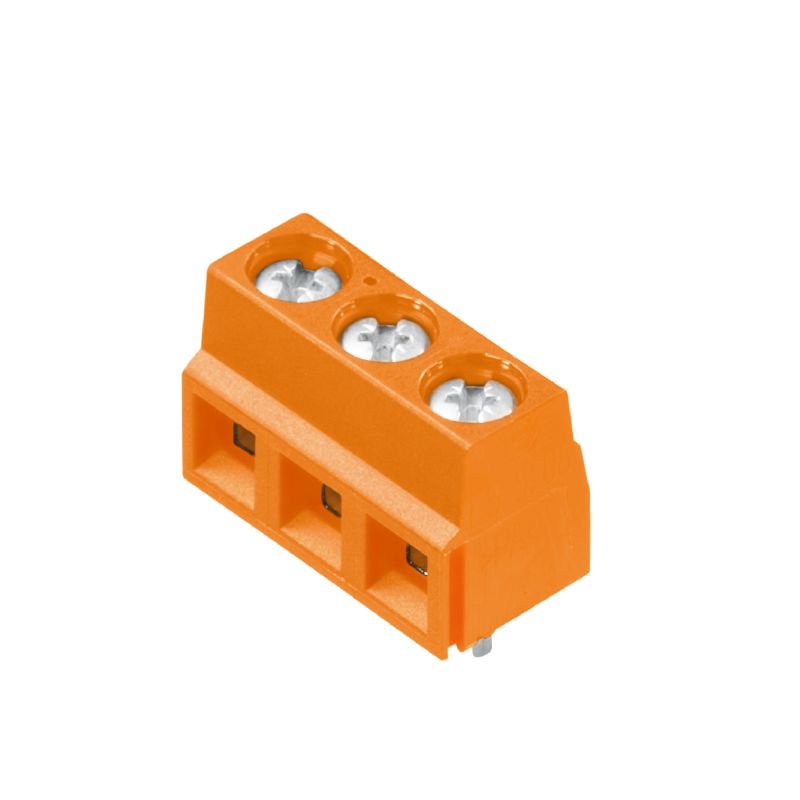

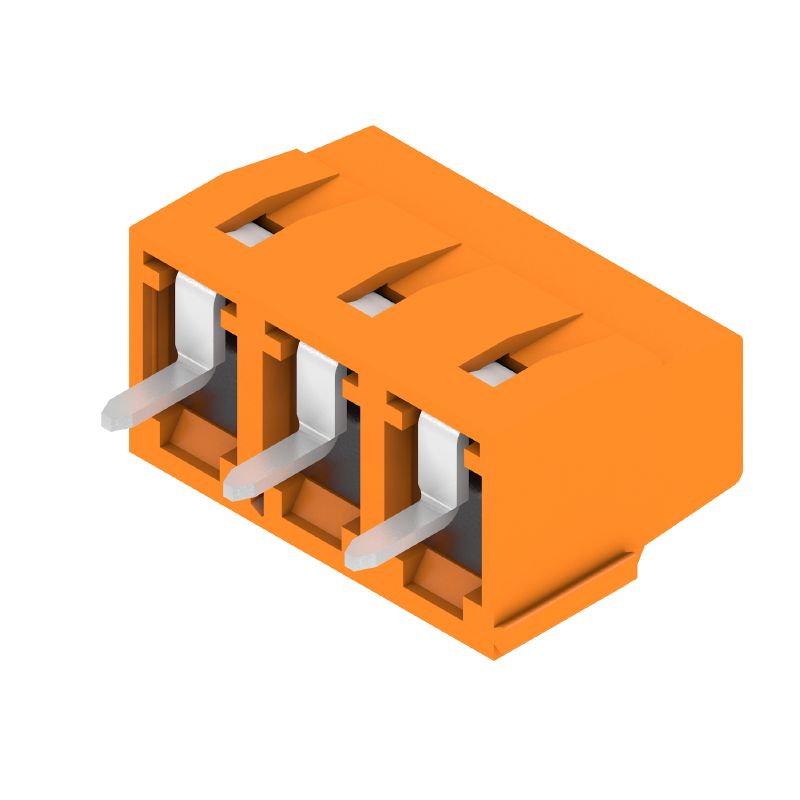

Introducing our 508mm spaced printed circuit board terminals, designed with three poles set at a convenient 90° angle Each terminal features a solder pin measuring 35mm in length, expertly coated in a vibrant orange tin finish Equipped with a clamping yoke connection, it supports a maximum clamping capacity of 15mm², making it ideal for a variety of electrical applications.

Features and Benefits:

    •RoHS compliant.

    •Clamping yoke connection method.

    •THT solder connection for PCB mounting.

    •Touch-safe protection according to DIN VDE standards.

    •Suitable for various wire cross-sections from AWG 28 to AWG 14.

Specifications:

 Number of poles 3
 Solder pin length 3.5 mm
 Clamping range, max 1.5 mm²
 Rated voltage (IEC) 630 V

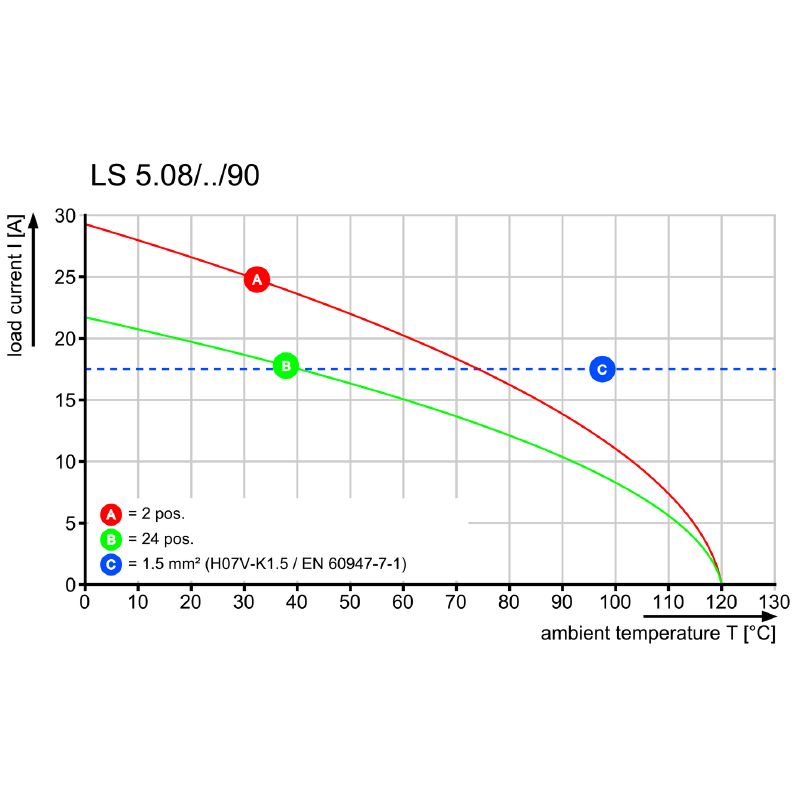

 Rated current (IEC) 17.5 A

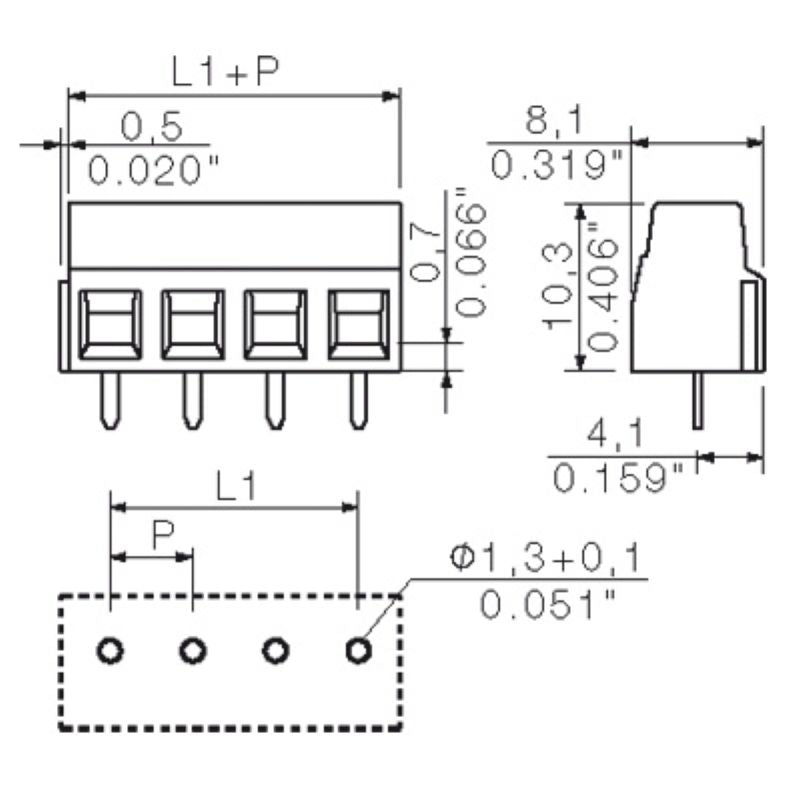

 Pitch 5.08 mm
 Depth 8.1 mm
 Height 13.8 mm
 Width 15.74 mm
 Storage temperature, min -40 °C
 Storage temperature, max 70 °C
 Operating temperature, min -50 °C
 Operating temperature, max 120 °C
