1875980000 - 8-Pole Black Circuit Board Terminal, 3.5mm Pin, Push In System (Pack of 265)

1875980000 - 8-Pole Black Circuit Board Terminal, 3.5mm Pin, Push In System (Pack of 265)

SKU: SKU: 1875980000   Download PDF

Select a Variant:
  • 1875980000 - 8-Pole Black Circuit Board Terminal, 3.5mm Pin, Push In System (Pack of 265)
Qty:
Regular price Now $678.50   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $678.50 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

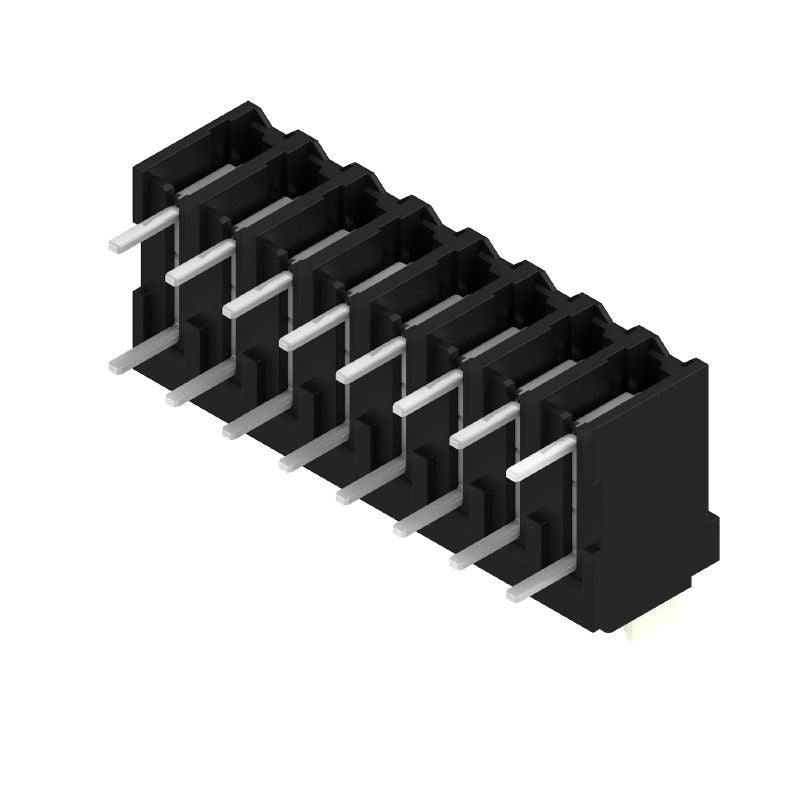

Enhance your electrical connections with this reliable printed circuit board terminal, featuring 8 poles positioned at a precise 90° angle With a solder pin length of 35 mm, this terminal incorporates a black PUSH IN mechanism, complete with an easy-to-use push button for added convenience It offers a clamping range accommodating wires up to 15 mm² This item, with the ordering reference 1875980000, adheres to ROHS standards.

It is suitable for alternating current ratings of 320 V and 175 A, as well as UL-approved voltage ratings of 300 V and 12 A for designated wire sizes, ensuring versatility and compliance in various applications.

Features and Benefits:

    •Compliant with ROHS without exemption.

    •Utilizes PUSH IN technology with a push button for secure connections.

    •Suitable for a wide clamping range accommodating various wire sizes.

    •Ideal for use in printed circuit boards and electronic devices.

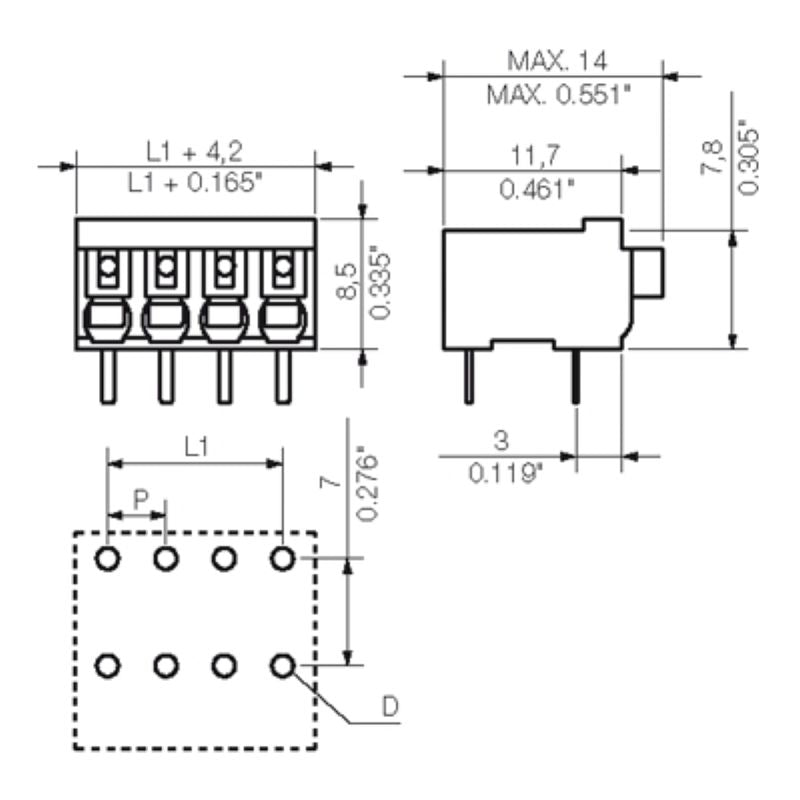

Specifications:

 Depth 14.75 mm
 Height 12 mm
 Width 30.87 mm
 Continuous operating temperature, max. 120 °C
 Rated voltage 320 V
 Rated current 17.5 A
 Insulating material LCP GF
 Protection degree IP20
 Clamping range, max. 1.5 mm²
 Solder pin dimensions 0.35 x 0.8 mm
 Number of poles 8
 Stripping length 8 mm
 UL 94 flammability rating V-0
