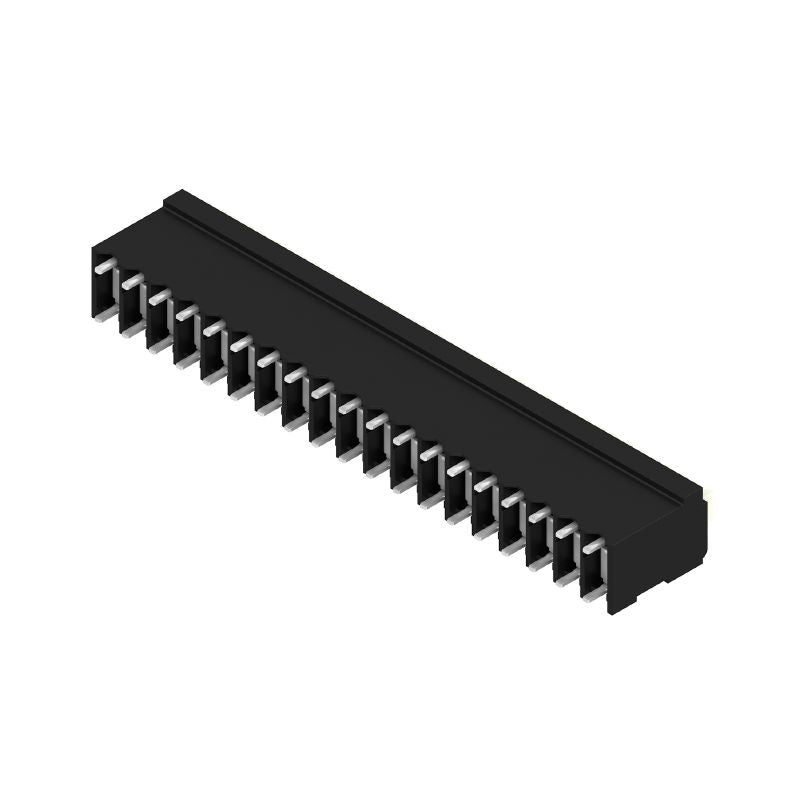

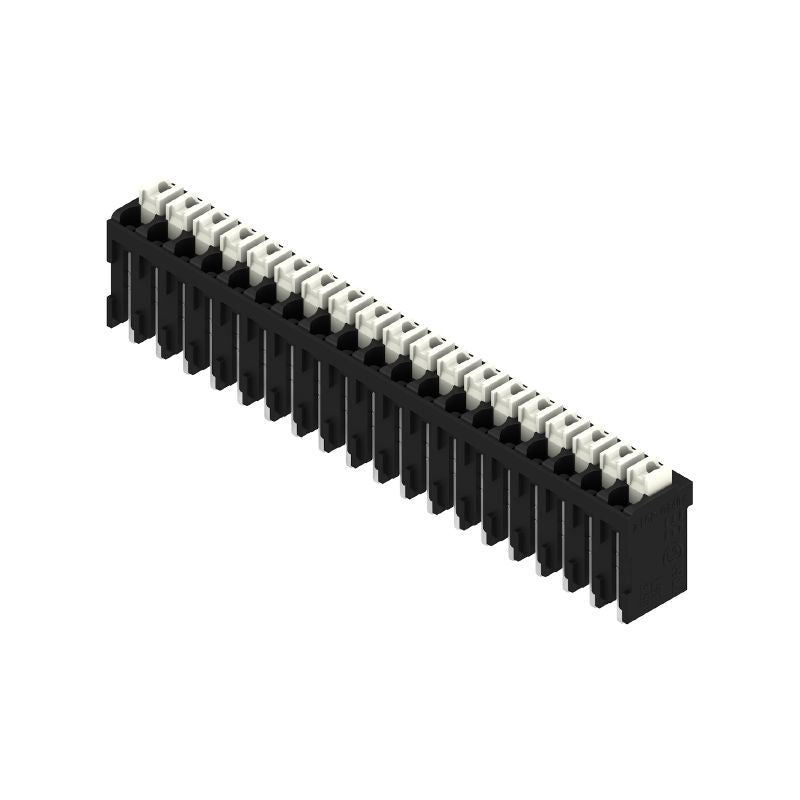

1870840000 - 3.50mm PCB Terminal with 19 Poles, Black, PUSH IN (Pack of 8)

1870840000 - 3.50mm PCB Terminal with 19 Poles, Black, PUSH IN (Pack of 8)

SKU: SKU: 1870840000   Download PDF

Select a Variant:
  • 1870840000 - 3.50mm PCB Terminal with 19 Poles, Black, PUSH IN (Pack of 8)
Qty:
Regular price Now $39.13   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $39.13 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Enhance your projects with these printed circuit board terminals, measuring 350 mm in width and featuring 19 poles arranged at a precise 180° angle Each terminal has a solder pin length of 15 mm and showcases a classic black hue Utilizing a PUSH IN connection method with an actuator, it efficiently handles a clamping range of up to 15 mm² For your convenience, these terminals come packaged in a tube, making them easy to store and access.

Features and Benefits:

    •PUSH IN connection with actuator.

    •Tube packaging.

    •RoHS compliant without exemptions.

    •IP 20 touch-safe protection.

Specifications:

 Depth 7.8 mm
 Height 15.5 mm
 Width 67.2 mm
 Continuous operating temperature, max. 120 °C
 Rated voltage 320 V / 300 V
 Rated current 17.5 A / 12 A
 Pitch 3.5 mm
 Number of poles 19
 Solder pin dimensions 0.35 x 0.8 mm
 Storage temperature, min. -40 °C
 Storage temperature, max. 70 °C
 Contact material Cu-alloy
 Insulating material LCP GF
 Wire connection cross section AWG, min. AWG 28
 Wire connection cross section AWG, max. AWG 14
