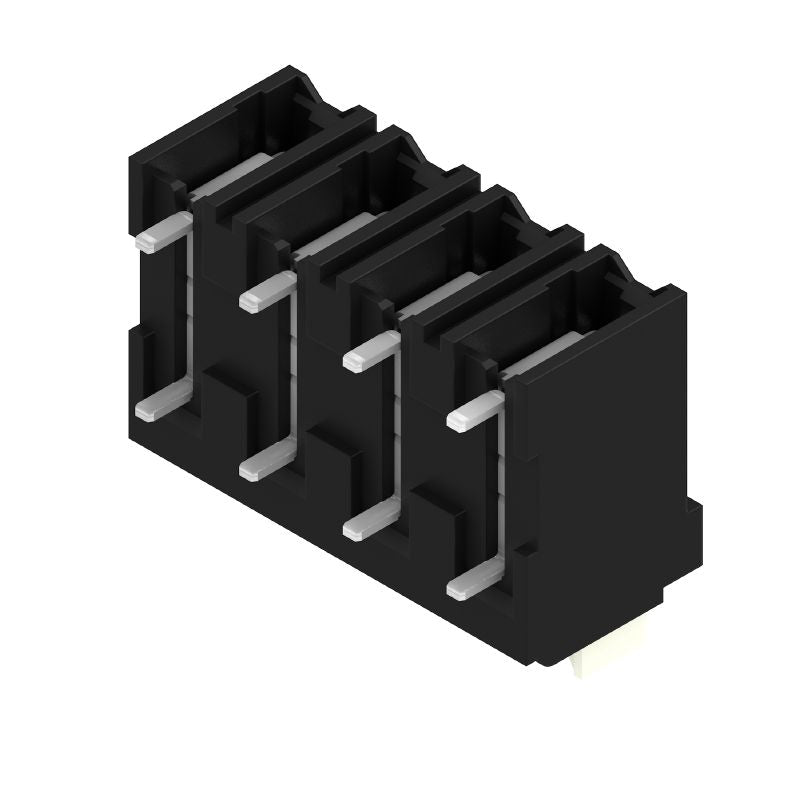

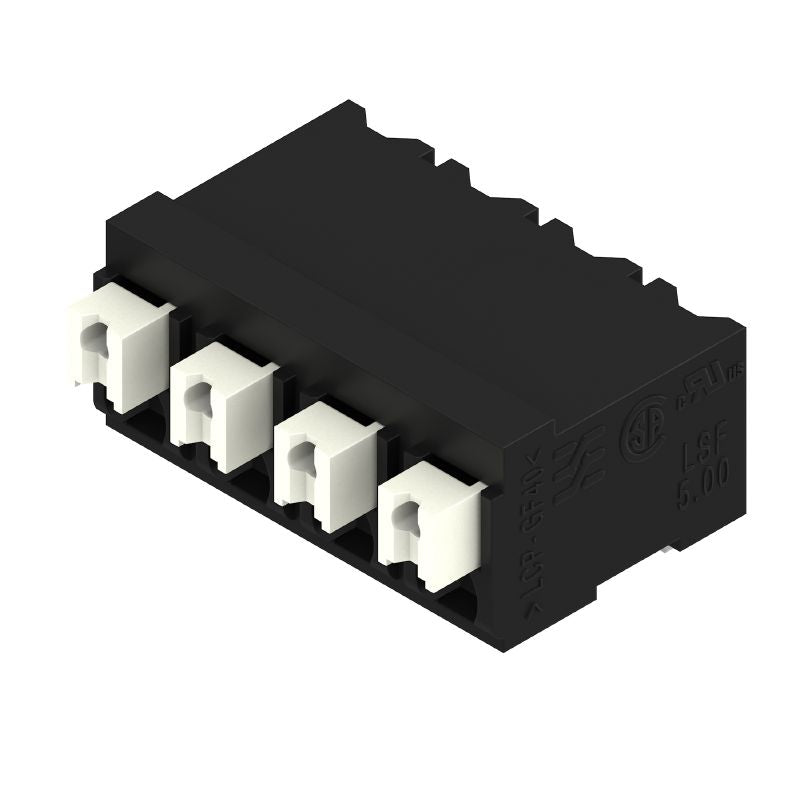

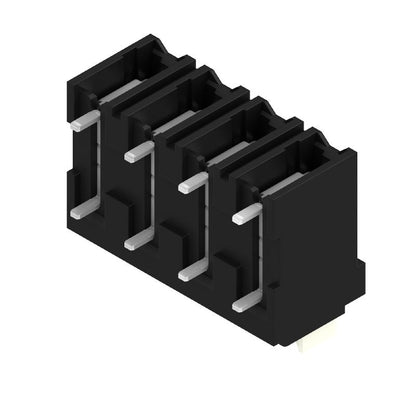

1869620000 - Black PCB Terminal, 5mm Spacing, 1.5mm Pin Length (Pack of 28)

1869620000 - Black PCB Terminal, 5mm Spacing, 1.5mm Pin Length (Pack of 28)

SKU: SKU: 1869620000   Download PDF

Select a Variant:
  • 1869620000 - Black PCB Terminal, 5mm Spacing, 1.5mm Pin Length (Pack of 28)
Qty:
Regular price Now $28.84   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $28.84 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the LSF-SMT 500/04/90 15SN BK TU, a reliable solution for your circuit board needs This product features four terminals arranged at a precise 90° angle, with a spacing of 500 mm between them Its solder pin length is 15 mm, and it boasts a sophisticated black color Utilizing a PUSH IN mechanism that includes a convenient push button, this terminal can accommodate a maximum clamping range of 1.

5 mm² For ease of use, it is packaged in a practical tube, making it an ideal choice for various applications.

Features and Benefits:

    •PUSH IN wire connection method with a push button.

    •Suitable for 4 poles.

    •Designed for PCB mounting with THT/THR solder connections.

    •Compliant with RoHS regulations.

Specifications:

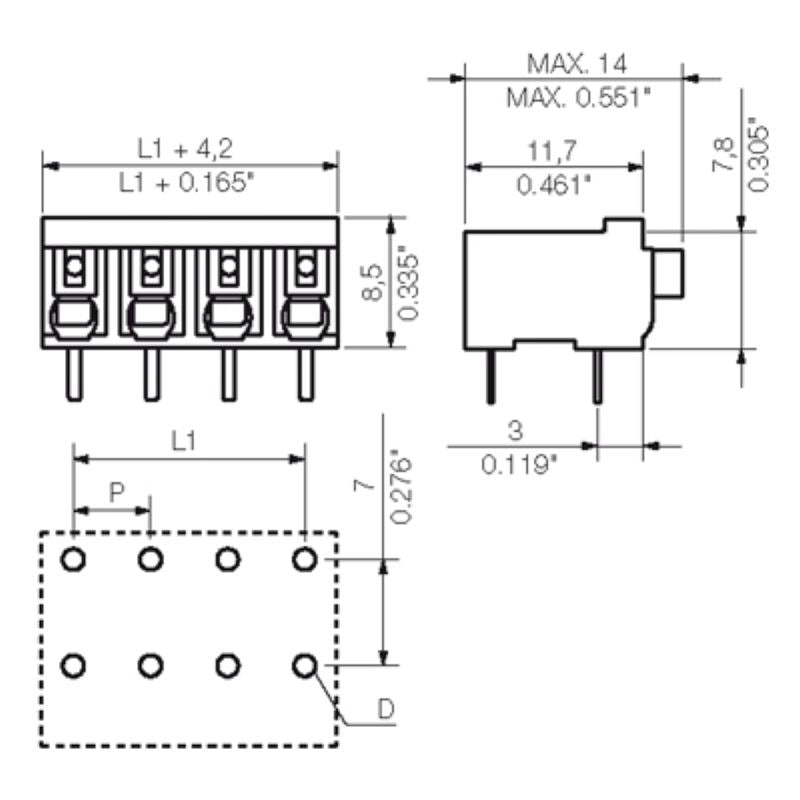

 Depth 14.75 mm
 Height 10 mm
 Width 19.2 mm

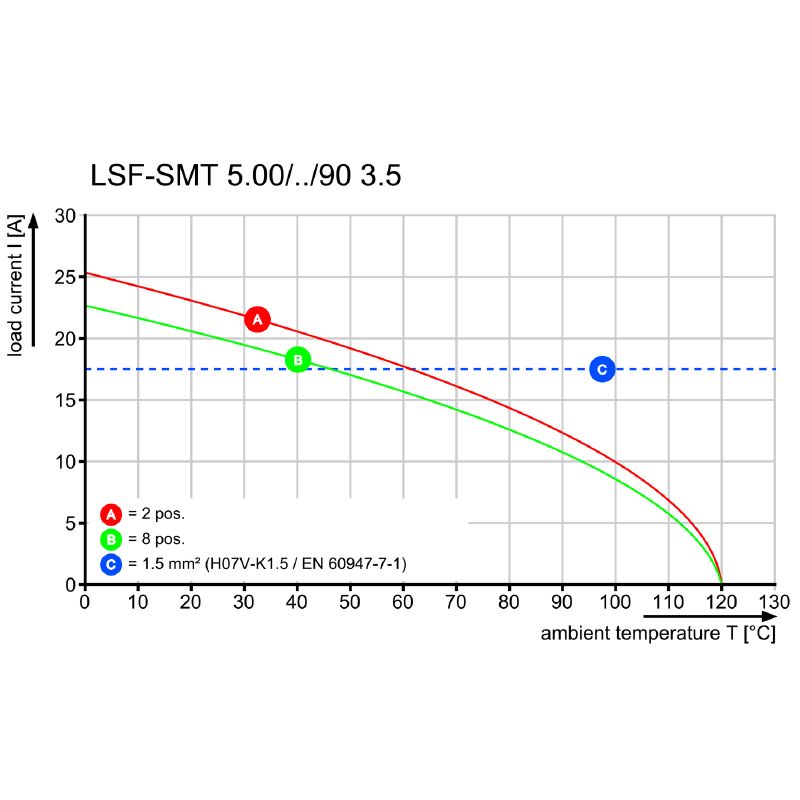

 Continuous operating temperature, max 120 °C
 Rated voltage (IEC) 500 V
 Rated current (IEC) 17.5 A
 Solder pin dimensions 0.35 x 0.8 mm
 Material Copper alloy
 Insulating material LCP GF
 Pin series quantity 1
 Number of rows 1
 Pitch 5 mm
 Volume resistance 1.60 mΩ
 Storage temperature, min -40 °C
 Storage temperature, max 70 °C
