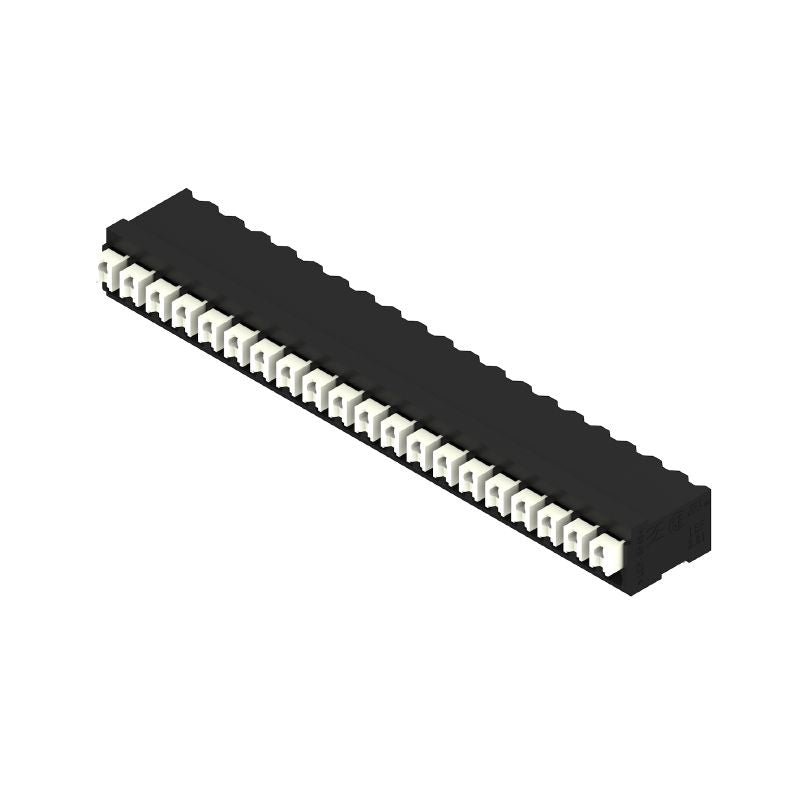

1869550000 - Black 3.81mm PCB Terminal Block with 20 Poles and Push Button (Pack of 7)

1869550000 - Black 3.81mm PCB Terminal Block with 20 Poles and Push Button (Pack of 7)

SKU: SKU: 1869550000   Download PDF

Select a Variant:
  • 1869550000 - Black 3.81mm PCB Terminal Block with 20 Poles and Push Button (Pack of 7)
Qty:
Regular price Now $36.04   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $36.04 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing our printed circuit board terminal, designed for efficiency and reliability With a compact 381 mm pitch, this component includes 20 poles and features solder pins measuring 15 mm in length, all finished in a sleek black color The terminal uses a PUSH IN connection system enhanced with a convenient push button, capable of accommodating wire sizes up to 15 mm² Each unit is packaged in a protective tube and adheres to ROHS compliance standards, ensuring safety and environmental responsibility.

Features and Benefits:

    •PUSH IN wire connection method with a push button.

    •Compliant with ROHS standards.

    •Packaged in a tube for easy handling and organization.

Specifications:

 Depth 14.75 mm
 Height 10 mm
 Width 76.59 mm
 Continuous operating temperature, max 120 °C
 Rated current (IEC) 17.5 A
 Rated voltage (UL) 300 V
 Volume resistance 1.60 mΩ
 Insulating material LCP GF
 Flammability rating V-0
 Storage temperature, min -40 °C
 Storage temperature, max 70 °C
