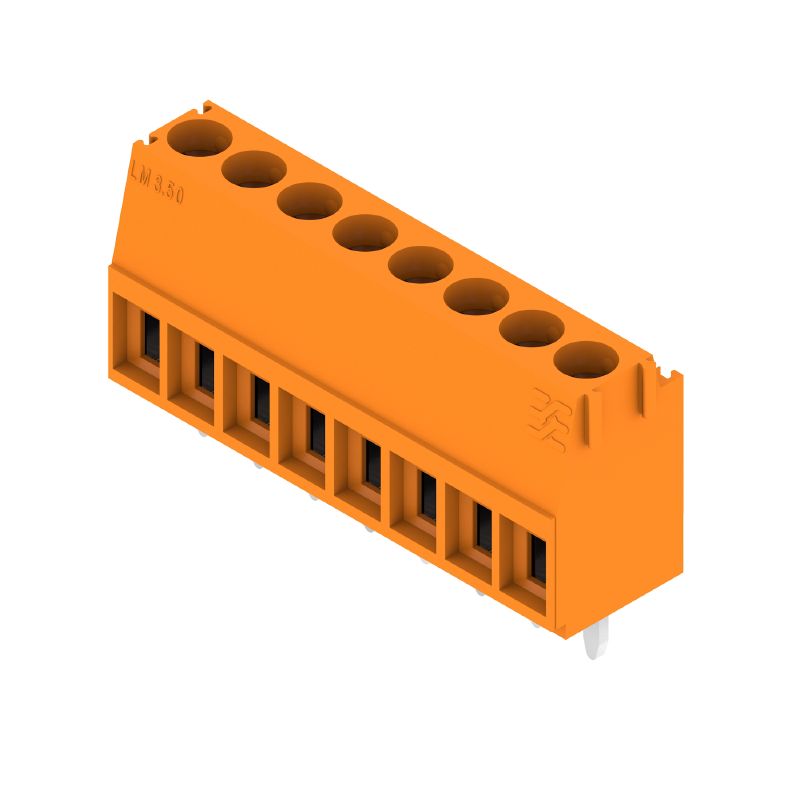

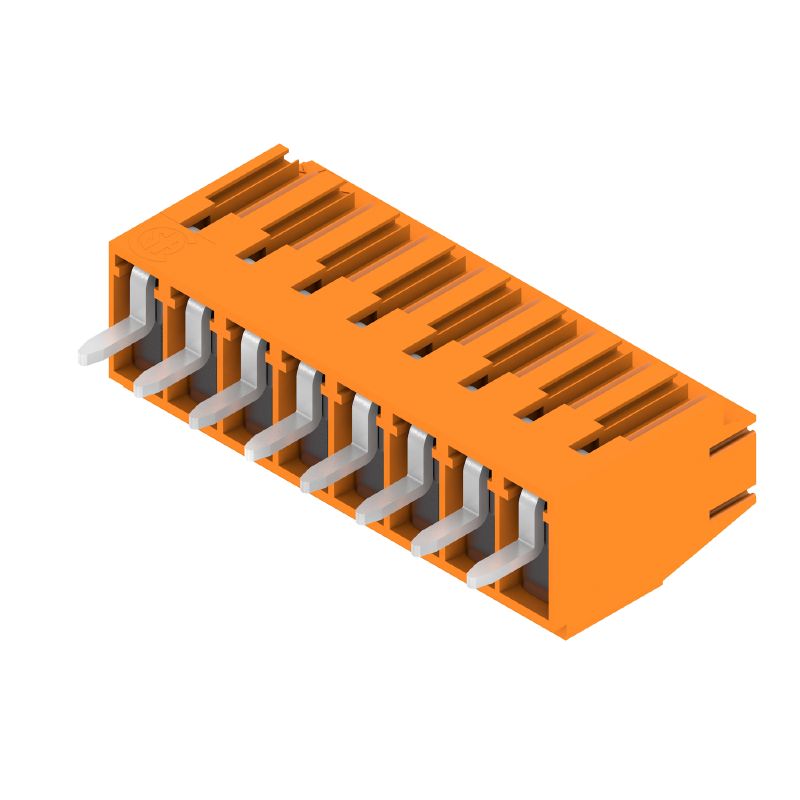

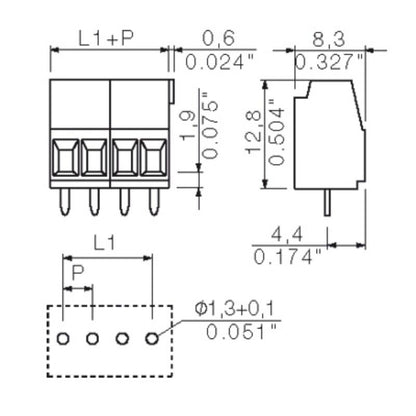

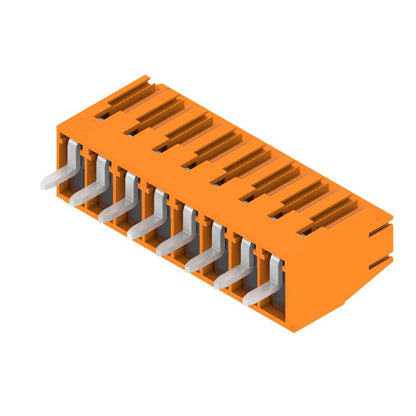

1845070000 - 3.50mm PCB Terminal, 8 Poles, 90° Angle, 3.2mm Pins (Pack of 60)

1845070000 - 3.50mm PCB Terminal, 8 Poles, 90° Angle, 3.2mm Pins (Pack of 60)

SKU: SKU: 1845070000   Download PDF

Select a Variant:
  • 1845070000 - 3.50mm PCB Terminal, 8 Poles, 90° Angle, 3.2mm Pins (Pack of 60)
Qty:
Regular price Now $205.40   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $205.40 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a robust printed circuit board terminal, expertly crafted with a 350 mm pitch and featuring eight poles positioned at a 90° angle This component is equipped with 32 mm solder pins that are elegantly tinned in a striking orange color Its connection mechanism is facilitated by a clamping yoke, offering a maximum clamping capacity of 208 mm² Packaged securely in a box, this terminal complies with both IEC and UL standards, ensuring reliable performance with a rated voltage of 320 V and a current capacity of 16 A.

Features and Benefits:

    •Clamping yoke connection method.

    •THT solder connection for PCB mounting.

    •Safe from finger touch protection.

    •Insulating material made of PA.

    •Compact dimensions suited for space-constrained designs.

Specifications:

 Rated voltage (IEC) 320 V
 Rated current (IEC) 16 A
 Number of poles 8
 Pitch 3.5 mm
 Solder pin length 3.2 mm
 Clamping range 0.08 - 2.08 mm²
 Operating temperature range -50 °C to 100 °C
 Storage temperature range -40 °C to 70 °C
 IP Protection degree IP20
 Electrical resistance 3.60 mΩ
 Insulation resistance ≥ 10^8 Ω
