1845040000 - 3.50mm Orange 4-Pole PCB Terminal with 3.2mm Pins (Pack of 126)

1845040000 - 3.50mm Orange 4-Pole PCB Terminal with 3.2mm Pins (Pack of 126)

SKU: SKU: 1845040000   Download PDF

Select a Variant:
  • 1845040000 - 3.50mm Orange 4-Pole PCB Terminal with 3.2mm Pins (Pack of 126)
Qty:
Regular price Now $215.70   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $215.70 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Explore reliable connectivity with this four-pole printed circuit board terminal, featuring a pitch of 350 mm Engineered for a 90-degree connection, it boasts a solder pin length of 32 mm and comes with a vibrant tinned orange finish With a maximum clamping capacity of 208 mm², this terminal is neatly packaged in a box, ready for various applications .

Features and Benefits:

    •Complies with RoHS without any exemptions.

    •Enables easy wire connections with a clamping yoke method.

    •Suitable for THT solder connection.

    •Touch-safe protection according to DIN VDE standards.

Specifications:

 Clamping screw M 2
 Pin series quantity 1
 Number of rows 1
 Max. adjacent poles per row 24

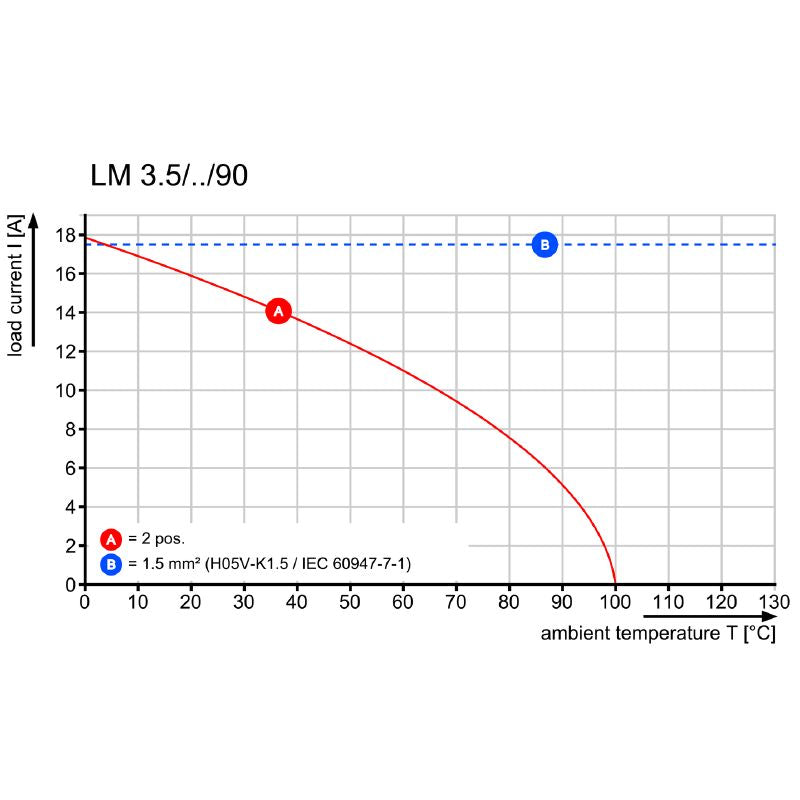

 Rated current (Tu=20°C) 16 A
 Rated voltage 320 V
 Operating temperature -50 °C to 100 °C
 Insulating material PA
 Insulation resistance ≥ 10^8 Ω
 Volume resistance 3.60 mΩ
 UL voltage rating 300 V
 Storage temperature -40 °C to 70 °C
