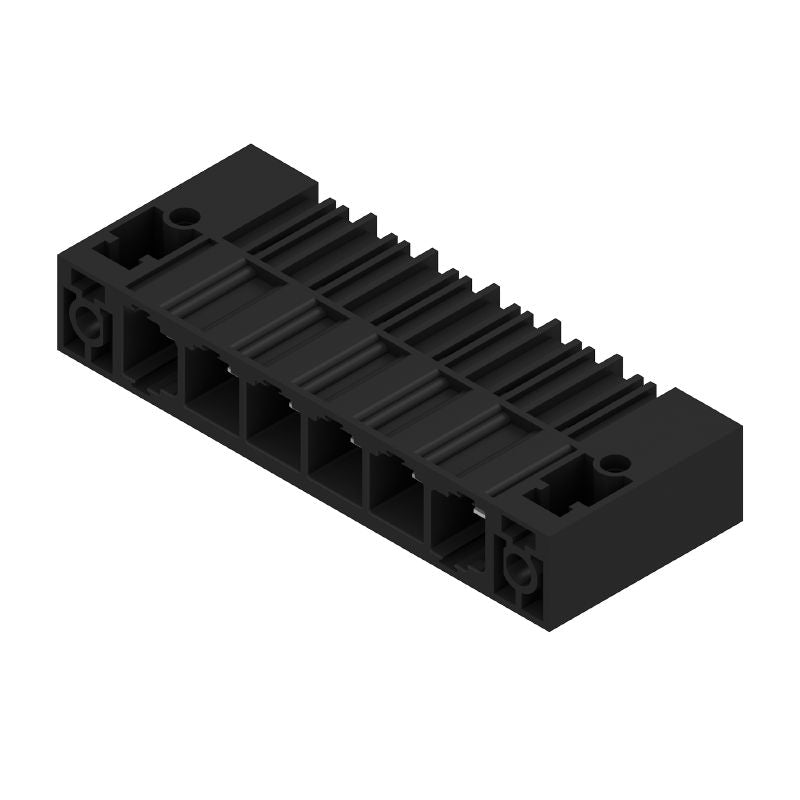

1813610000 - 10.16mm Male Header Connector, 6-Pole, RoHS Compliant (Pack of 18)

1813610000 - 10.16mm Male Header Connector, 6-Pole, RoHS Compliant (Pack of 18)

SKU: SKU: 1813610000   Download PDF

Select a Variant:
  • 1813610000 - 10.16mm Male Header Connector, 6-Pole, RoHS Compliant (Pack of 18)
Qty:
Regular price Now $184.58   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $184.58 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a durable PCB plug-in connector designed for male headers, featuring a clip-on flange for secure THT solder connections This connector has a pitch of 1016 mm and supports six poles arranged at a 90-degree angle The solder pins measure 35 mm in length and come with a silver-plated finish for enhanced conductivity Packaged in a convenient box, this component meets RoHS compliance standards, ensuring it is safe and environmentally friendly.

Features and Benefits:

    •Compliant with RoHS standards.

    •Safe from finger touch when plugged in per DIN VDE 57 106.

    •Mounting onto the PCB with THT solder connection.

    •Can be coded for specific applications.

    •Designed for a variety of mounting procedures.

Specifications:

 Rated Voltage (IEC) 1000 V
 Rated Current (IEC) 78.3 A
 Solder Pin Dimensions 1.2 x 1.1 mm
 Storage Temperature -40 to 70 °C
 Operating Temperature -50 to 120 °C
 Number of Poles 6
 Number of Solder Pins per Pole 3
 Volume Resistance 2.00 mΩ
 Touch-Safe Protection IP20 plugged
 Clearance (Min) 8.9 mm
 Creepage Distance (Min) 10.5 mm
