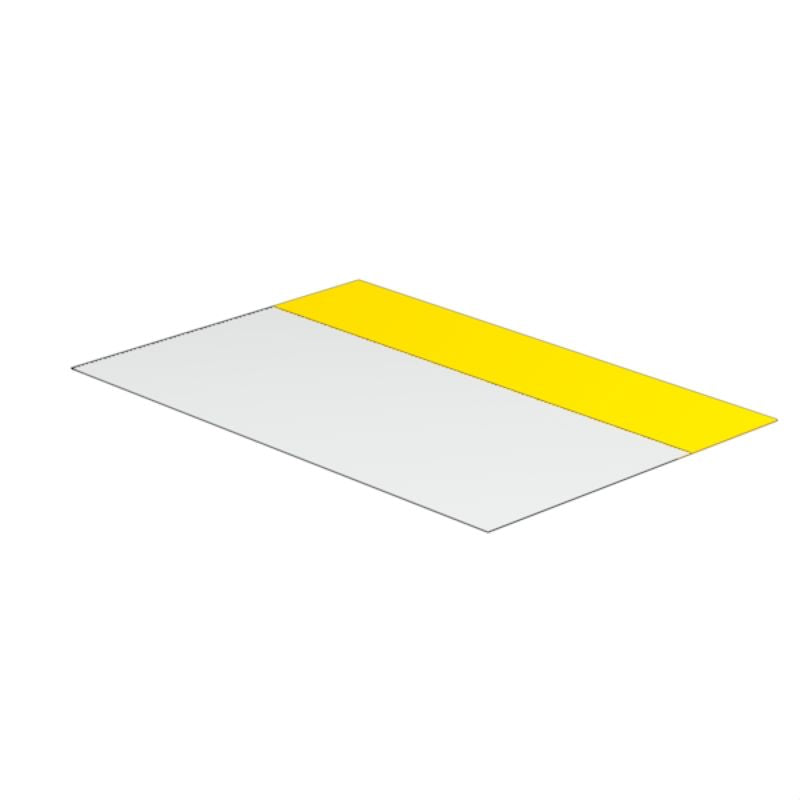

1768430000 - Yellow 37x25mm Self-Adhesive Cable Markers, RoHS Compliant (Pack of 10)

1768430000 - Yellow 37x25mm Self-Adhesive Cable Markers, RoHS Compliant (Pack of 10)

SKU: SKU: 1768430000 Download PDF

Variant:
  • 1768430000 - Yellow 37x25mm Self-Adhesive Cable Markers, RoHS Compliant (Pack of 10)
Regular price Now $123.71
Regular price BEFORE   $0.00 Sale price Now $123.71
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the LM WO 37/25 GE self-adhesive conductor and cable marker, measuring 37 mm x 25 mm and compliant with RoHS regulations These vibrant yellow markers are specially crafted for cables with an outer diameter between 34 mm and 48 mm Each sheet consists of 55 individual markers, and a complete package provides a total of 550 markers Designed to endure temperatures from -40 to 150 degrees Celsius, these markers offer reliability and performance in various environments.

Features and Benefits:

    •Self-adhesive design.

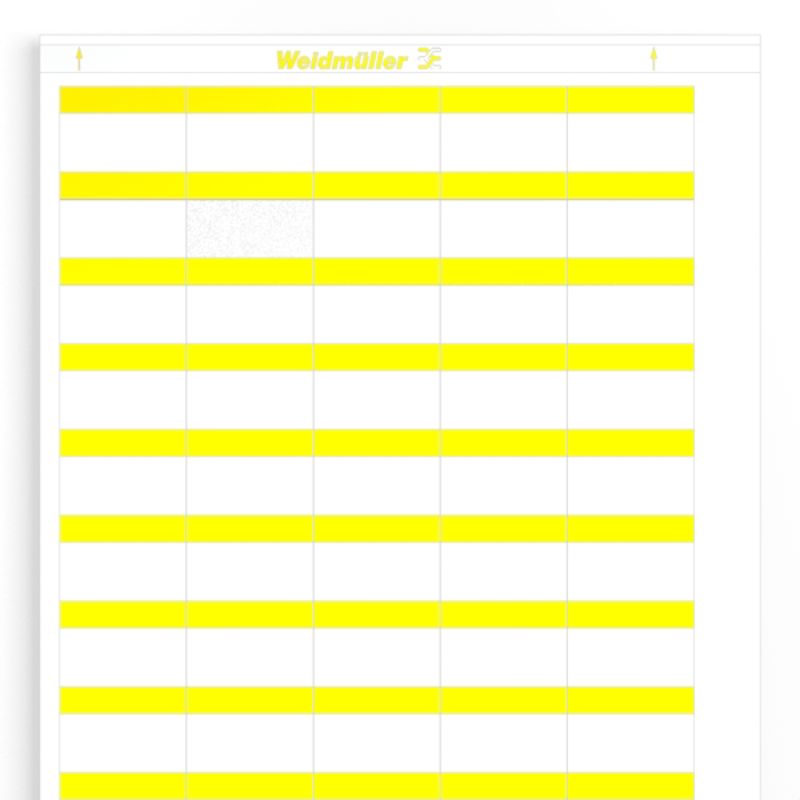

    •Contains 55 markers per sheet.

    •Each packaging unit contains 550 markers.

    •Suitable for cables with a conductor outside diameter of 3.4 - 4.8 mm.

    •No halogen content.

Specifications:

 Depth 0.025 mm
 Height 37 mm
 Width 25 mm
 Net weight 8.976 g
 Operating temperature range -40...150 °C
 Adhesive Acrylate
 Basic material Polyester film
 Conductor cross-section, max 6 mm²
 Conductor cross-section, min 2.5 mm²
 Text field height 8 mm
 Text field width 35.5 mm
 UL 94 flammability rating V-0
 Number of markers per combination 55
 Number per sheet 55
 Form of supply Label sheet
