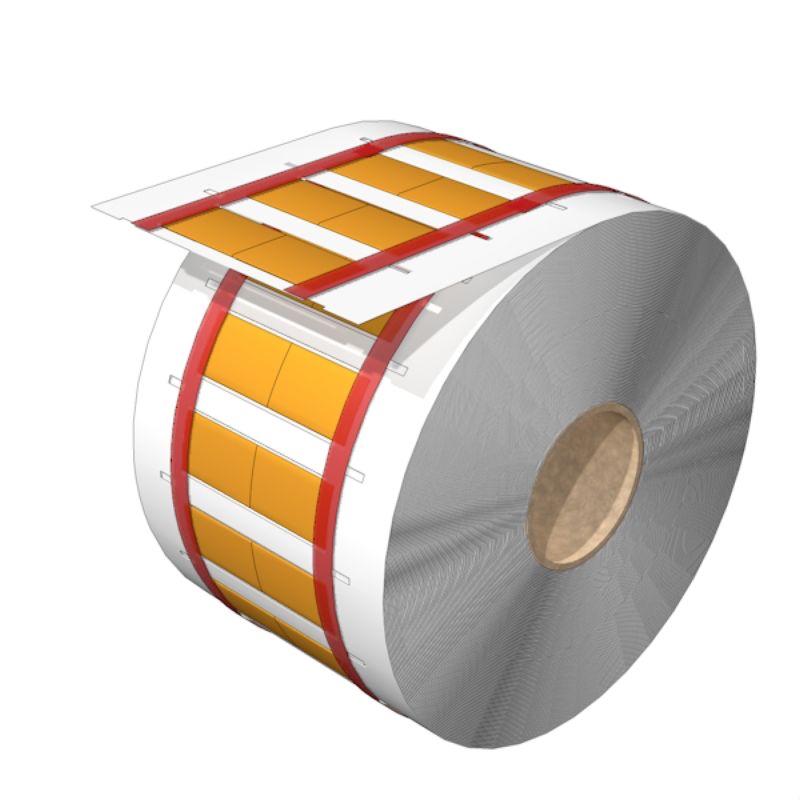

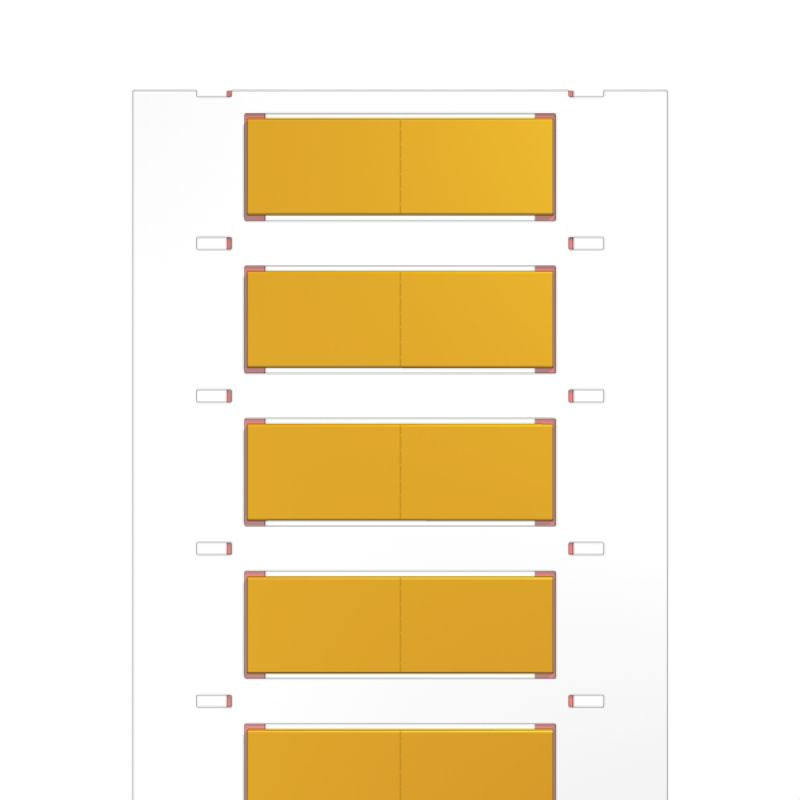

2621650000 - Yellow Cable Markers for 4.8-9.5 mm, 24.9x15.1 mm (Pack of 1000)

2621650000 - Yellow Cable Markers for 4.8-9.5 mm, 24.9x15.1 mm (Pack of 1000)

SKU: SKU: 2621650000 Download PDF

Variant:
  • 2621650000 - Yellow Cable Markers for 4.8-9.5 mm, 24.9x15.1 mm (Pack of 1000)
Regular price Now $949.61
Regular price BEFORE   $0.00 Sale price Now $949.61
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our conductor and cable markers, expertly crafted for wire sizes between 48 mm and 95 mm Each marker measures 249 mm by 151 mm and comes in a vibrant yellow color Designed to withstand extreme conditions, they operate effectively between temperatures of -55 °C and 125 °C Fully compliant with RoHS standards, these markers contain no SVHC above 01 weight percentage Constructed from durable polyolefine, they can easily be printed using compatible printers, making them a versatile choice for your marking needs.

Features and Benefits:

    •Made from polyolefine.

    •Compatible with THM MULTIMARK, THM MULTIMARK PLUS, and THM-TWINMARK printers.

    •Compliant with RoHS regulations.

    •Neutral type of printing.

Specifications:

 Depth 0.77 mm
 Height 24.9 mm
 Width 15.1 mm
 Operating temperature range -55...125 °C
 Number per roll 1000
 Conductor O.D. 4.8 - 9.5 mm
 Conductor cross-section, min. 4 mm²
 Conductor cross-section, max. 16 mm²
 Rate of shrinkage 2:1
 Recommended shrinking temperature 90 °C
 Wire connection cross section AWG, min. AWG 12
 Wire connection cross section AWG, max. AWG 6
