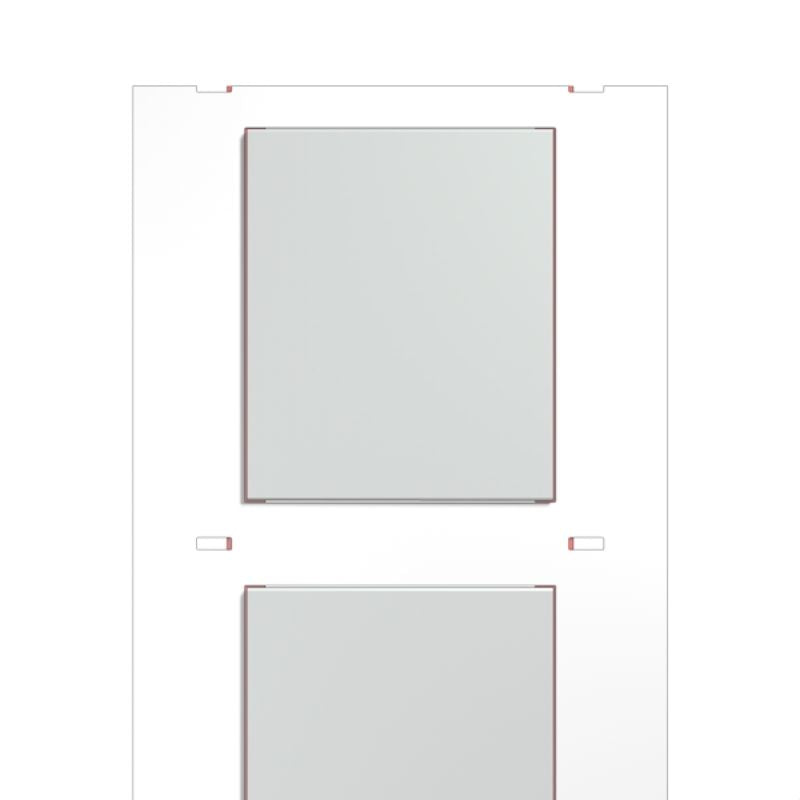

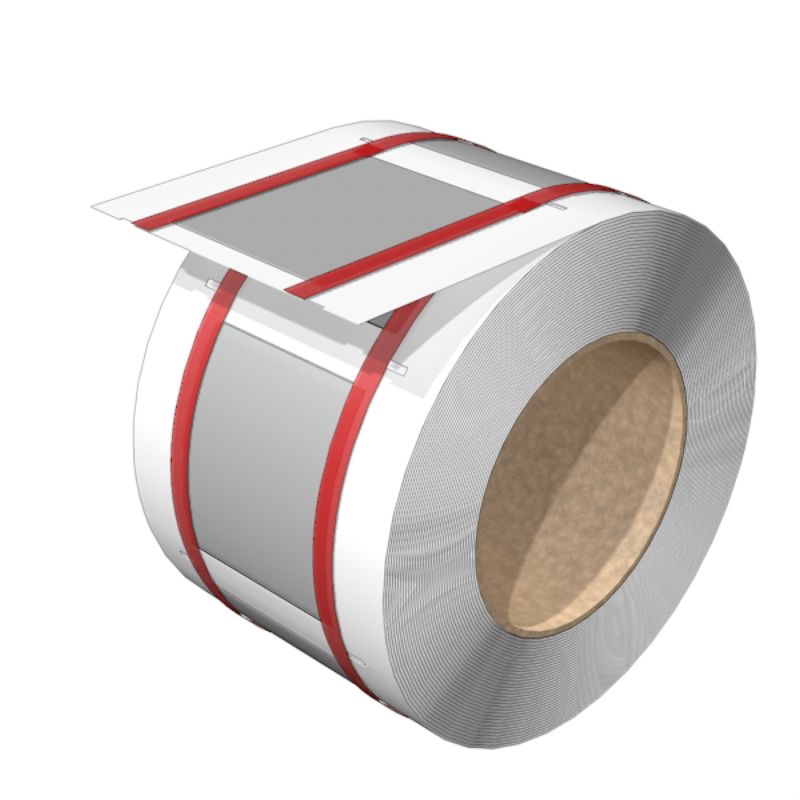

2621900000 - White Cable Markers, 49.8x60.8mm, for 19.1-38.1mm Sizes (Pack of 100)

2621900000 - White Cable Markers, 49.8x60.8mm, for 19.1-38.1mm Sizes (Pack of 100)

SKU: SKU: 2621900000 Download PDF

Variant:
  • 2621900000 - White Cable Markers, 49.8x60.8mm, for 19.1-38.1mm Sizes (Pack of 100)
Regular price Now $461.90
Regular price BEFORE   $0.00 Sale price Now $461.90
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HS-FR conductor and cable marker, engineered to accommodate cable sizes from 191 mm to 381 mm Each marker measures 498 mm by 608 mm and features a clean white design This marker adheres to RoHS compliance without exceptions and contains no SVHCs above 01 wt% Supplied in convenient rolls of 100, the HS-FR is built to endure temperatures ranging from -55°C to 125°C It is compatible with various printers, including the THM MULTIMARK, THM MULTIMARK PLUS, and THM-TWINMARK.

With a capacity for conductor cross-sections between 70 mm² and 240 mm², this marker is an essential tool for your wiring needs.

Features and Benefits:

    •Compliant with RoHS.

    •Compatible with specific printers.

    •100 markers per roll.

    •Printed characters without.

    •Neutral type of printing.

    •Halogen-free.

    •Rate of shrinkage is 2:1.

Specifications:

 Conductor O.D. 19.1 - 38.1 mm
 Conductor cross-section, max. 240 mm²
 Conductor cross-section, min. 70 mm²
 Size of labelling field 60.8 x 49.8 mm
 Operating temperature range -55...125 °C
 Recommended shrinking temperature 90 °C
 Wire connection cross section AWG, max. AWG 450 MCM
 Wire connection cross section AWG, min. AWG 2/0
