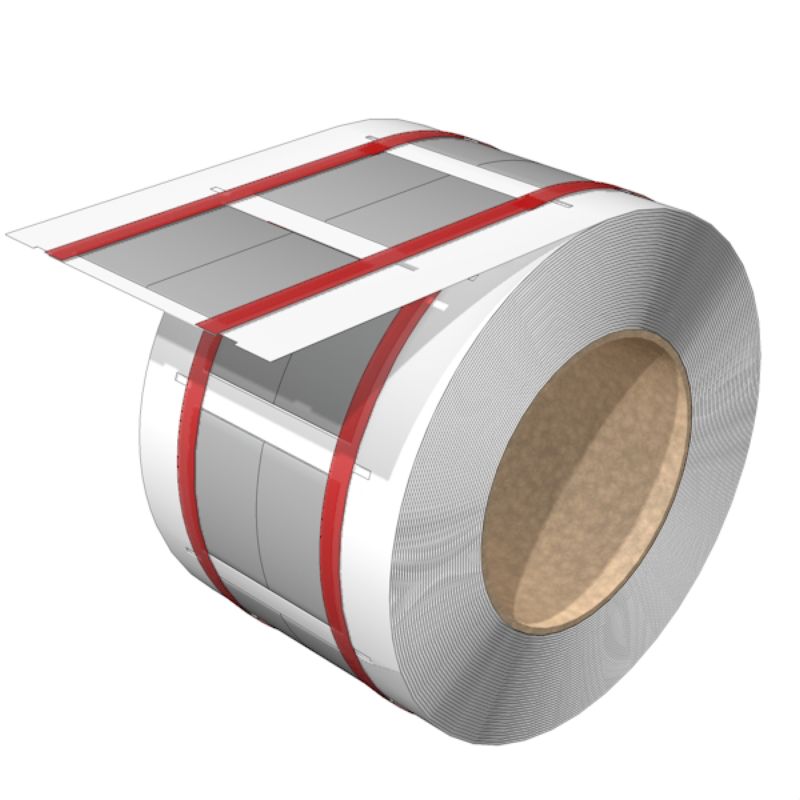

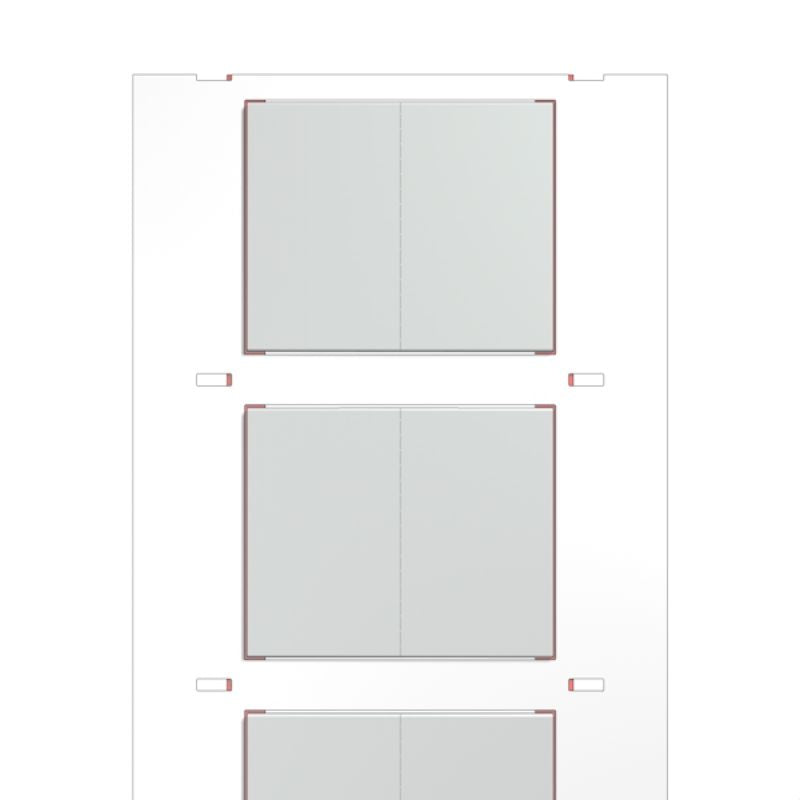

2621700000 - 12.7-25.4mm White Cable Markers, 400 Count (Pack of 400)

2621700000 - 12.7-25.4mm White Cable Markers, 400 Count (Pack of 400)

SKU: SKU: 2621700000 Download PDF

Variant:
  • 2621700000 - 12.7-25.4mm White Cable Markers, 400 Count (Pack of 400)
Regular price Now $601.00
Regular price BEFORE   $0.00 Sale price Now $601.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your cable organization with our conductor and cable markers, designed for a range of applications These markers come in a classic white color, with dimensions measuring 249 x 405 mm and suitable for conductor widths of 127 to 254 mm Each roll contains 400 markers, making it an excellent choice for extensive labeling needs Compliant with RoHS regulations, this product will be available only until August 31, 2025, so don’t miss the chance to stock up!.

Features and Benefits:

    •Compatible with THM MULTIMARK, THM MULTIMARK PLUS, and THM-TWINMARK printers.

    •Made from polyolefine material.

    •Contains no halogen.

    •Rate of shrinkage is 2:1.

    •Recommended shrinking temperature is 90 °C.

Specifications:

 Operating temperature range -55...125 °C
 Conductor cross-section, max 120 mm²
 Conductor cross-section, min 35 mm²
 Conductor O.D. 12.7 - 25.4 mm
 Conductor O.D., max 25.4 mm
 Conductor O.D., min 12.7 mm
 Cross-section for connected wire 35 - 120 mm²
 Wire connection cross section AWG, max AWG 4/0
 Wire connection cross section AWG, min AWG 2
 Size of labelling field 40.5 x 24.9 mm
 Printed characters without
