2657200000 - Self-Adhesive Cable Markers 25.4mm x 63.5mm, RoHS Compliant (Pack of 2000)

2657200000 - Self-Adhesive Cable Markers 25.4mm x 63.5mm, RoHS Compliant (Pack of 2000)

SKU: SKU: 2657200000 Download PDF

Variant:
  • 2657200000 - Self-Adhesive Cable Markers 25.4mm x 63.5mm, RoHS Compliant (Pack of 2000)
Regular price Now $513.88
Regular price BEFORE   $0.00 Sale price Now $513.88
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

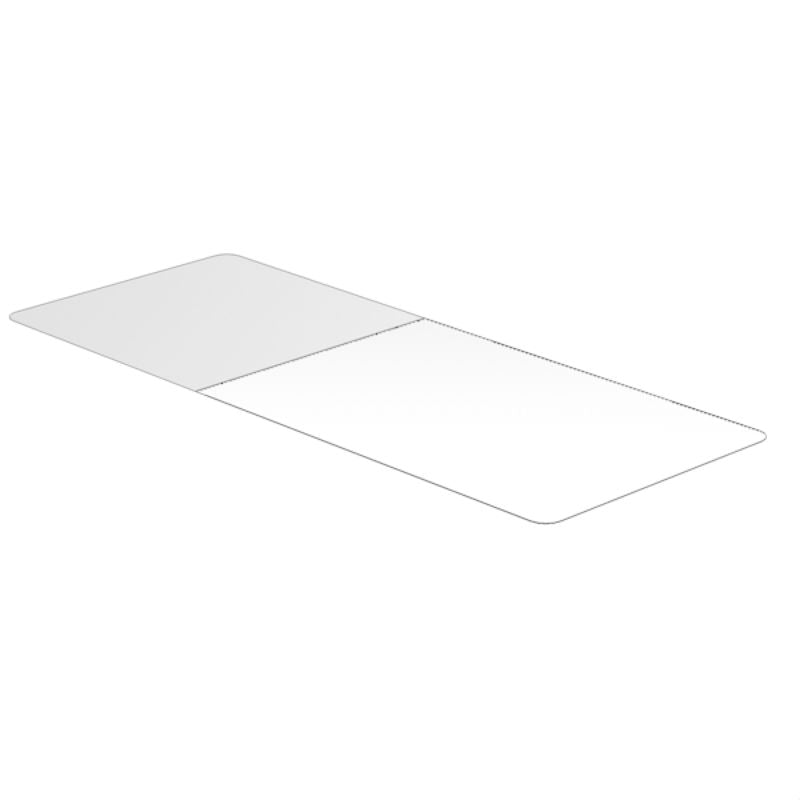

Introducing the THM WO VIN 254/635 WS, an efficient solution for labeling conductors and cables With a height of 254 mm and a width of 635 mm, these white self-adhesive markers utilize a robust polyacrylate adhesive for secure placement Each label reel contains an impressive 2000 markers, ensuring you have plenty on hand Fully compliant with RoHS standards and free from SVHC content exceeding 01 wt%, these markers are a safe choice for any project.

They operate effectively in temperatures ranging from -40 to 80 °C, making them versatile for various applications The characters are prominently printed through thermal transfer, and the markers boast a V-0 flammability rating in accordance with UL 94, ensuring both safety and quality.

Features and Benefits:

    •Self-adhesive with polyacrylate adhesive.

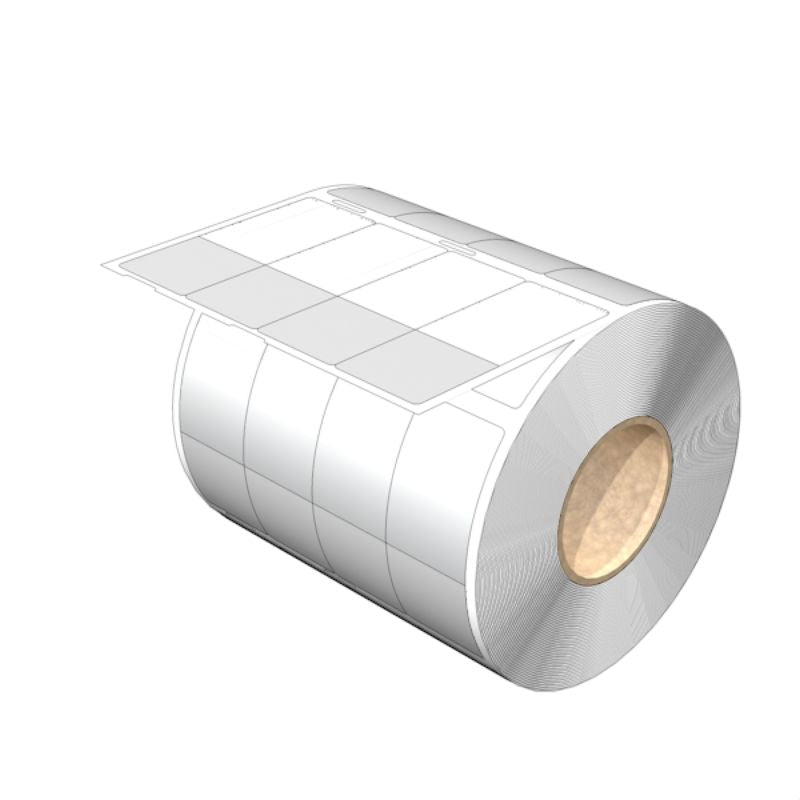

    •Supplied in a label reel with 2000 markers.

    •RoHS compliant without exemption.

    •Wide operating temperature range of -40 to 80 °C.

    •V-0 flammability rating.

    •Marking of conductors and cables.

Specifications:

 Depth 0.07 mm
 Height 25.4 mm
 Width 63.5 mm
 Conductor cross-section, max 113 mm²
 Conductor O.D. 8 - 12 mm
 Wire connection cross section AWG, max AWG 2
 Wire connection cross section AWG, min AWG 6
 Approval acc. to UL 969 No
 Basic material Vinyl film
 Compatible printer THM MULTIMARK, THM MULTIMARK PLUS
 Printing method Thermal transfer
 Type of printing neutral
 Halogen Yes
