2719170000 - White Cable Markers for 2.5-3.3 mm Conductors, 700 Count (Pack of 700)

2719170000 - White Cable Markers for 2.5-3.3 mm Conductors, 700 Count (Pack of 700)

SKU: SKU: 2719170000 Download PDF

Variant:
  • 2719170000 - White Cable Markers for 2.5-3.3 mm Conductors, 700 Count (Pack of 700)
Regular price Now $119.69
Regular price BEFORE   $0.00 Sale price Now $119.69
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

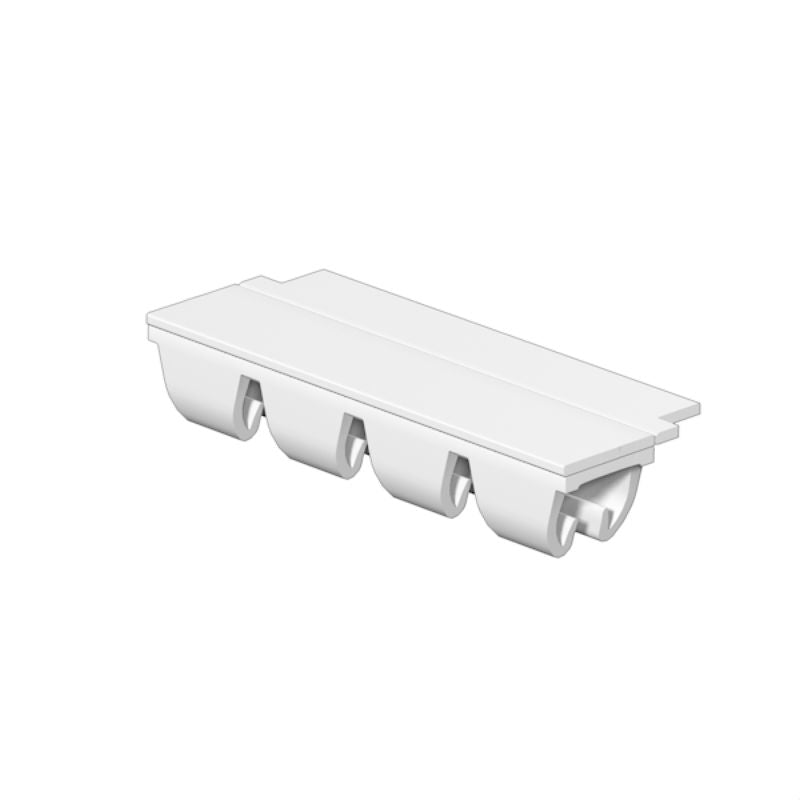

Introducing SlimFix Conductor and Cable Markers, expertly crafted for conductor sizes ranging from 25 mm to 33 mm Each marker measures 24 x 54 mm and comes in a classic white color Designed with compliance to RoHS standards, these markers are not only functional but also environmentally friendly Each roll contains 700 markers, featuring both vertical and horizontal printing options Made from durable PC-ABS and TPU materials, they ensure reliability and versatility for your wiring needs.

Features and Benefits:

    •Operating temperature range from -50 °C to 90 °C.

    •Flammability rating of UL 94 V-2.

    •Printed characters without labeling.

    •Compatible with THM MULTIMARK printer.

    •Snap-in foot design.

Specifications:

 Height 24 mm
 Width 5.4 mm
 Conductor cross-section, max. 2.5 mm²
 Conductor cross-section, min. 1.5 mm²
 Conductor O.D. 2.5 - 3.3 mm
 Classifications {'ETIM 6.0': 'EC001530', 'ETIM 7.0': 'EC001530', 'ETIM 8.0': 'EC001530', 'ETIM 9.0': 'EC001530', 'ETIM 10.0': 'EC001530', 'ECLASS 9.0': '27-40-04-01', 'ECLASS 9.1': '27-40-04-01', 'ECLASS 10.0': '27-40-04-01', 'ECLASS 11.0': '27-28-11-02', 'ECLASS 12.0': '27-28-11-02', 'ECLASS 13.0': '27-28-11-02', 'ECLASS 14.0': '27-28-11-02', 'ECLASS 15.0': '27-28-11-02'}
