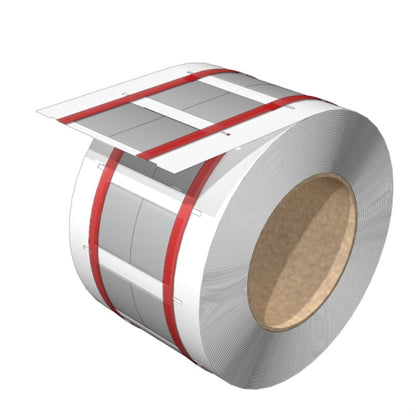

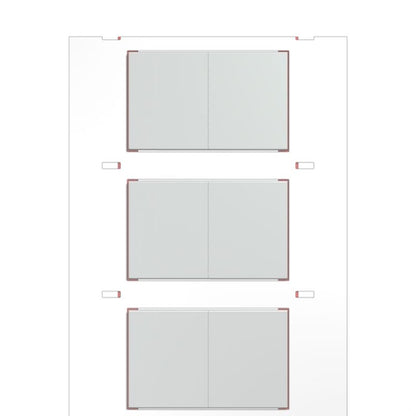

2621680000 - White Cable Marker 9.5-19.1mm, RoHS Approved, 800 per Roll (Pack of 800)

2621680000 - White Cable Marker 9.5-19.1mm, RoHS Approved, 800 per Roll (Pack of 800)

SKU: SKU: 2621680000 Download PDF

Variant:
  • 2621680000 - White Cable Marker 9.5-19.1mm, RoHS Approved, 800 per Roll (Pack of 800)
Regular price Now $1,090.16
Regular price BEFORE   $0.00 Sale price Now $1,090.16
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HS-FR 95-191/25 MM W conductor and cable marker, perfect for various applications with a conductor diameter of 95 to 191 mm This marker boasts dimensions of 249 x 304 mm and is presented in a clean white color It is RoHS compliant, with no substances of very high concern (SVHC) present Each roll contains 800 markers, and while this product will not be restocked in the future, it will remain available until August 31, 2025.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Compatible with THM MULTIMARK, THM MULTIMARK PLUS, and THM-TWINMARK printers.

    •No halogen content.

Specifications:

 Depth: 0.77 mm
 Height: 24.9 mm
 Width: 30.4 mm
 Operating temperature range: -55...125 °C
 Conductor cross-section, max: 70 mm²
 Conductor cross-section, min: 16 mm²
 Conductor O.D.: 9.5 - 19.1 mm
 Rate of shrinkage: 2:1
 Recommended shrinking temperature: 90 °C
 Wire connection cross section AWG, max: AWG 2/0
 Wire connection cross section AWG, min: AWG 6
 Number per roll: 800
