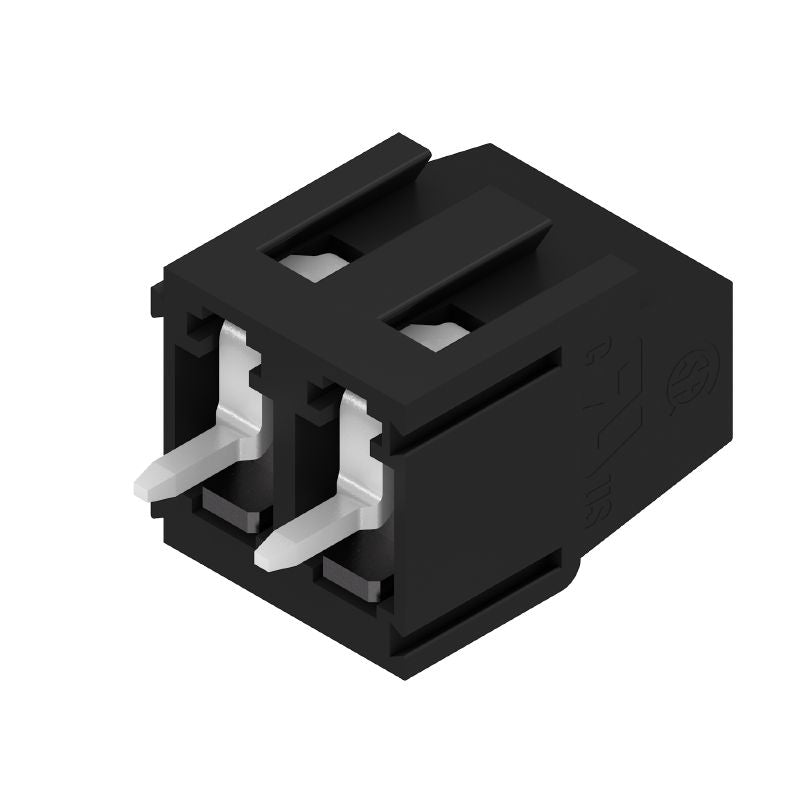

1716020000 - 5.08mm 2-Pole PCB Terminal with Tinned Pins (Pack of 500)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the LM 508/02/90 35SN BK BX, an expertly crafted printed circuit board terminal featuring a 508 mm spacing and two poles angled at 90° This component comes with tinned solder pins measuring 35 mm in length and showcases a sleek black finish Designed for optimal performance, it includes a clamping yoke connection capable of accommodating wire sizes up to 25 mm² Additionally, it meets RoHS compliance standards and is UL certified (Certification No.

E60693), ensuring reliability and safety in your electronic applications.

Features and Benefits:

•Clamping yoke connection for secure wire connection.

•Deep dimensions of 10 mm and height of 17.3 mm.

•Lightweight design with a net weight of 2.462 g.

•Suitable for both solid and flexible conductors.

•Operates effectively across a wide temperature range from -50 °C to 120 °C.

•Touch-safe protection ensuring safety from finger touch.

Specifications:
