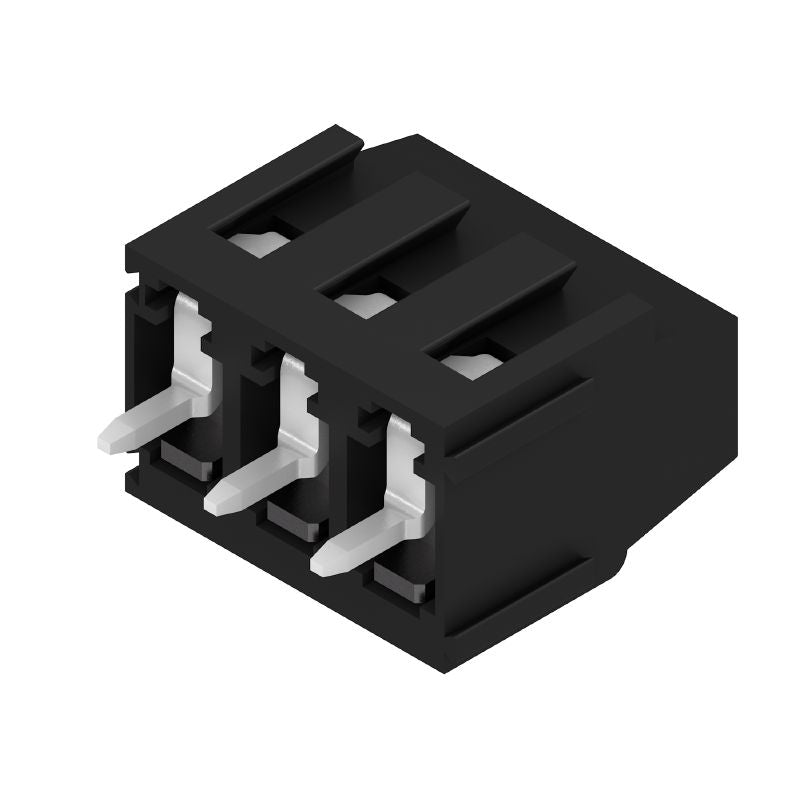

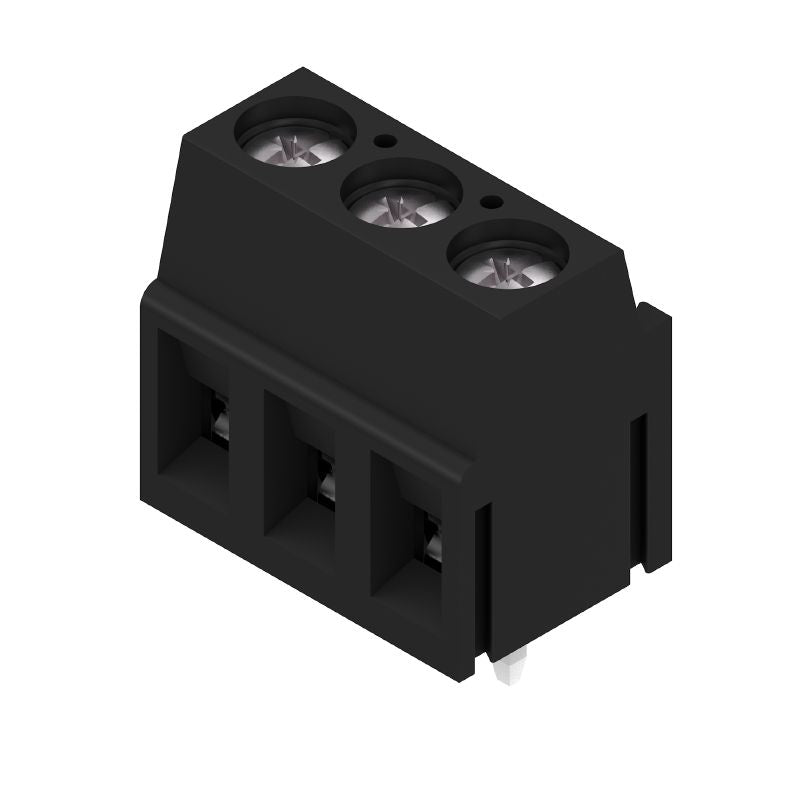

1715260000 - 5.00mm Pitch Terminal Block, 3 Poles, 90° Angle (Pack of 120)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our versatile printed circuit board terminals, featuring a 500 mm pitch and a practical 90° angle design with three poles Each terminal is equipped with a 35 mm solder pin and boasts a tinned black finish for enhanced durability These terminals utilize clamping yoke connections with a maximum clamping capacity of 25 mm², and are neatly packaged in a box for easy handling Engineered to meet IEC standards, they can handle voltages up to 630 V at 17.

5 A as well as UL standards for 300 V at 15 A, ensuring reliability and safety in your electronic applications.

Features and Benefits:

•Black color.

•Clamping yoke connection.

•Compact design with low profile.

•Easy to mount on PCB with THT solder connection.

•Touch-safe protection as per DIN VDE standards.

Specifications:
