1715030000 - 3.50mm Tinned Circuit Terminals, 135° Angle, 4.5mm Pins (Pack of 168)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

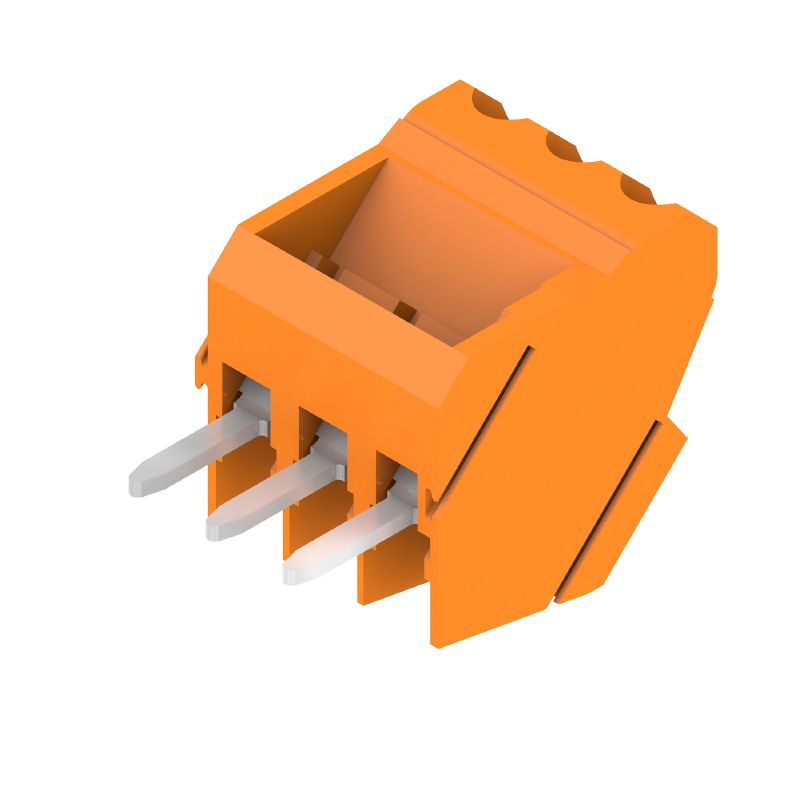

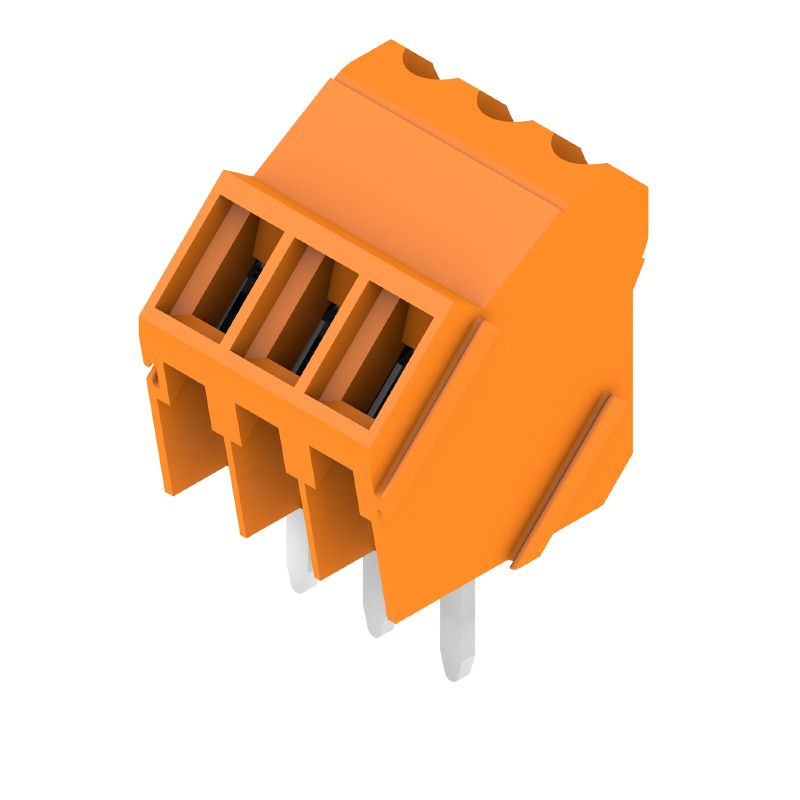

Experience reliable connections with these 350 mm printed circuit board terminals, designed with three poles and a unique 135° connection angle The solder pin extends to 45 mm, and the terminals come in an eye-catching orange hue, enhanced with a tinned finish Featuring a clamping yoke connection, they efficiently accommodate a maximum clamping range of 208 mm² These terminals are compliant with IEC standards for 320 V and 16 A, supporting wire sizes from 0.

5 to 15 mm², as well as UL ratings of 300 V and 10 A for AWG wire sizes ranging from 28 to 14.

Features and Benefits:

•Clamping yoke connection for secure wiring.

•Compliant with RoHS without exemptions.

•Rated for a wide range of wire cross sections.

•Compatible with various conductor types including solid and flexible wires.

•Touch-safe construction in accordance with standards.

Specifications:
