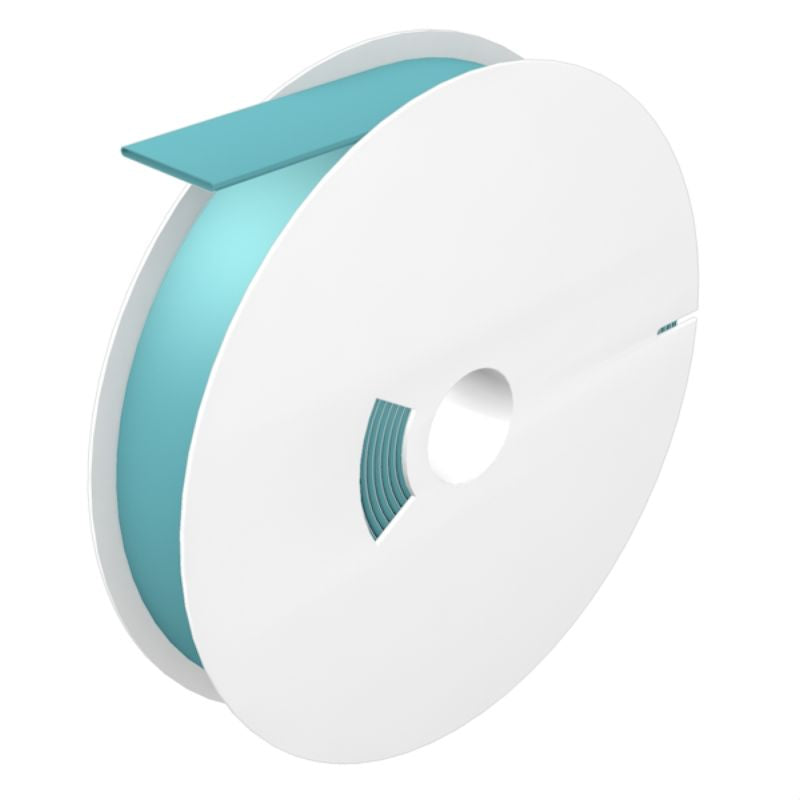

1562930000 - Blue Polyolefine Cable Marker for 12.7-25.4mm Conductors

1562930000 - Blue Polyolefine Cable Marker for 12.7-25.4mm Conductors

SKU: SKU: 1562930000 Download PDF

Variant:
  • 1562930000 - Blue Polyolefine Cable Marker for 12.7-25.4mm Conductors
Regular price Now $505.02
Regular price BEFORE   $0.00 Sale price Now $505.02
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HSS-HF 127-254EL B30M, the ideal solution for marking conductors and cables ranging from 127 mm to 254 mm in size This versatile item comes in a striking blue hue and adheres to stringent RoHS standards without exemptions Capable of withstanding extreme temperatures, it operates effectively between -55 °C and 105 °C Crafted from polyolefine, this product is halogen-free, providing a safer choice for your projects.

With an impressive length of 30,000 mm and a net weight of 1,3552 g, it offers excellent value for both professional and DIY uses.

Features and Benefits:

    •Conductor and cable markers range from 12.7 to 25.4 mm.

    •Operating temperature ranges from -55 °C to 105 °C.

    •Contains no halogens.

    •Compliant with RoHS without exemptions.

    •Recommended shrinking temperature is set at 90 °C.

Specifications:

 Depth 1.5 mm
 Depth (inches) 0.059 inch
 Width 40.5 mm
 Width (inches) 1.594 inch
 Length 30,000 mm
 Length (inches) 1,181.1 inch
 Conductor cross-section, max. 120 mm²
 Conductor cross-section, min. 35 mm²
 Conductor O.D. 12.7 - 25.4 mm
 Conductor O.D., max. 25.4 mm
 Conductor O.D., min. 12.7 mm
 Cross-section for connected wire 35 - 120 mm²
 Rate of shrinkage 2:1
 Number per roll 1
 Type of printing neutral
 Printed characters without
 Important note External roll holder 1302920000 necessary
