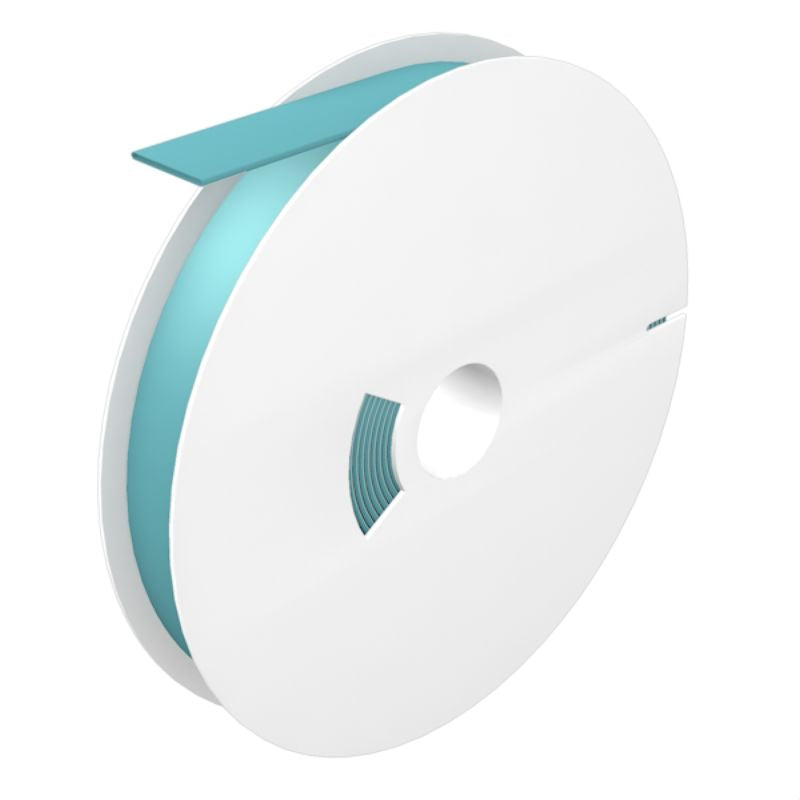

1562920000 - Polyolefin Cable Markers 30,000mm for 9.5-19.1mm Diameter

1562920000 - Polyolefin Cable Markers 30,000mm for 9.5-19.1mm Diameter

SKU: SKU: 1562920000 Download PDF

Variant:
  • 1562920000 - Polyolefin Cable Markers 30,000mm for 9.5-19.1mm Diameter
Regular price Now $355.15
Regular price BEFORE   $0.00 Sale price Now $355.15
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HSS-HF 95-191 EL B30M conductor and cable markers, expertly designed to accommodate diameters between 95 mm and 191 mm This product adheres to RoHS regulations, ensuring it is free of hazardous substances beyond safe limits With a generous length of 30,000 mm, it is made from durable polyolefin material For optimal use, an external roll holder is required, and this product functions efficiently across a temperature range of -55 to +105 degrees Celsius.

Ideal for enhancing organization and identification in various applications.

Features and Benefits:

    •RoHS compliant without exemption.

    •Net weight of 1,167 g.

    •Compatible with THM MULTIMARK, THM MULTIMARK PLUS, and THM-TWINMARK printers.

    •Halogen-free.

    •Rate of shrinkage of 2:1.

    •Recommended shrinking temperature of 90 °C.

Specifications:

 Conductor O.D. 9.5 - 19.1 mm
 Conductor cross-section, max. 70 mm²
 Conductor cross-section, min. 16 mm²
 Cross-section for connected wire 16 - 70 mm²
 Length 30,000 mm
 Width 30.9 mm
 Depth 1.5 mm
 Operating temperature range -55...105 °C
