1543340000 - 12-Pole 7.62mm Male Header Connector, THT Solder, Black (Pack of 21)

1543340000 - 12-Pole 7.62mm Male Header Connector, THT Solder, Black (Pack of 21)

SKU: SKU: 1543340000   Download PDF

Select a Variant:
  • 1543340000 - 12-Pole 7.62mm Male Header Connector, THT Solder, Black (Pack of 21)
Qty:
Regular price Now $265.11   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $265.11 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

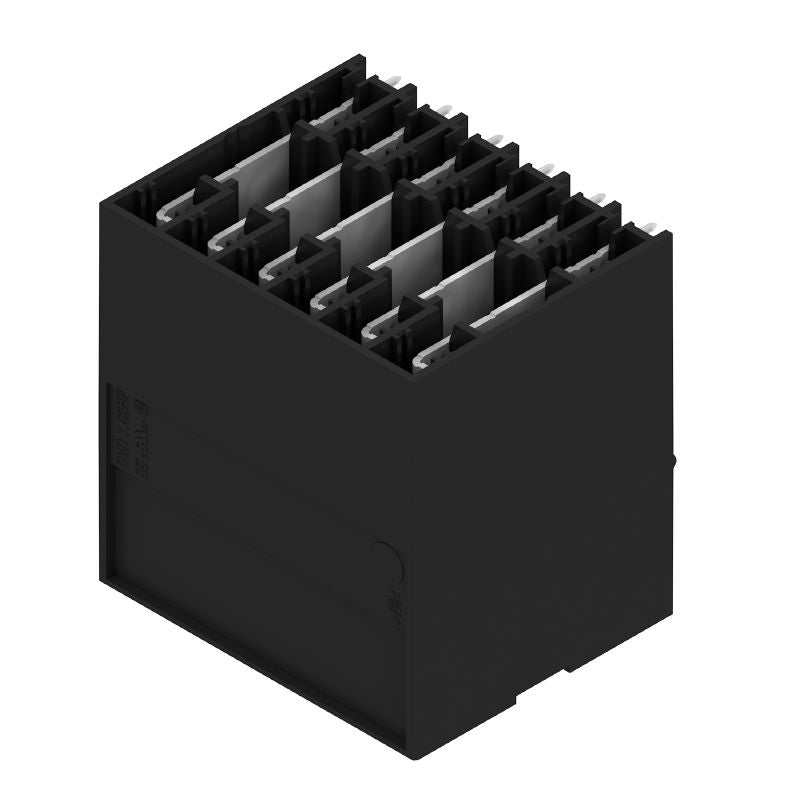

Introducing a male header plug-in connector characterized by its innovative closed side design, this component features through-hole technology (THT) for reliable solder connections Designed with a pitch of 762 mm, it consists of 12 poles arranged at a convenient 270° angle The solder pins, measuring 32 mm in length and finished with a tinned coating, ensure optimal performance Packaged in a striking black color, this connector is part of the OMNIMATE Power series, making it a practical choice for your electronic projects.

Features and Benefits:

    •RoHS compliant without exemption.

    •Touch-safe above the printed circuit board.

    •Can be coded.

    •5 A rated current for Use group D according to CSA.

    •25 plugging cycles.

Specifications:

 Type of connection Board connection
 Mounting onto the PCB THT solder connection
 Number of poles 12
 Pitch 7.62 mm
 Solder pin dimensions 0.8 x 1.0 mm
 Insulating material PA GF
 Operating temperature -50°C to 120°C

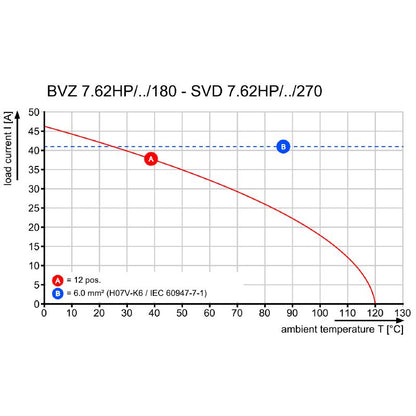

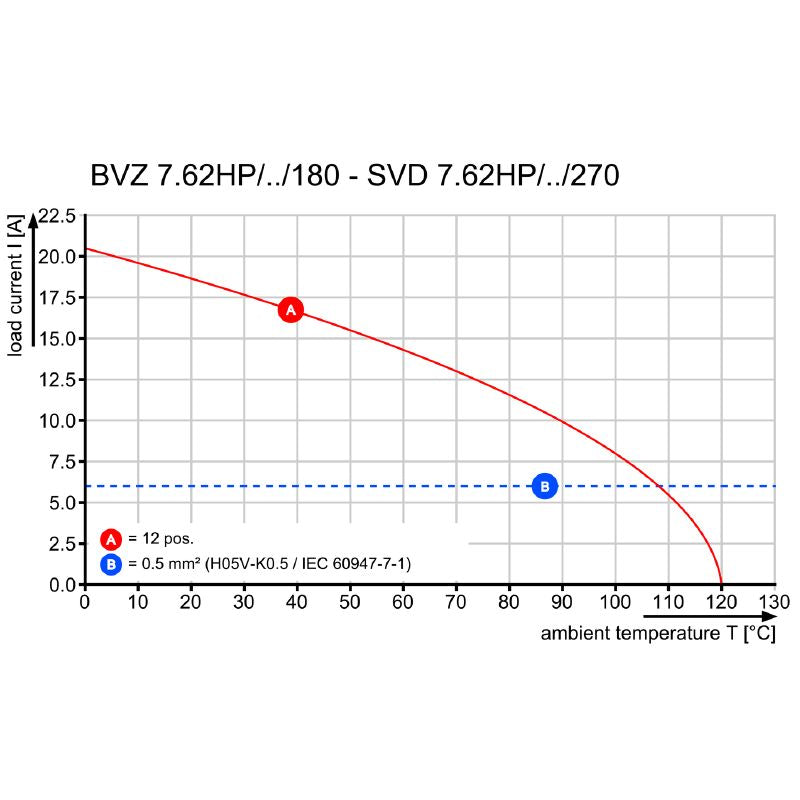

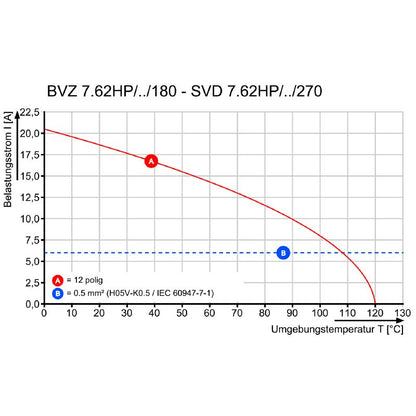

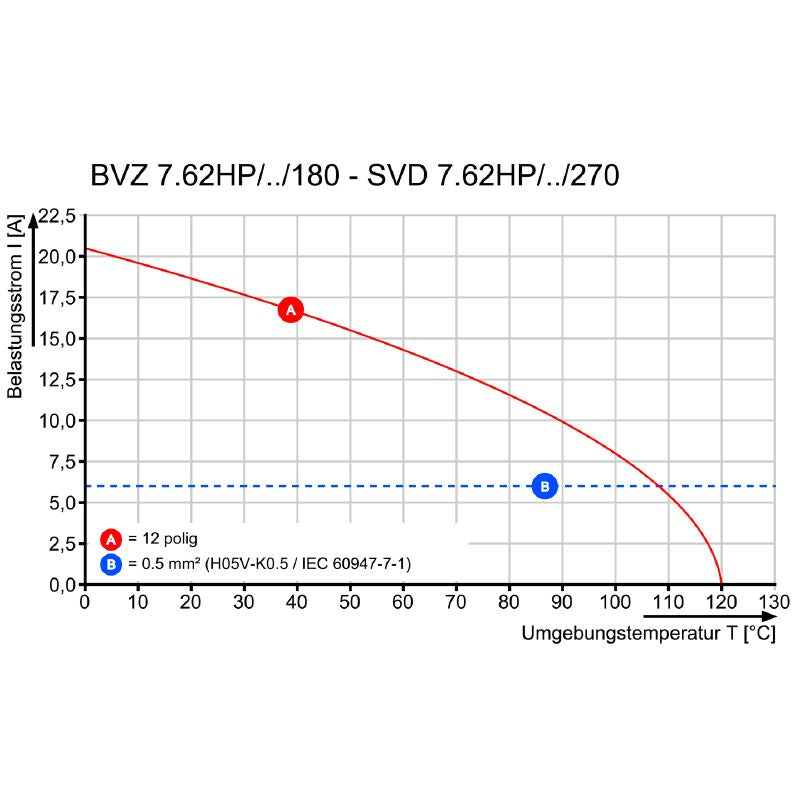

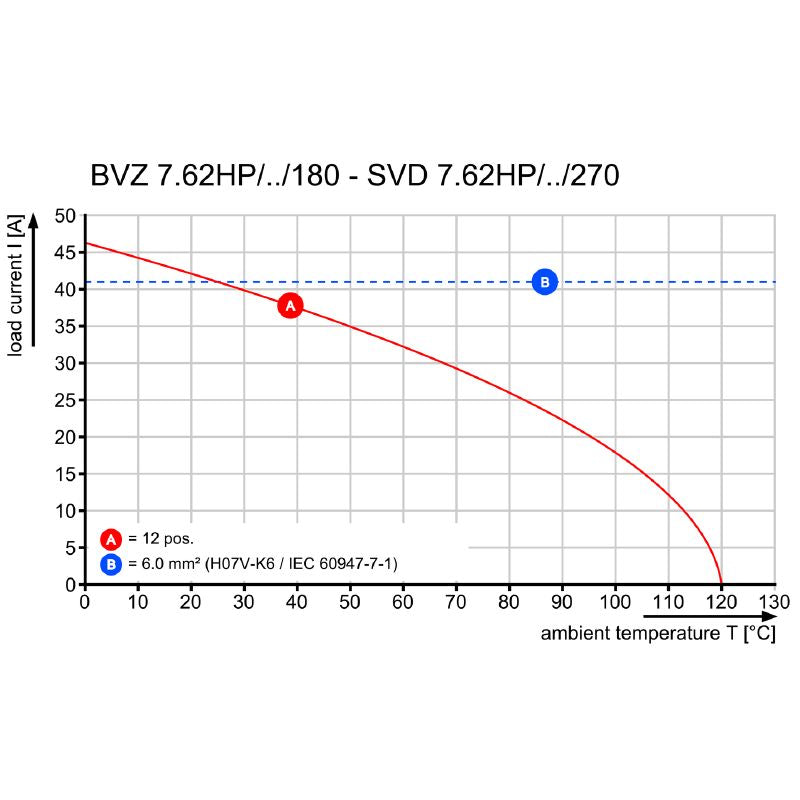

 Rated current (Tu=20°C) 47 A
 Rated voltage (pollution degree II/2) 1,000 V
 Volume resistance ≤2 mΩ
 Protection degree IP20
 Certification E60693
