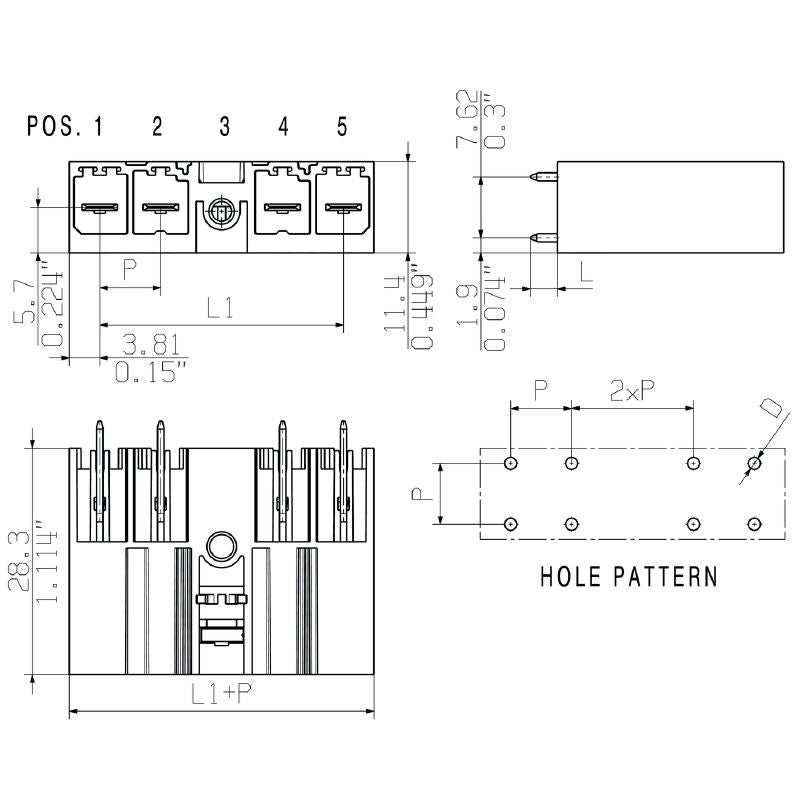

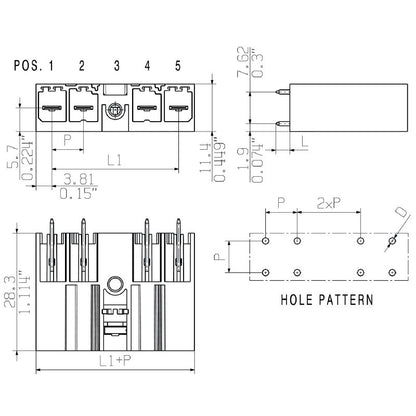

1543180000 - 7.62mm 5-Pole Black PCB Connector for THT Soldering (Pack of 36)

1543180000 - 7.62mm 5-Pole Black PCB Connector for THT Soldering (Pack of 36)

SKU: SKU: 1543180000   Download PDF

Select a Variant:
  • 1543180000 - 7.62mm 5-Pole Black PCB Connector for THT Soldering (Pack of 36)
Qty:
Regular price Now $172.90   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $172.90 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

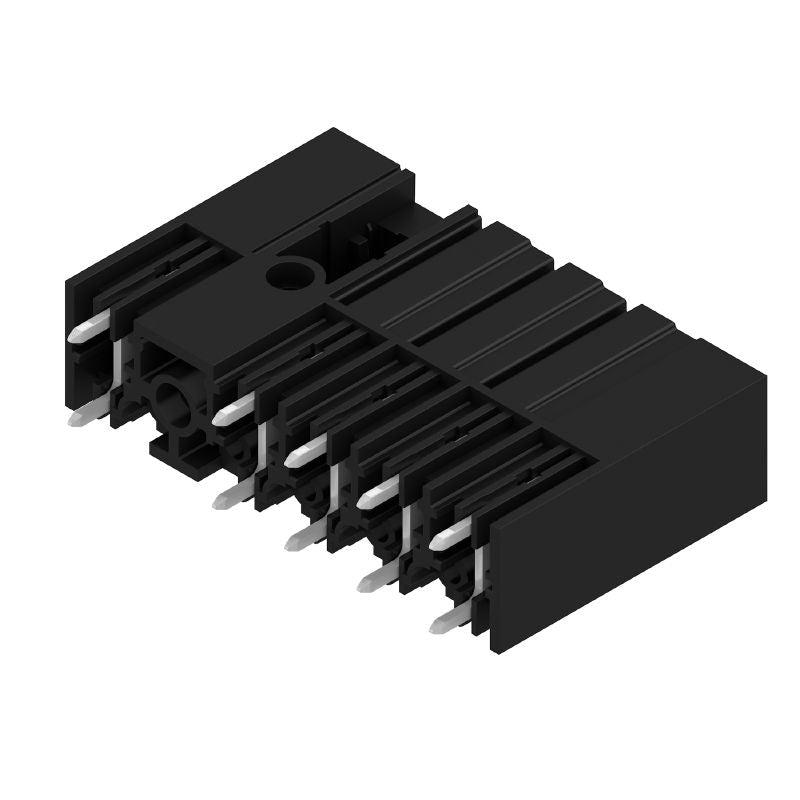

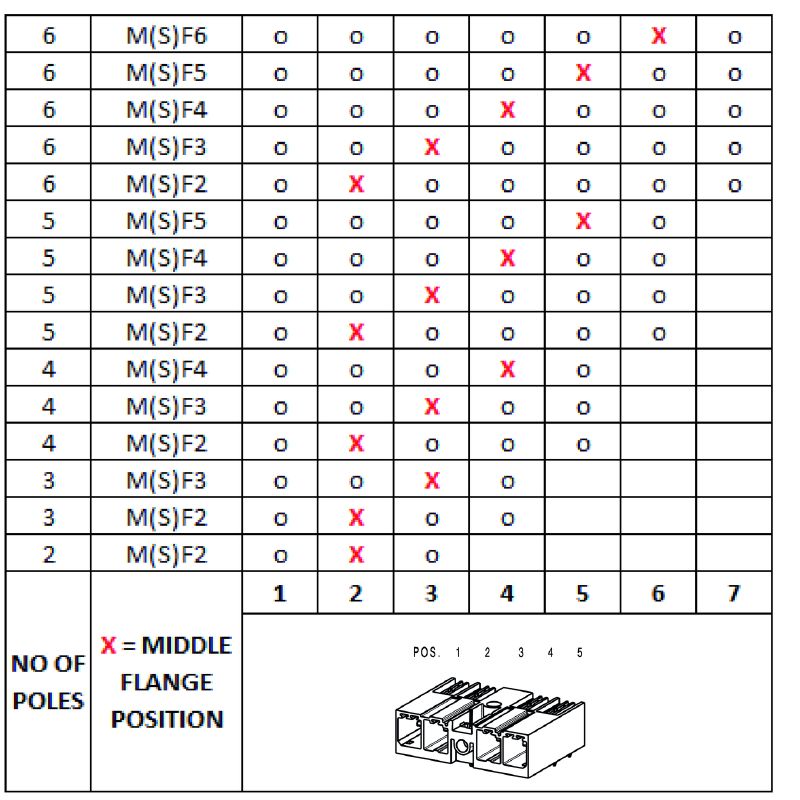

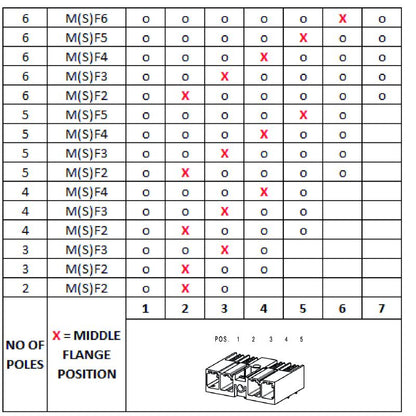

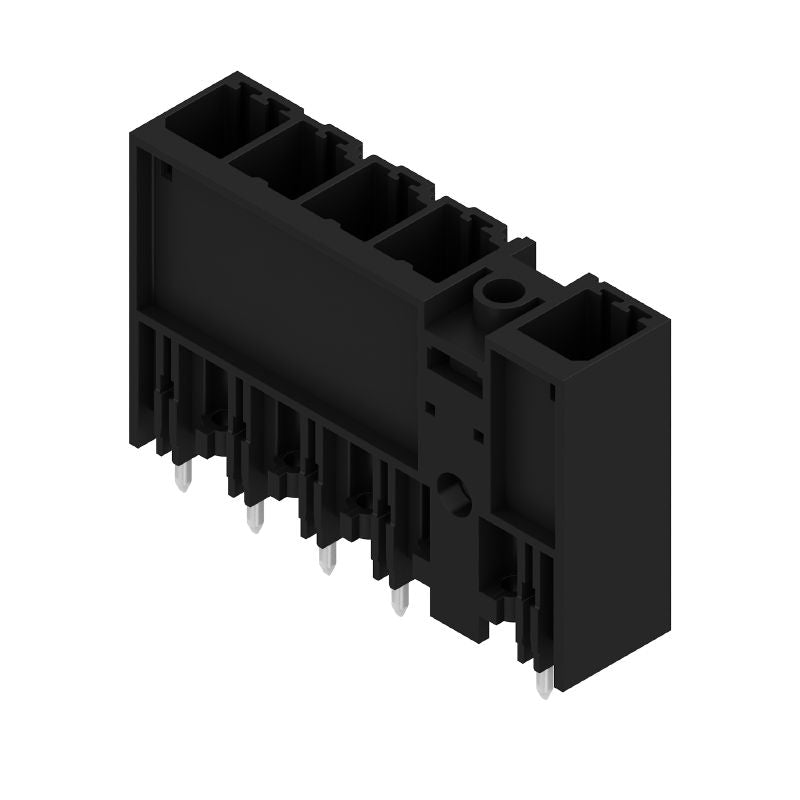

Experience reliable connectivity with the SV 762HP/05/180MF5 35SN BK BX male header PCB plug-in connector This component features a closed side design with a middle flange tailored for THT soldering applications With a 762 mm pitch, it accommodates five poles positioned at a 180° angle The tinned solder pins extend to 35 mm in length, and the entire connector is housed in a durable black casing Part of the OMNIMATE Power series, it offers robust performance for your electronic assemblies.

Features and Benefits:

    •Touch-safe design above the printed circuit board.

    •Can be coded.

    •Able to withstand up to 25 plugging cycles.

    •Environmental compliance with RoHS and no SVHC above 0.1 wt%.

    •Used for board connections in electronic applications.

Specifications:

 Depth 11.4 mm
 Height 31.8 mm
 Width 45.72 mm
 Rated voltage for surge voltage class / pollution degree II/2 1,000 V
 Rated current, min. number of poles (Tu=20°C) 57 A
 Rated current, max. number of poles (Tu=20°C) 41 A
 Operating temperature, min. -50 °C
 Operating temperature, max. 130 °C
 Protection degree IP20
 Material of insulation PA GF
 Contact material Copper alloy
 Short-time withstand current resistance 3 x 1s with 420 A
