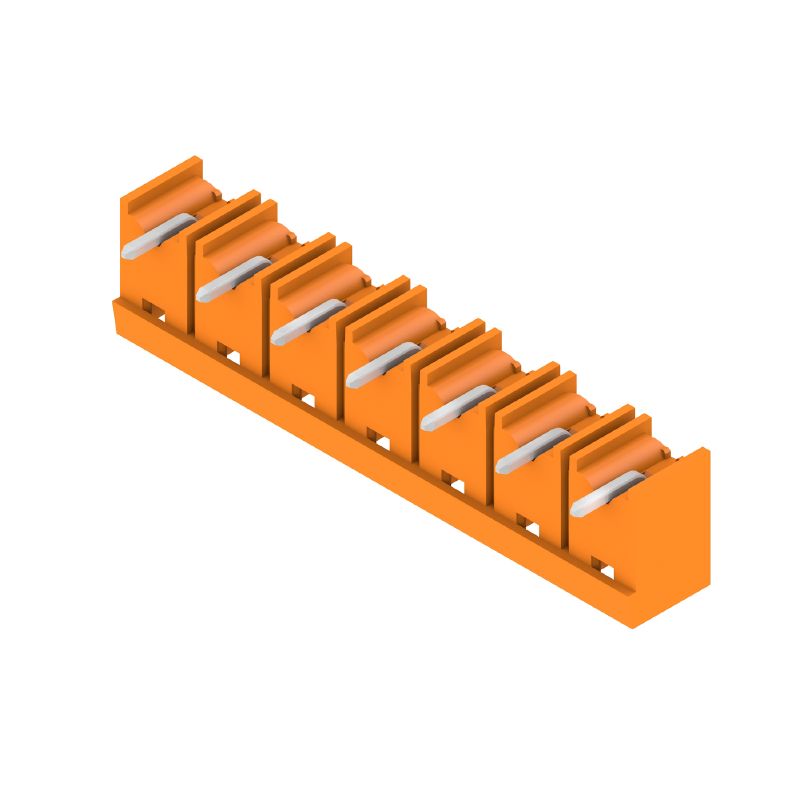

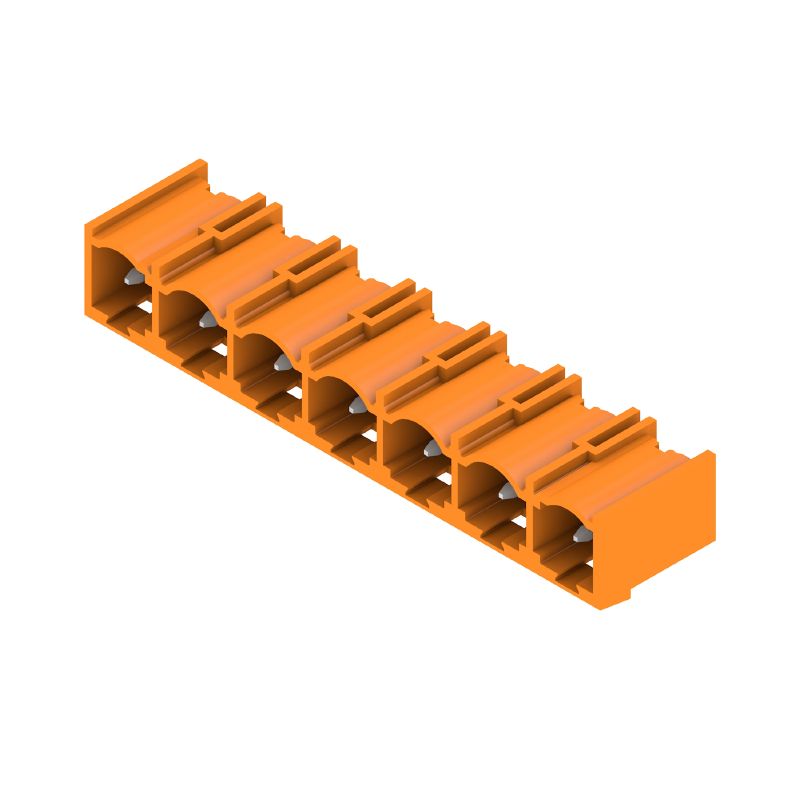

1472540000 - 7-Pole 7.62mm PCB Connector with 3.2mm Solder Pins (Pack of 50)

1472540000 - 7-Pole 7.62mm PCB Connector with 3.2mm Solder Pins (Pack of 50)

SKU: SKU: 1472540000   Download PDF

Select a Variant:
  • 1472540000 - 7-Pole 7.62mm PCB Connector with 3.2mm Solder Pins (Pack of 50)
Qty:
Regular price Now $121.86   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $121.86 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a reliable PCB plug-in connector tailored for your needs, featuring a male header design with a closed side for THT solder connections This connector boasts a 762 mm pitch and includes seven poles arranged at a 270° angle Each solder pin is 32 mm long and finished with a durable tin coating For your convenience, it comes packaged in a sturdy box, making it an efficient choice for various electronic applications.

Features and Benefits:

    •RoHS compliant.

    •Touch-safe protection according to DIN VDE standards.

    •Can be coded.

    •Durable with 25 plugging cycles.

    •Used in various electrical and electronic applications involving board connections.

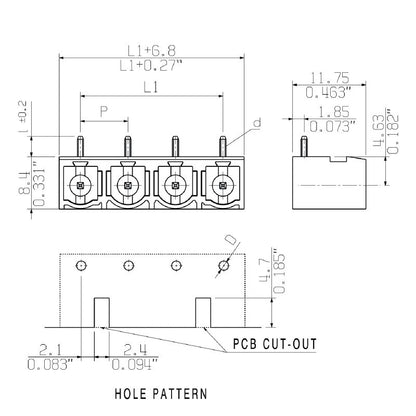

Specifications:

 Depth 11.75 mm
 Height 11.6 mm
 Width 52.52 mm
 Continuous operating temp., min. -25 °C
 Continuous operating temp., max. 100 °C
 Rated voltage for surge voltage class / pollution degree II/2 630 V
 Rated current, min. number of poles (Tu=20°C) 27.5 A
 Insulating material PA GF
 Protection degree IP10
 Solder pin dimensions 1.0 x 1.0 mm
