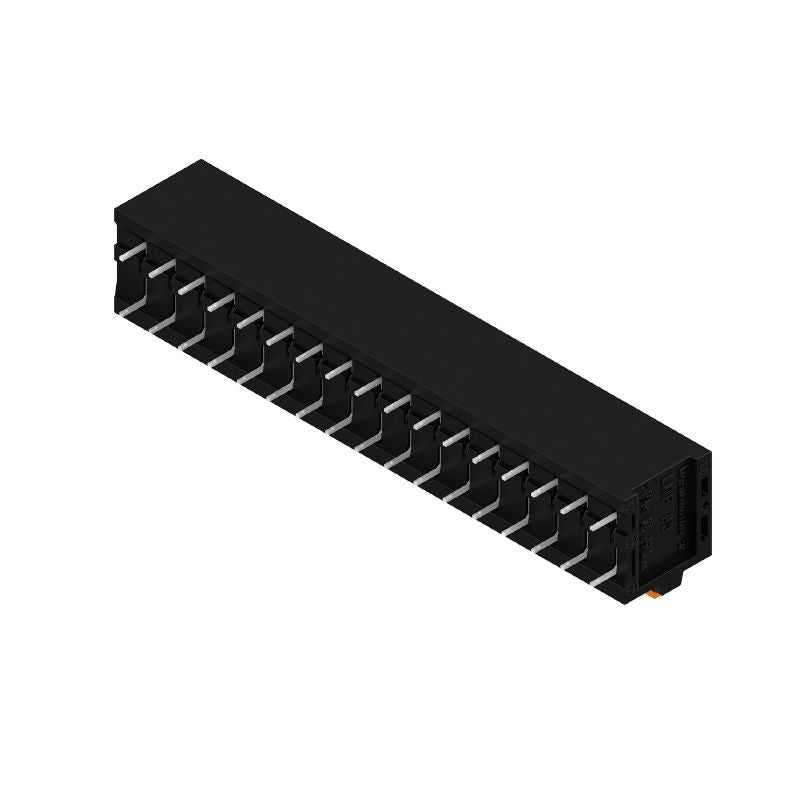

1424940000 - 17-Pole 5mm PCB Connector with 3.5mm Solder Pins (Pack of 15)

1424940000 - 17-Pole 5mm PCB Connector with 3.5mm Solder Pins (Pack of 15)

SKU: SKU: 1424940000   Download PDF

Select a Variant:
  • 1424940000 - 17-Pole 5mm PCB Connector with 3.5mm Solder Pins (Pack of 15)
Qty:
Regular price Now $106.75   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $106.75 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

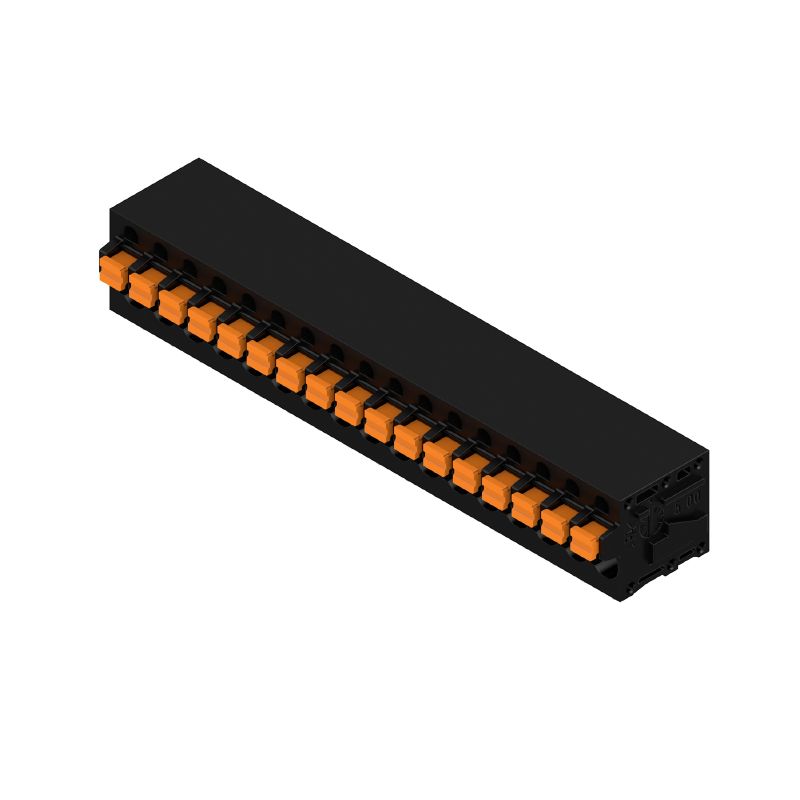

Introducing a versatile connector equipped with printed circuit board terminals, featuring a 500 mm pitch and 17 poles oriented at a precise 90° angle The solder pins boast a length of 35 mm, finished with a tinned black coating for enhanced durability This connector utilizes a user-friendly push-in mechanism with an actuator, accommodating a maximum clamping capacity of 25 mm² Each unit is conveniently packaged in a protective box.

Features and Benefits:

    •Suitable for RoHS compliance.

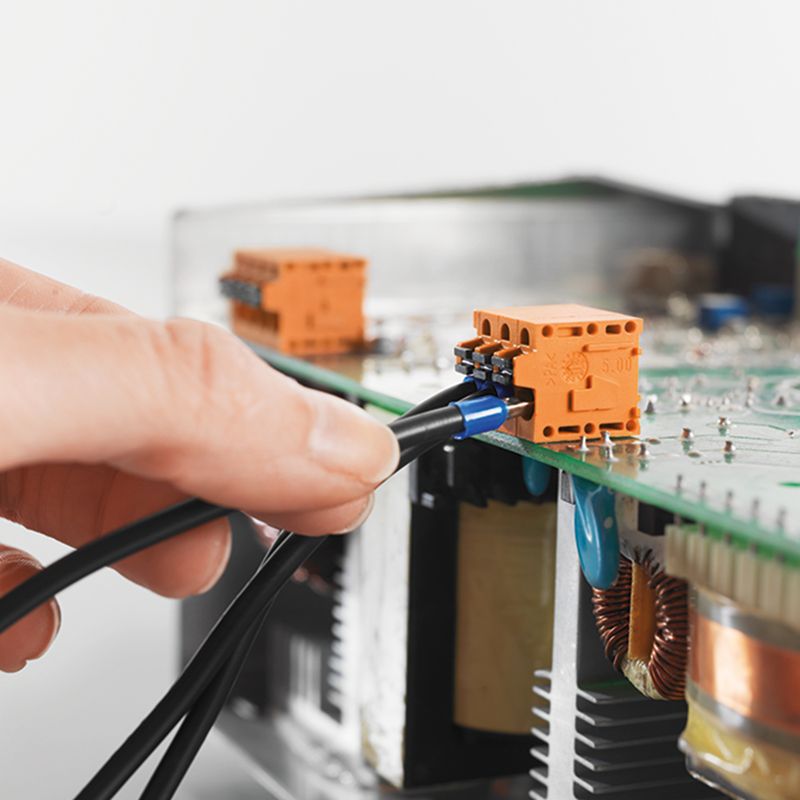

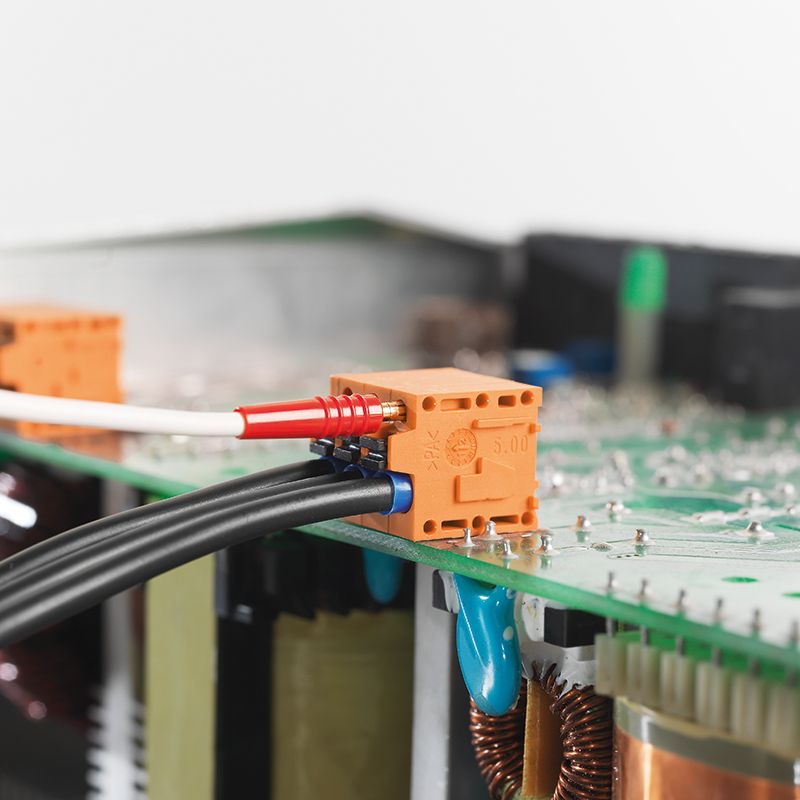

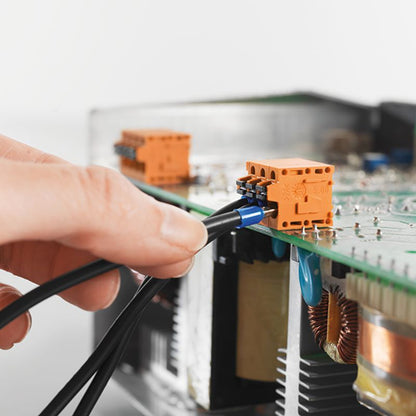

    •Push-in wire connection method with actuator.

    •Mounting via THT solder connection.

    •Touch-safe protection rating of IP 20.

    •Conformity to IEC and UL standards.

Specifications:

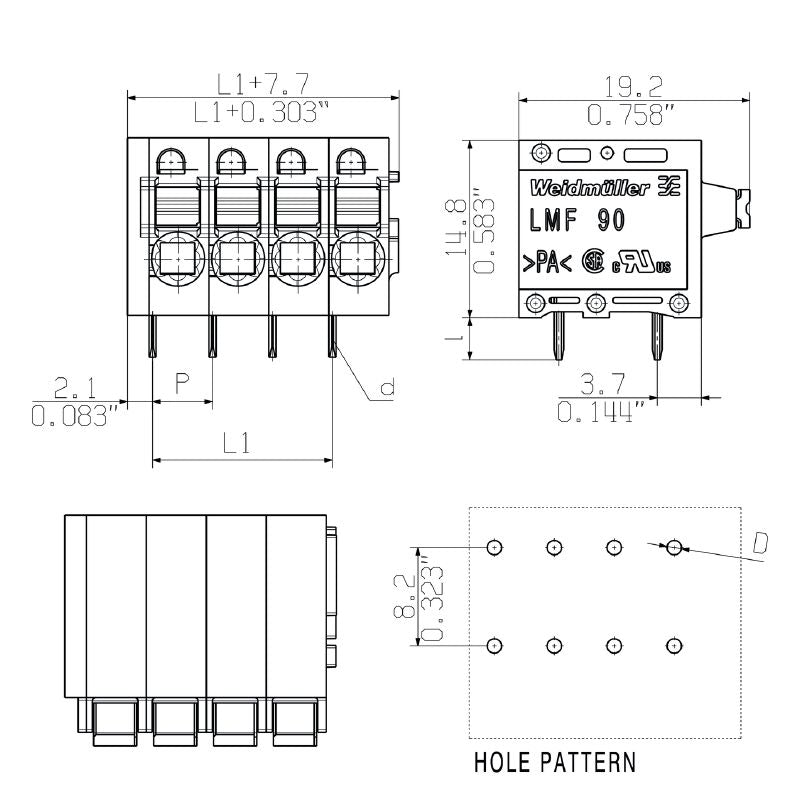

 Depth 19.2 mm
 Height 18.3 mm
 Width 87.7 mm
 Insulating material Wemid (PA)
 Rated voltage 400 V / 24 A / 0.5 - 2.5 mm²
 Net weight 24.952 g
 Solder pin dimensions 0.6 x 0.8 mm
 Clamping range, min. 0.12 mm²
 Operating temperature, min. -50 °C
 Operating temperature, max. 120 °C
