1423240000 - Yellow Polyolefin Wire Markers, 2.4-4.8mm, 13m Roll

1423240000 - Yellow Polyolefin Wire Markers, 2.4-4.8mm, 13m Roll

SKU: 1423240000 Download PDF

Variant:
  • 1423240000 - Yellow Polyolefin Wire Markers, 2.4-4.8mm, 13m Roll
Now $53.33
BEFORE   $0.00 Now $53.33
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

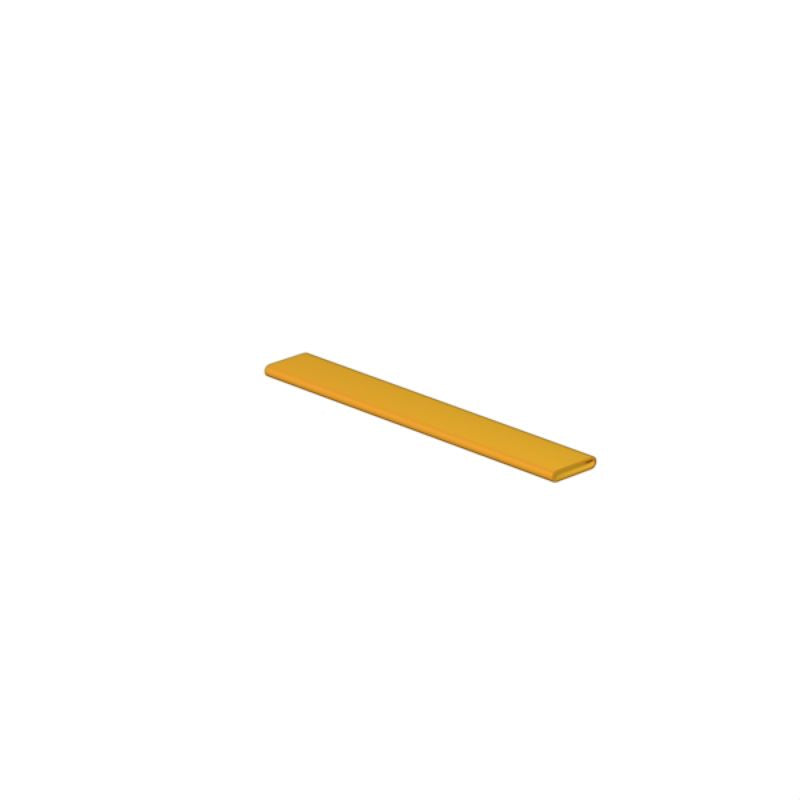

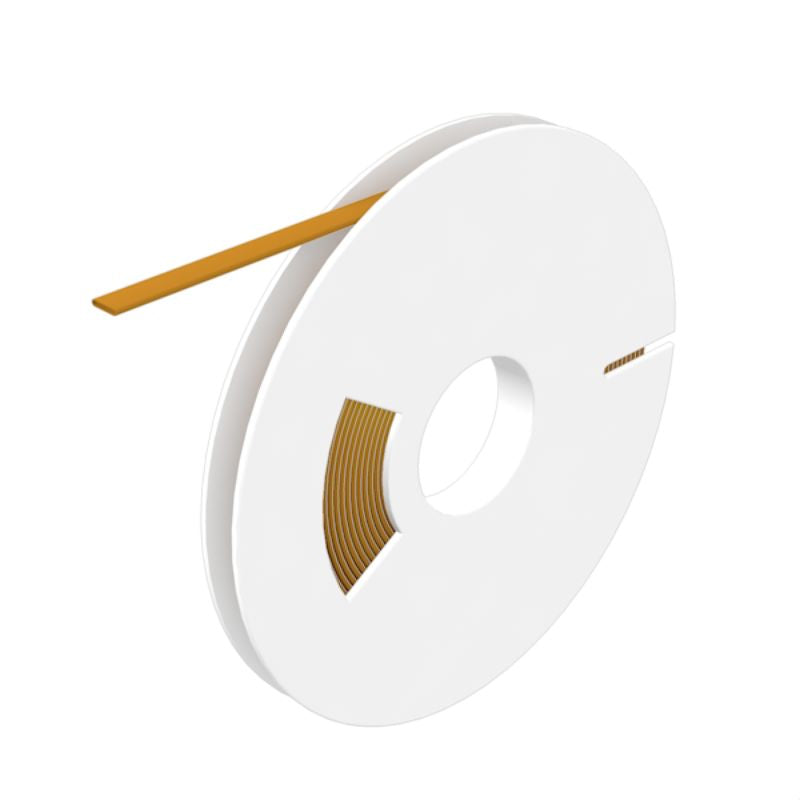

Presenting a reliable conductor and cable marker, ideal for wires with outer diameters ranging from 24 mm to 48 mm Crafted from durable polyolefin, these yellow markers are not only effective but also environmentally friendly, as they adhere to RoHS standards and are free of halogens Each roll measures 13,000 mm in length, making it perfect for a wide array of wire marking tasks.

Features and Benefits:

    •Color: yellow.

    •RoHS Compliant.

    •Halogen-free.

    •Rate of shrinkage is 2:1.

    •Recommended shrinking temperature of 90 °C.

Specifications:

 Depth (mm) 0.9
 Width (mm) 7.6
 Length (mm) 13,000
 Operating temperature range -55...105 °C
 Conductor cross-section, max 4 mm²
 Conductor cross-section, min 0.75 mm²
 Conductor O.D. max 4.8 mm
 Conductor O.D. min 2.4 mm
 Cross-section for connected wire 0.75 - 4 mm²
 Number per roll 1
