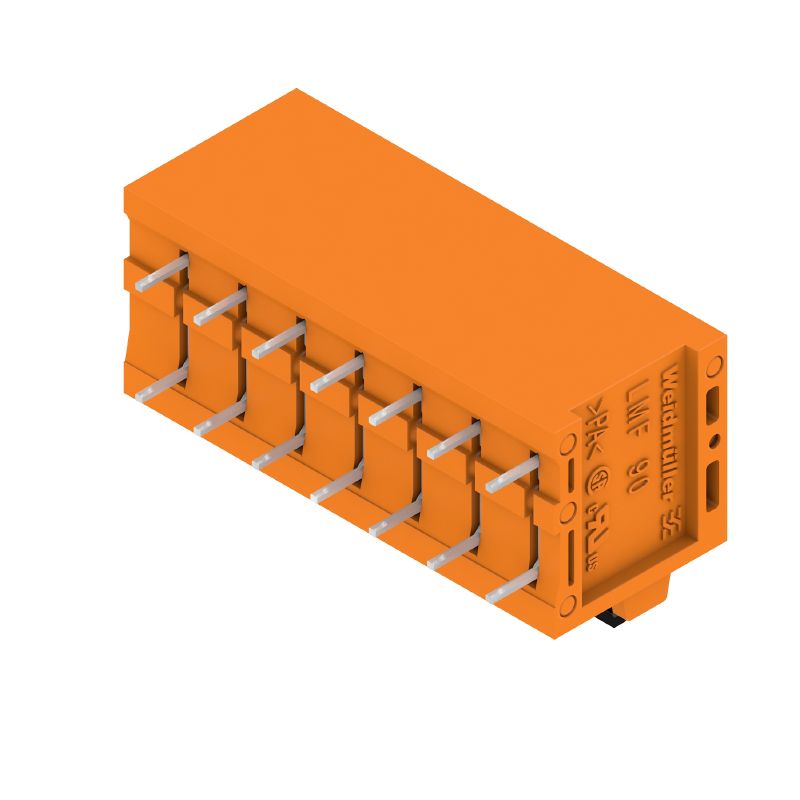

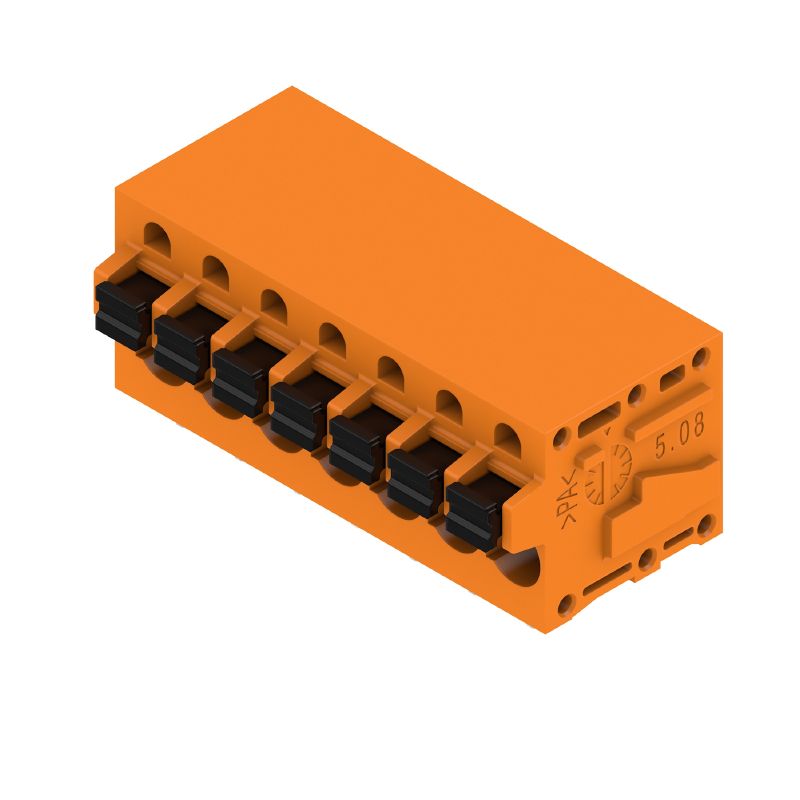

1330770000 - 5.08mm PCB Terminal, 7-Pole, 90-Degree Orientation (Pack of 40)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile terminal specifically crafted for printed circuit board applications This component boasts a 508 mm pitch and is oriented at a 90-degree angle, providing seamless integration With seven poles and a solder pin length of 35 mm, this terminal features a sleek tinned orange finish Its design supports a push-in connection method, compatible with conductor cross sections ranging from 0.

5 mm² up to 25 mm² Each unit is packaged in a box and complies with important regulations, including UL and RoHS standards, making it a reliable choice for your electronic projects.

Features and Benefits:

•Compliant with RoHS standards.

•PUSH IN wire connection method with actuator.

•Suitable for a range of conductor sizes and types.

•Compact design suitable for PCB applications.

Specifications:
