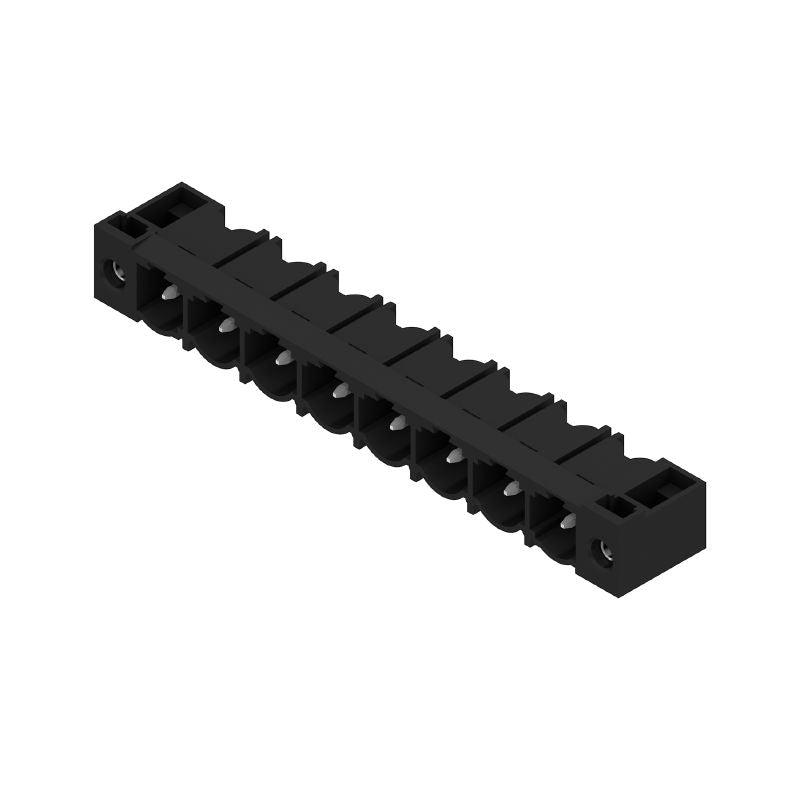

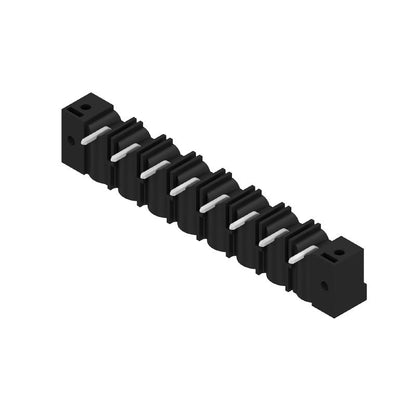

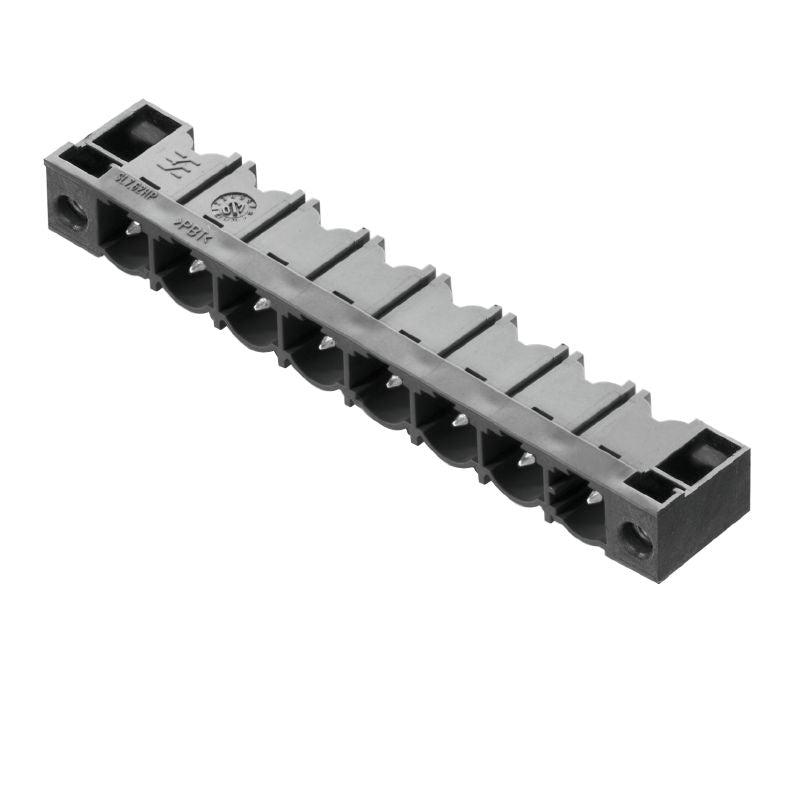

1124280000 - 8-Pole 7.62mm PCB Connector with 90° Elbow, THT Solder (Pack of 24)

1124280000 - 8-Pole 7.62mm PCB Connector with 90° Elbow, THT Solder (Pack of 24)

SKU: SKU: 1124280000   Download PDF

Select a Variant:
  • 1124280000 - 8-Pole 7.62mm PCB Connector with 90° Elbow, THT Solder (Pack of 24)
Qty:
Regular price Now $77.39   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $77.39 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Experience reliable connections with this PCB plug-in connector, featuring a male header and flange designed for THT soldering With a standard pitch of 762 mm and an elbow angle of 90 degrees, this connector accommodates 8 poles It has solder pins measuring 32 mm in length, finished with a tinned, black coating for enhanced durability Each unit is securely packaged in a box for easy distribution.

Features and Benefits:

    •Touch-safe protection according to DIN VDE 57 106.

    •Can be coded.

    •Meets RoHS compliance without any exemptions.

    •Solder pin dimensions are 1.0 x 1.0 mm.

    •Safe from finger touch when plugged.

    •Rated voltage for various pollution degrees.

    •Short-time withstand current resistance is rated at 3 x 1s with 180 A.

Specifications:

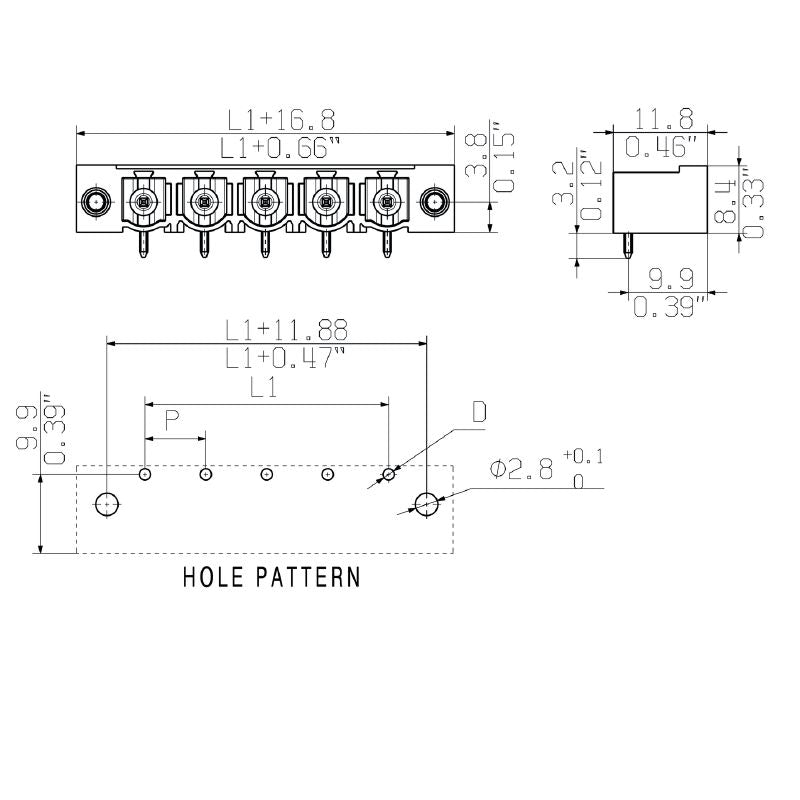

 Depth 11.8 mm
 Height 11.6 mm
 Width 69.82 mm
 Continuous operating temp., min. -25 °C
 Continuous operating temp., max. 100 °C
 Rated voltage 630 V
 Rated current 29 A
 Mounting onto the PCB THT solder connection
 Solder eyelet hole diameter (D) 1.4 mm
 Storage temperature, min. -40 °C
 Storage temperature, max. 70 °C
 Insulating material PBT
 Comparative Tracking Index (CTI) ≥ 200
 UL 94 flammability rating V-0
