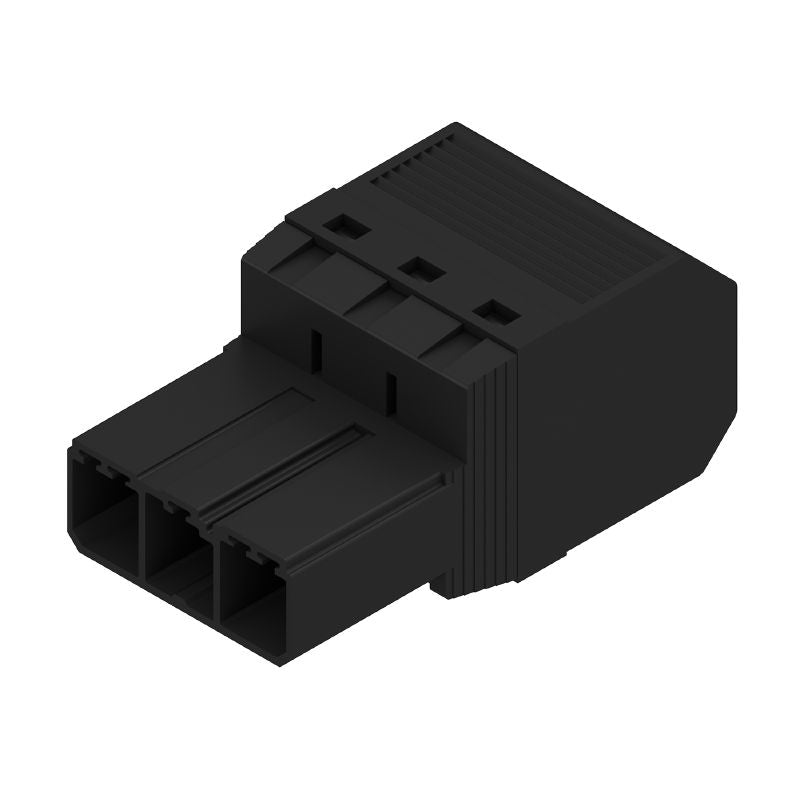

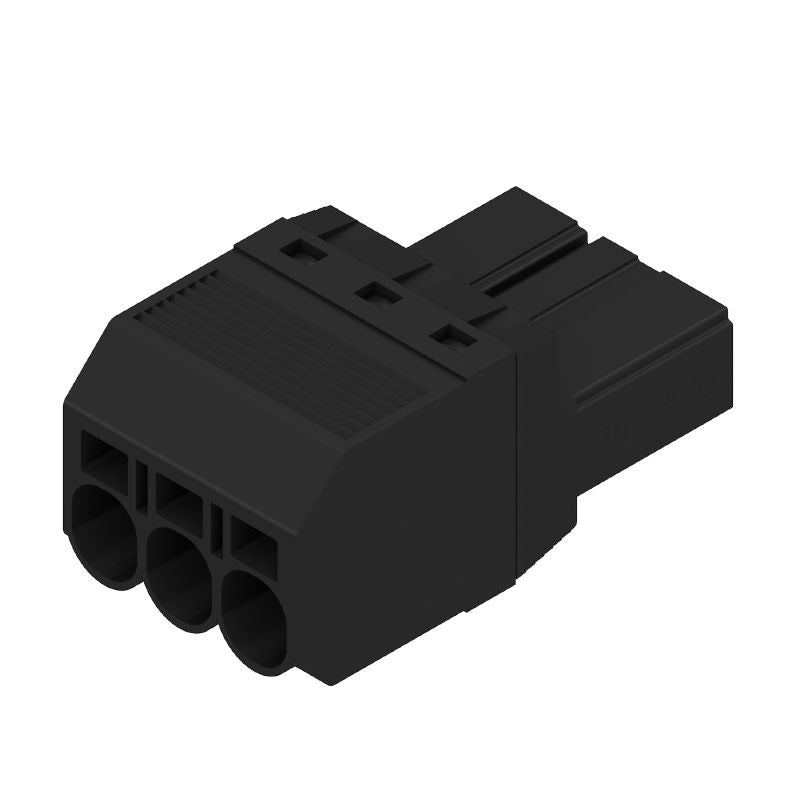

1060840000 - 7.62mm Pitch 3-Pole PCB Male Connector, 180° Angle (Pack of 65)

1060840000 - 7.62mm Pitch 3-Pole PCB Male Connector, 180° Angle (Pack of 65)

SKU: SKU: 1060840000   Download PDF

Select a Variant:
  • 1060840000 - 7.62mm Pitch 3-Pole PCB Male Connector, 180° Angle (Pack of 65)
Qty:
Regular price Now $343.94   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $343.94 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Enhance your PCB projects with this male plug connector, engineered for reliable performance With a pitch size of 762 mm and three poles set at a precise 180° angle, it features a PUSH IN connection system that operates without an actuator Enjoy secure and effortless connectivity thanks to its tension-clamp design, all housed within a protective box for added safety.

Features and Benefits:

    •Compliant with RoHS standards.

    •Touch-safe protection according to DIN VDE 57 106.

    •Can be coded for secure connections.

Specifications:

 Rated voltage (IEC) 1000 V
 Rated current (IEC) 57 A
 Clamping range 0.5 - 10 mm²
 Material PA GF
 Pitch 7.62 mm
 Protection degree IP20
 Number of poles 3
 Operating temperature (min) -50 °C
 Operating temperature (max) 125 °C
 UL certificate number E60693
