1060700000 - 7.62mm 6-Pole PCB Connector with PUSH IN Mechanism (Pack of 25)

1060700000 - 7.62mm 6-Pole PCB Connector with PUSH IN Mechanism (Pack of 25)

SKU: SKU: 1060700000   Download PDF

Select a Variant:
  • 1060700000 - 7.62mm 6-Pole PCB Connector with PUSH IN Mechanism (Pack of 25)
Qty:
Regular price Now $219.83   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $219.83 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

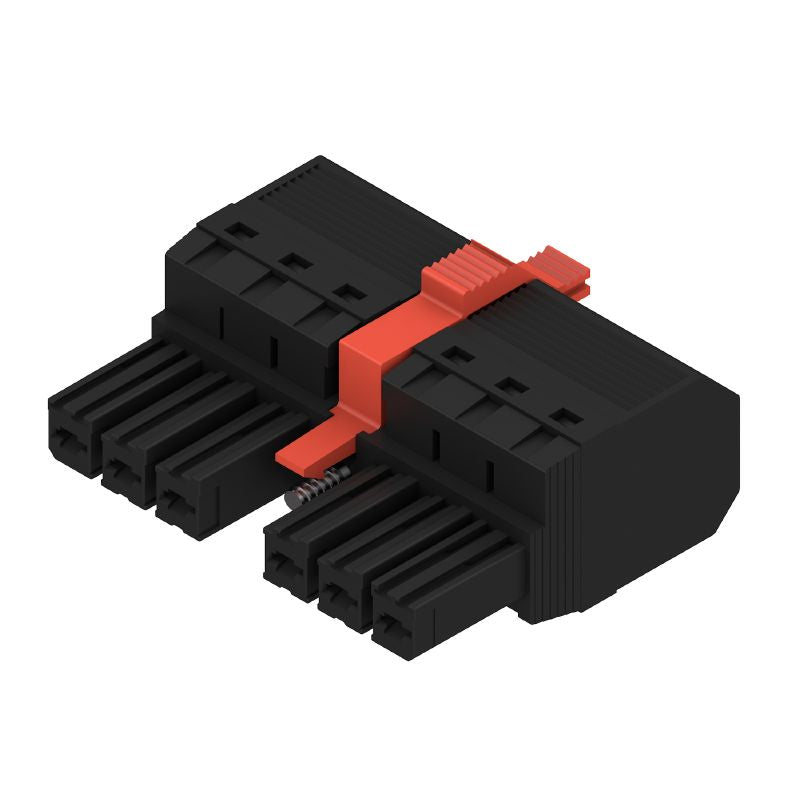

Introducing the BVF 762HP/06/180MSF4 SN BK BX, a high-performance female PCB plug-in connector This connector offers a 762 mm pitch and features a 6-pole layout with a 180° connection angle It utilizes a PUSH IN operation for effortless wire insertion, eliminating the need for an actuator The design incorporates a tension-clamp system, securely accommodating wire sizes up to a maximum of 10 mm² It is compatible with both solid and stranded conductors, catering to AWG sizes from 24 to 8, making it an ideal choice for reliable electrical connections.

Features and Benefits:

    •Safe from finger touch protection as per DIN VDE 57 106.

    •IP20 protection degree.

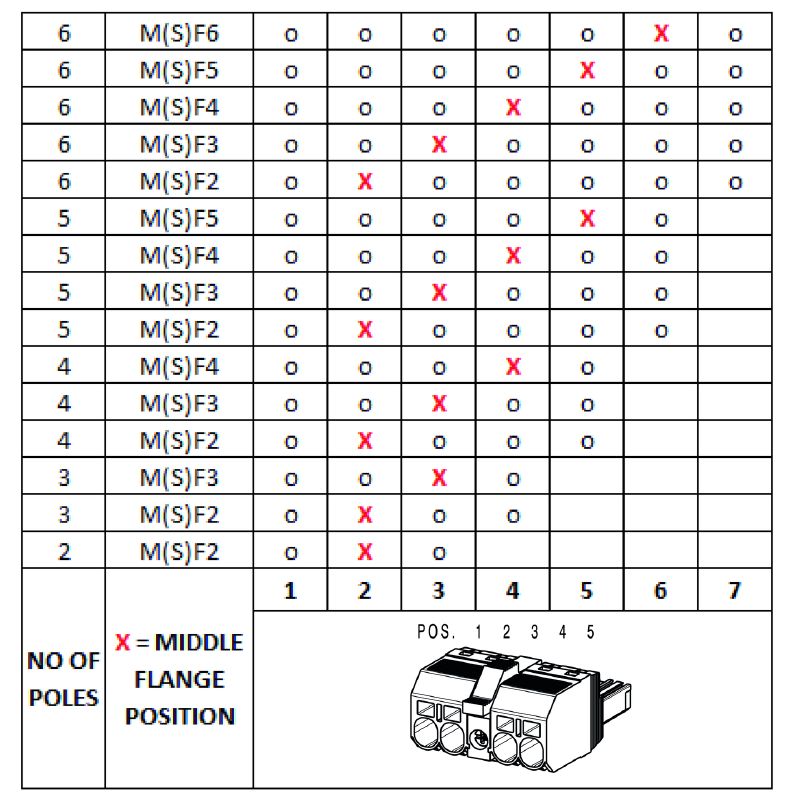

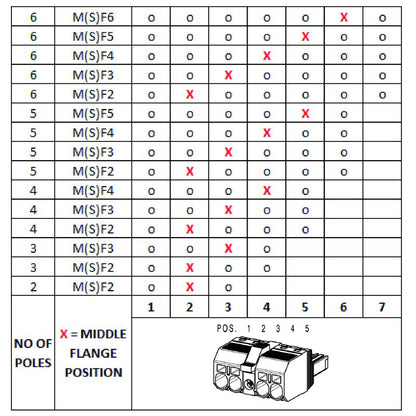

    •Can be coded to prevent incorrect connections.

    •Stable performance with a maximum plugging force of 17 N per pole.

Specifications:

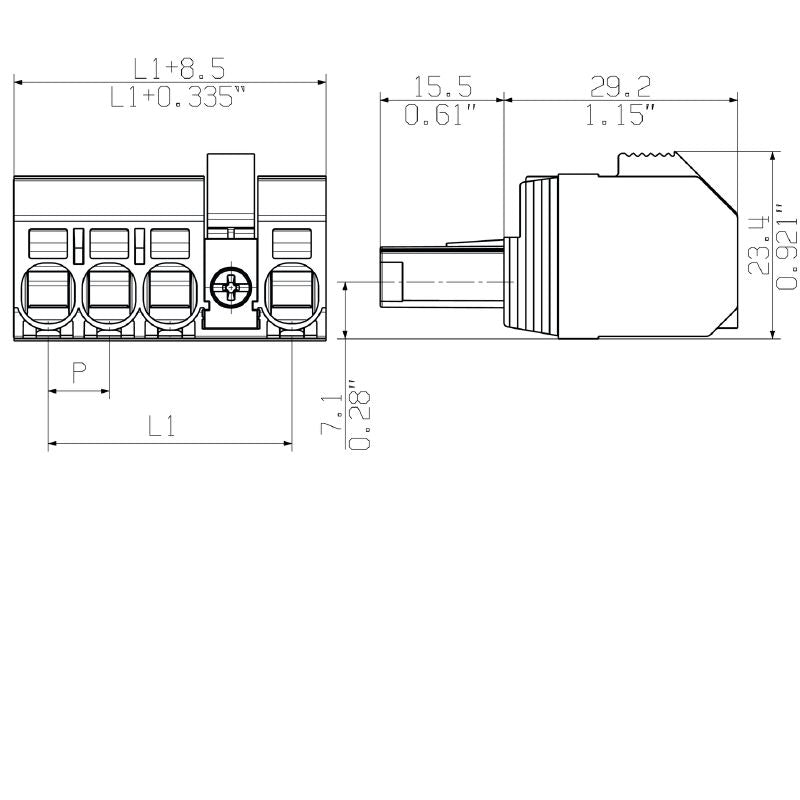

 Depth 47.7 mm
 Height 22.9 mm
 Rated Voltage 1000 V
 Rated Current 57 A
 Volume Resistance 4.50 mΩ
 Insulating Material PA GF
 Operating Temperature, min. -50 °C
 Operating Temperature, max. 125 °C
 Storage Temperature, min. -40 °C
 Storage Temperature, max. 70 °C
 Pitch 7.62 mm
 Number of Poles 6
 Screwdriver Blade Size 0.6 x 3.5
 Plugging Cycles 25
